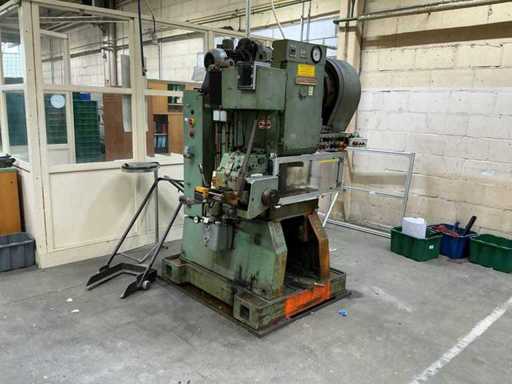

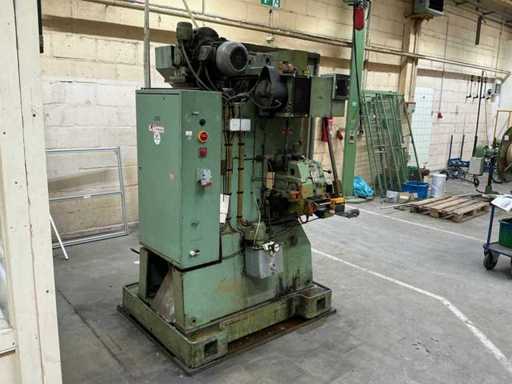

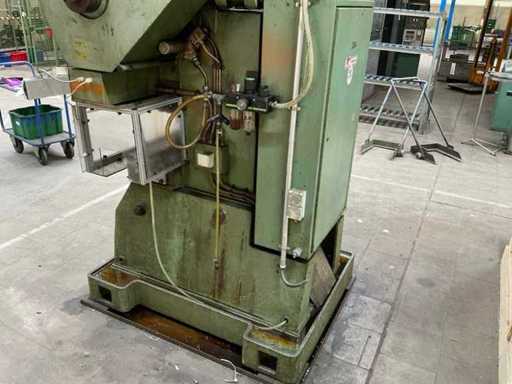

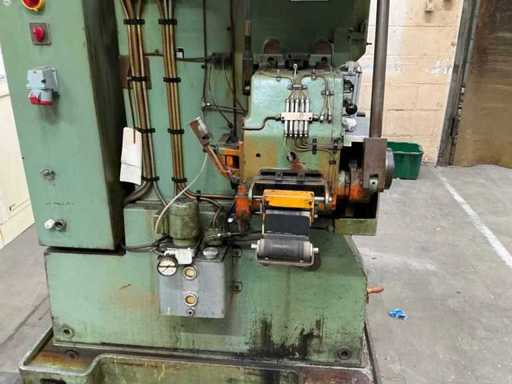

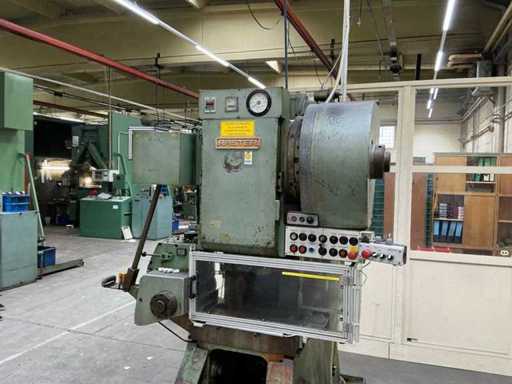

RASTER - HR25 SL - High-speed punching machine
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- RASTER
- Type
- HR25 SL
- Year of build
- 1969
- Serial number
- 125
- Capacity .
- 25t
- Punching speed
- 6001/min
- Max. plate size l
- 550mm
- Max. plate size w
- 315mm
- Machine weight
- 3200kg
- Dimension l
- 1420mm
- Dimension w
- 1900mm
- Dimension h
- 2100mm
- Terms of delivery
- Ex foundation-unpackaged
Description
Technical data

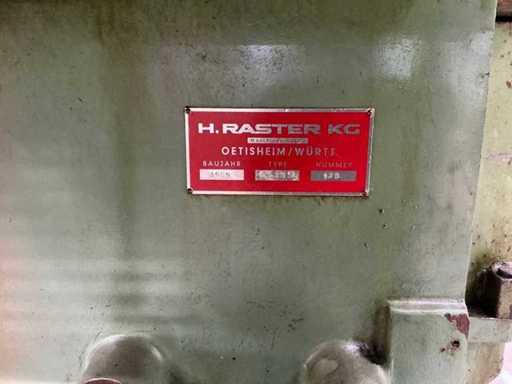

Manufacturer: H. Raster KG, Oetisheim/WürttembergModel: HR 25-SL
Machine Type: High-speed punching machine / eccentric press
Year of Make: 1969
Serial Number: 125
Press force: 25 t

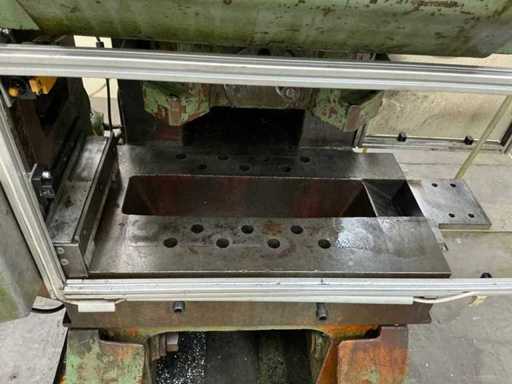

Table size: 550 x 315 mm
Max. sheet width: 100 mm
Feed length: 0–150 mm
Stroke adjustment: 8–36 mm
Plunger adjustment: 70 mm
Projection: 150 mm
Stroke rate: 120–600 stroke/min
Drive power: 6.5 hp
Machine weight: approx. 3,200 kg
Configuration

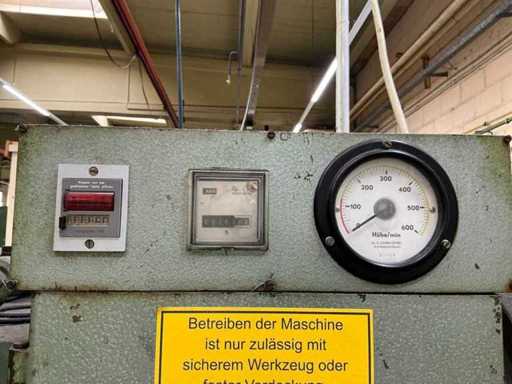

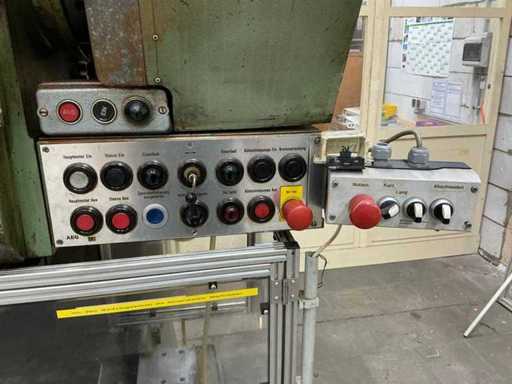

Electric control panelStroke rate indicator (stroke/min)
Hour meter

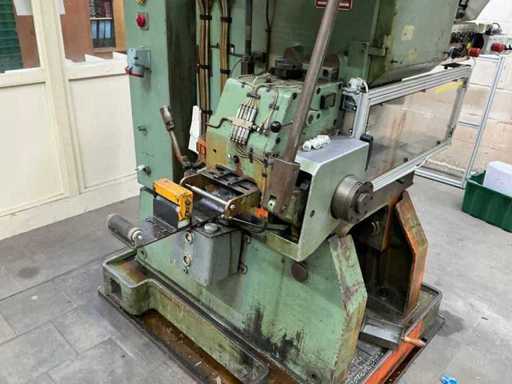

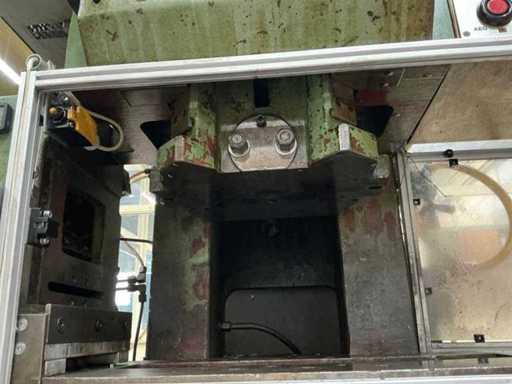

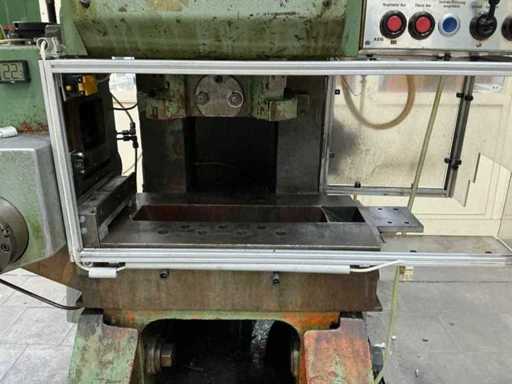

Protective cover in the work area

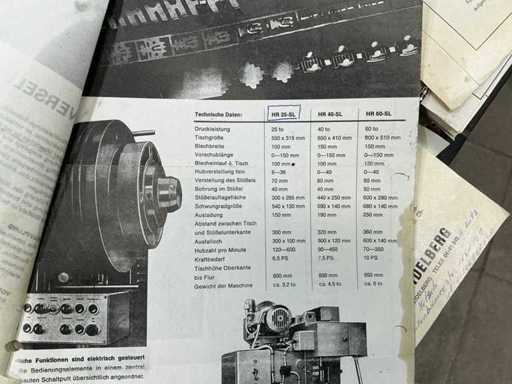

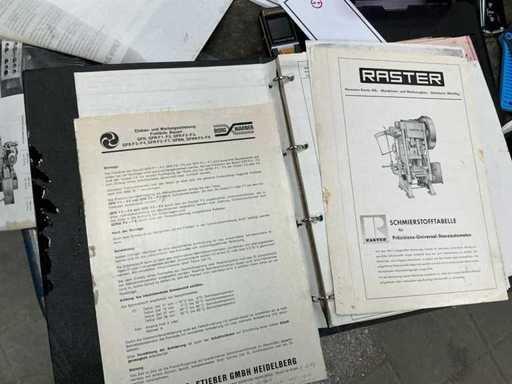

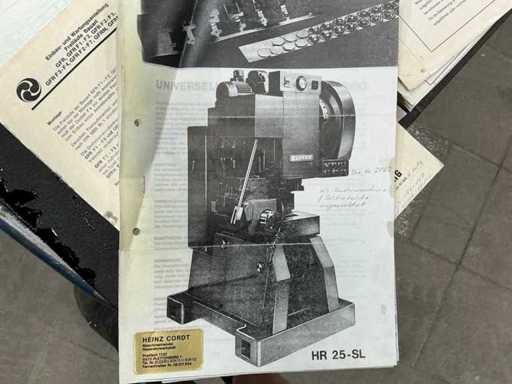

Documentation/operating documents available
Remarks
Viewing desired
Please note that lubricants and the like must also be picked up with the purchase of the item (there may be operating fluids / dirt in the machines).
Please note that lubricants and the like must also be picked up with the purchase of the item (there may be operating fluids / dirt in the machines).
Additional details
The offer is valid from the foundation, all lubricants, impurities and foreign articles must be removed and disposed of by the buyer if necessary.
Forklift with a load capacity of 1.5 t is available on site.
