PFAUDLER - 2019 - BE4800 - Enamelled formulation tank
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- PFAUDLER
- Type
- BE4800
- Year of build
- 2019

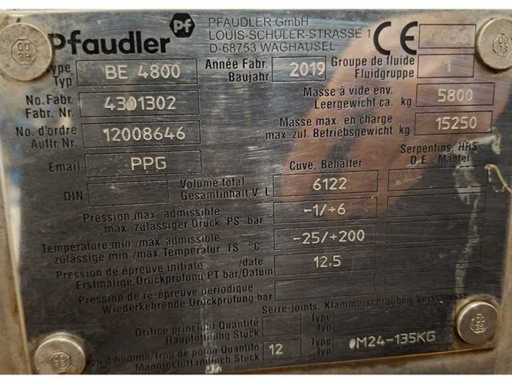

- Serial number
- 4301302
Description

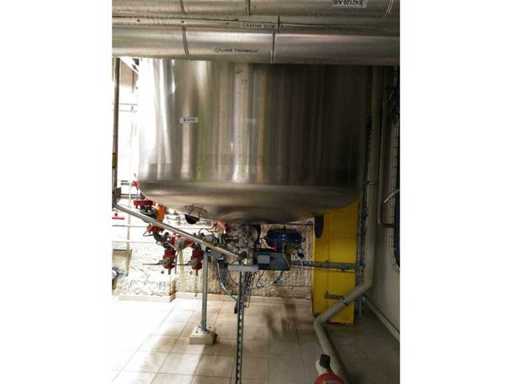

Enamelled mixing tank, volume 4800L, of premium quality, ideal for the formulation / preparation of mixtures in corrosive environments. Email in excellent condition (has been little used, and as a mother juice recipe from a spinner).
Configuration:
- Max. operating pressure PS -1/+6 Bar.
- Max. operating temperature TS -25/+200 °C.

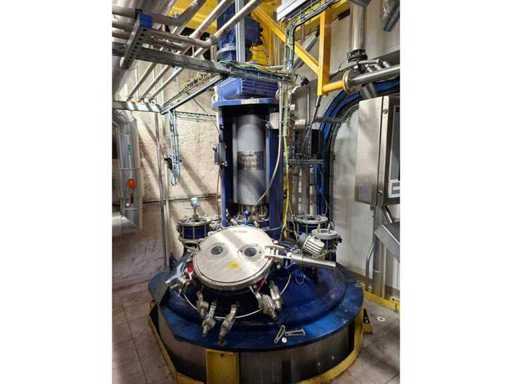

- CRYO-LOCK* agitator, with 2 levels of TBX type turbines, ∅ 760 mm (4 blades).
- 2 beavertail counter-blades, one of which incorporates a temperature
probe - Mechanical seal with Interseal Dry9000 lip seals. Nitrogen
lubrication - Foamglas® insulation (superior quality), stainless steel welded shell. So chargeable as is on cradles.
- Enamel condition: excellent. PPG PHARMAGLASS premium "light blue" special enamel**.
The set includes the equipment file and a second spare stirring shaft (spare part) Cryo-Lock total length 3949mm in 2 levels with stirring head diam.100mm
Plans and technical details, see attached
documents
Configuration:
- Max. operating pressure PS -1/+6 Bar.
- Max. operating temperature TS -25/+200 °C.
- CRYO-LOCK* agitator, with 2 levels of TBX type turbines, ∅ 760 mm (4 blades).
- 2 beavertail counter-blades, one of which incorporates a temperature
probe - Mechanical seal with Interseal Dry9000 lip seals. Nitrogen
lubrication - Foamglas® insulation (superior quality), stainless steel welded shell. So chargeable as is on cradles.
- Enamel condition: excellent. PPG PHARMAGLASS premium "light blue" special enamel**.
The set includes the equipment file and a second spare stirring shaft (spare part) Cryo-Lock total length 3949mm in 2 levels with stirring head diam.100mm
Plans and technical details, see attached
documents
Remarks
* The shaft is cooled with liquid nitrogen for the insertion of the blade modules. Once cooling is complete, the shaft expands and the blade module locks.
** Advantage of "light blue" enamel over white enamel (manufacturer information): does not absorb light inside the device:
• Allows visual detection of white films of product residues in the tank during the cleaning phase.
• Better resistance in alkaline environments (longer life per acid/base cycle).
• No heavy metals in PPG enamel, making it ideal for FDA applications.
• Low
roughness (Ra)
** Advantage of "light blue" enamel over white enamel (manufacturer information): does not absorb light inside the device:
• Allows visual detection of white films of product residues in the tank during the cleaning phase.
• Better resistance in alkaline environments (longer life per acid/base cycle).
• No heavy metals in PPG enamel, making it ideal for FDA applications.
• Low
roughness (Ra)
Additional details
⚠️ ATTENTION, s’il vous plaît !
Merci de lire les conditions particulières de vente.
Des visites sont possibles mais sur rendez-vous OBLIGATOIRE auprès de: info@r-t.fr
Les enlèvements se feront obligatoirement sur rendez-vous du 25 juin au 15 Juillet.
Un coût de démontage, d'emballage (mise sur palette avec film plastique ou mise en carton), de mise à disposition avec chargement sur véhicule adapté sera imposé et le prix de la prestation sera visible sur chaque lot (Coûts supplémentaires).
➡️ Sans prise de rendez-vous, aucun matériel ne pourra être délivré sur site.
➡️ Les enlèvements ne pourront se faire qu’avec des véhicules adaptés.
Avant de réserver le transport, veuillez confirmer les caractéristiques finales auprès du vendeur.
Si vous souhaitez obtenir un devis d’emballage et de transport, veuillez contacter la société JMA-EXPRESS : auction@jma-express.com
