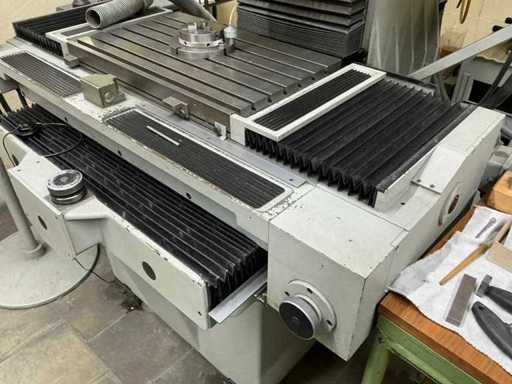

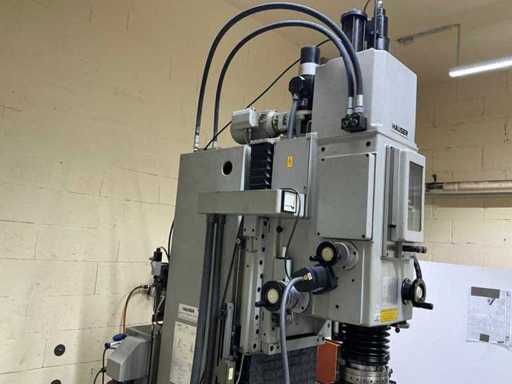

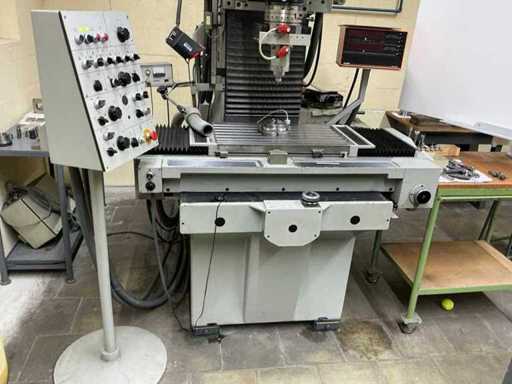

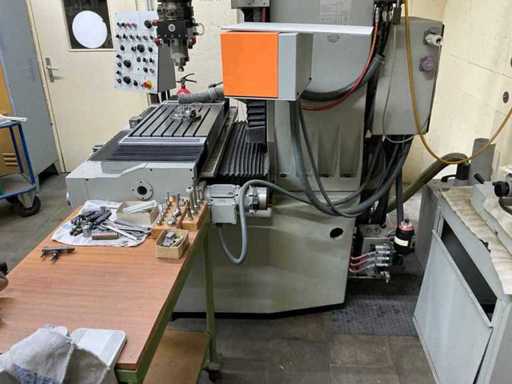

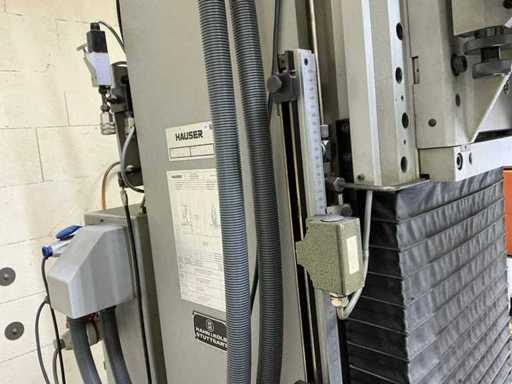

HAUSER - S3 DR - Coordinate Grinding Machine
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HAUSER
- Type
- S3 DR
- Serial number
- 0171
- Speed from n=
- 9000rpm
- Speed till n=
- 76000rpm
- Manual present
- Yes
- Terms of delivery
- Ex foundation-unpackaged
Description
Technical data

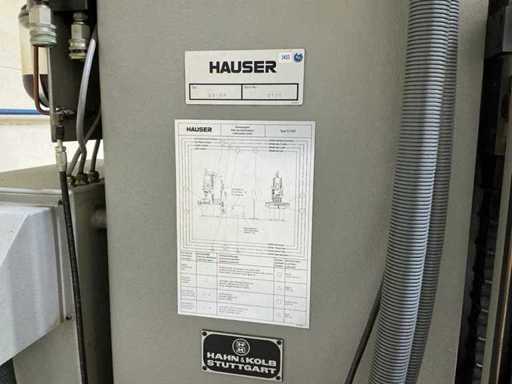

Manufacturer: HousesModel: S3 DR
Serial Number: 0171
Adjustment range X/Y: 400 x 250 mm

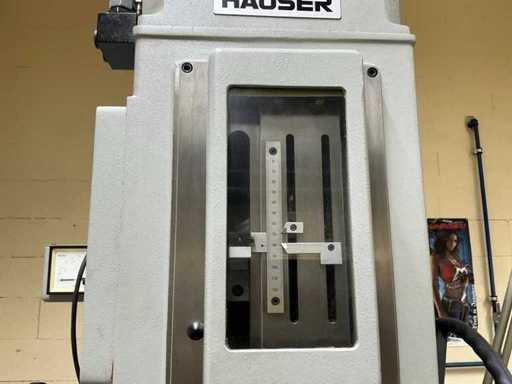

Vertical adjustment (W): 450 mm
Table surface: 600 x 380 mm
Max. table load: 300 kg
Spindle diameter: 100 mm

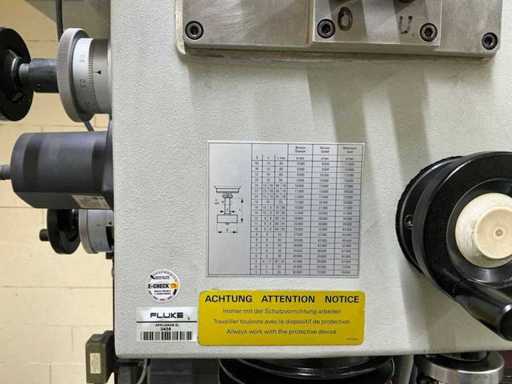

Spindle speed: 9,000–80,000 min⁻¹

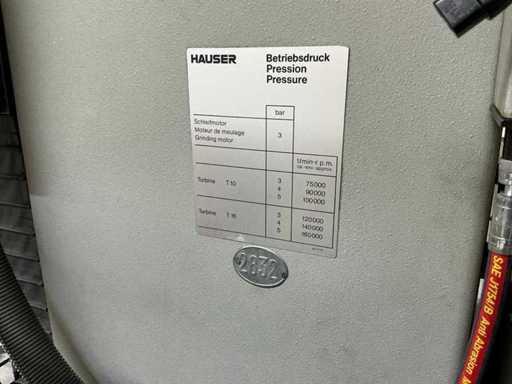

Turbine speed: 100,000–160,000 rpm⁻¹
Stroke Z: max. 120 mm

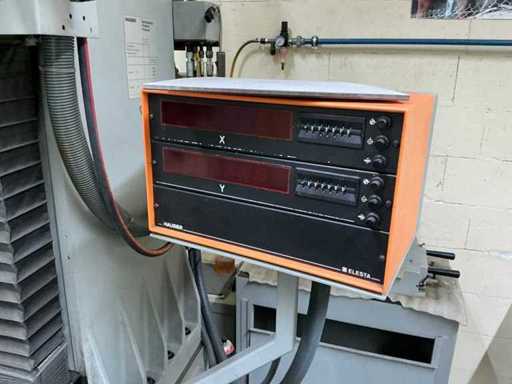

Measuring System Resolution: 0.001 mm

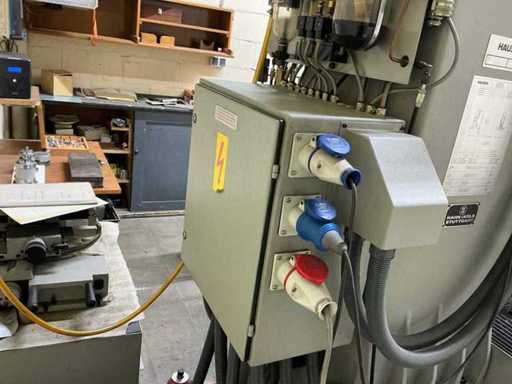

Installed power: 6.5 kW

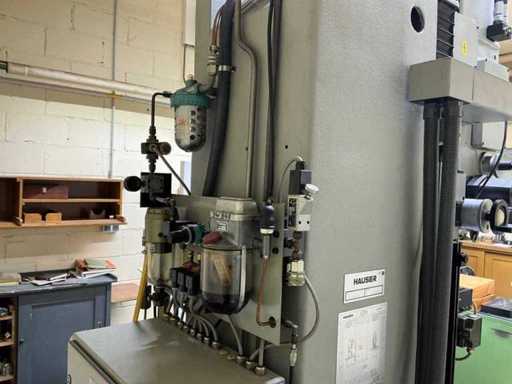

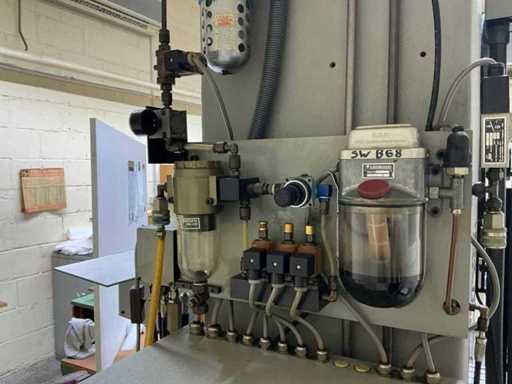

Air requirement: approx. 12 m³/h
Mains pressure: 5 bar
Machine weight: 2800 kg
Configuration

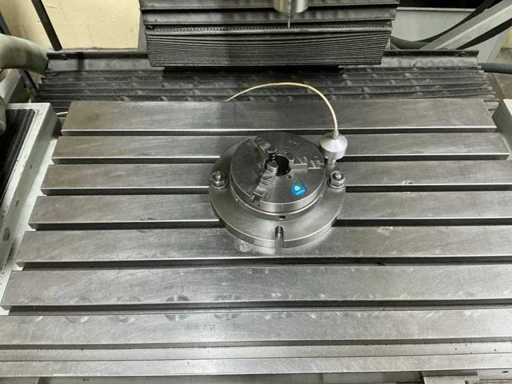

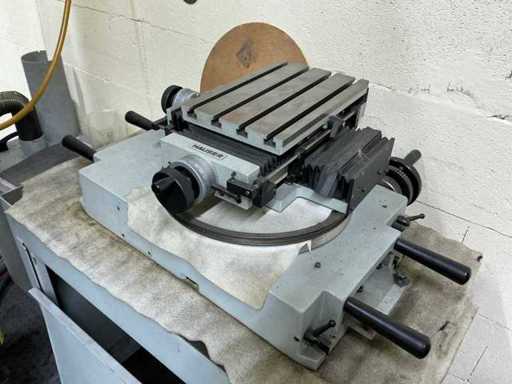

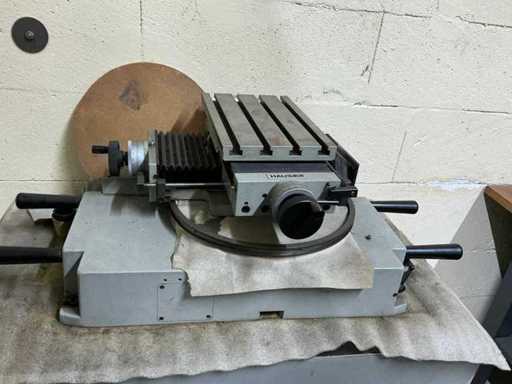

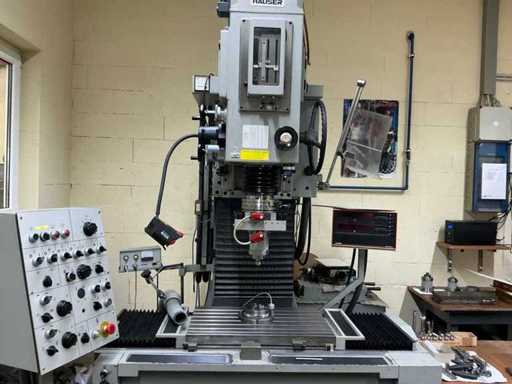

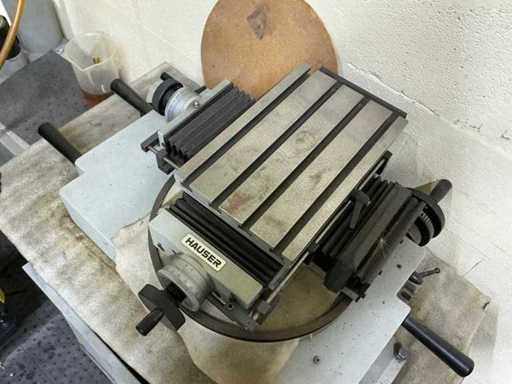

Coordinate grinding machine Hauser S3 DRCoordinate measuring table 270 x 175 mm

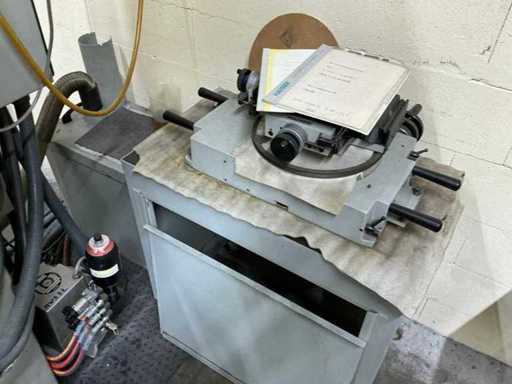

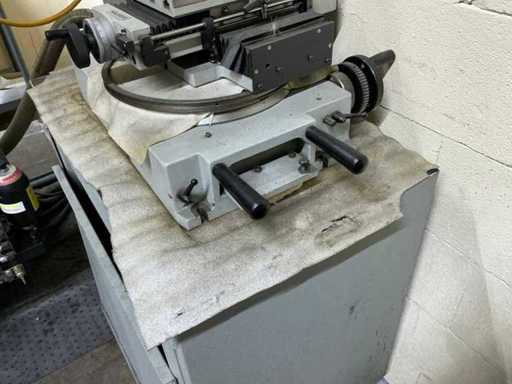

Rotary table Ø 300 mm with optical measuring system

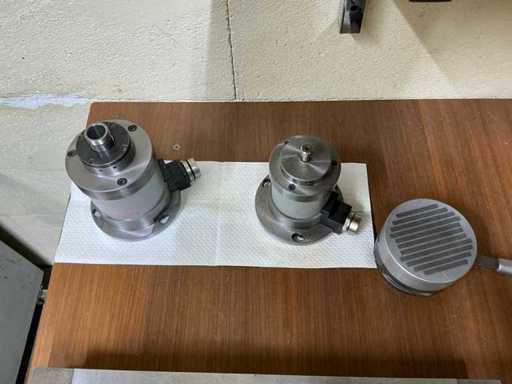

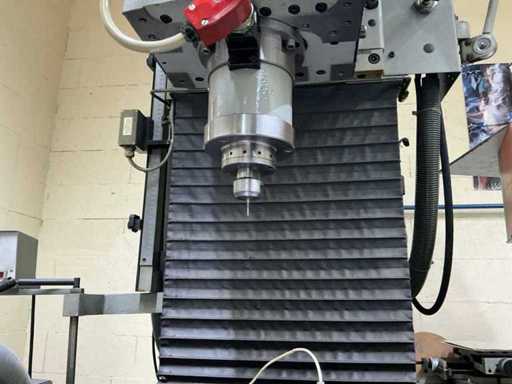

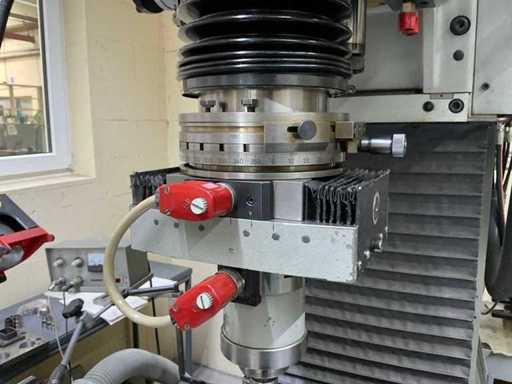

Various grinding spindles

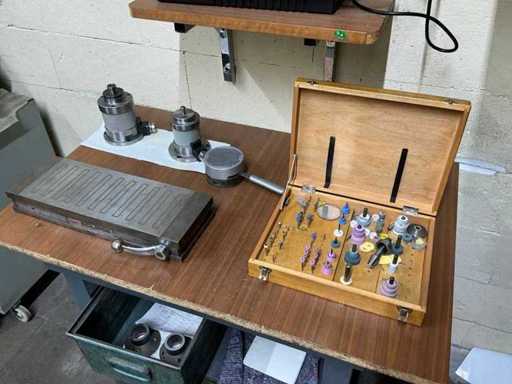

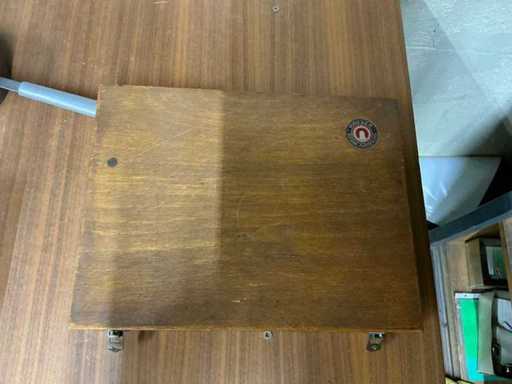

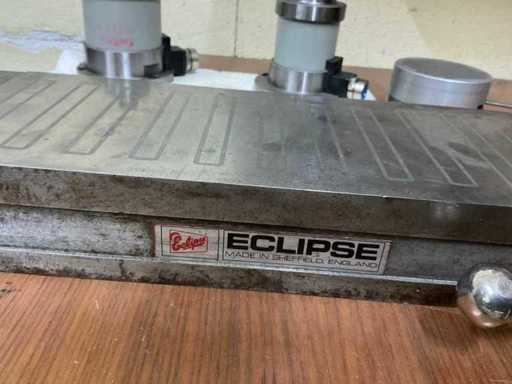

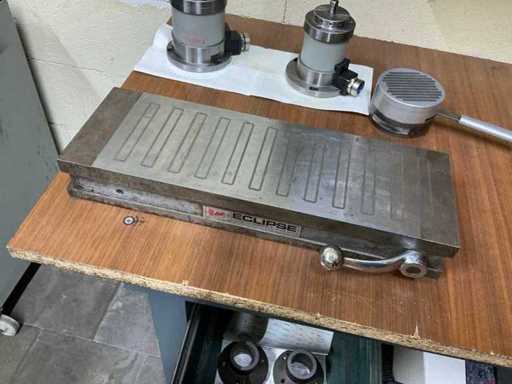

Magnetic clamping plate

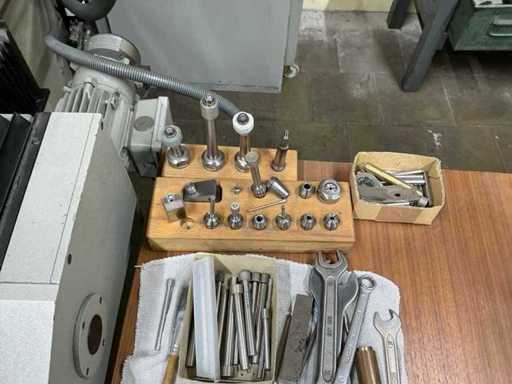

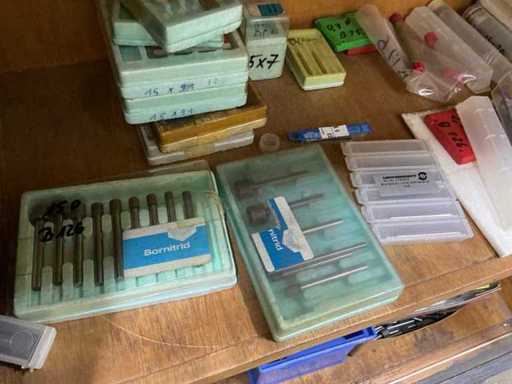

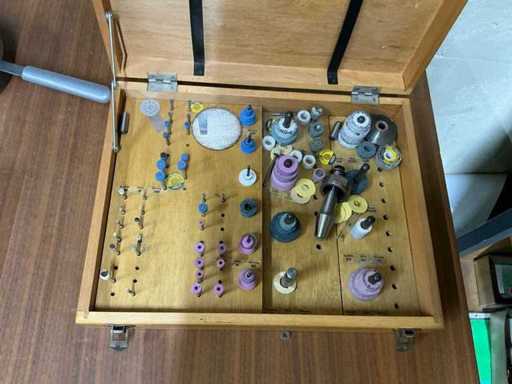

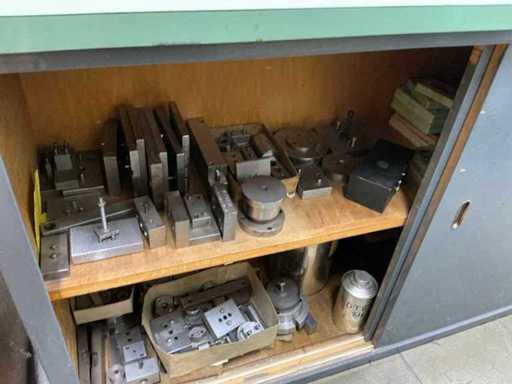

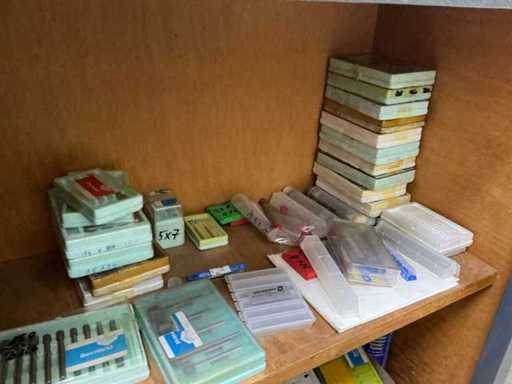

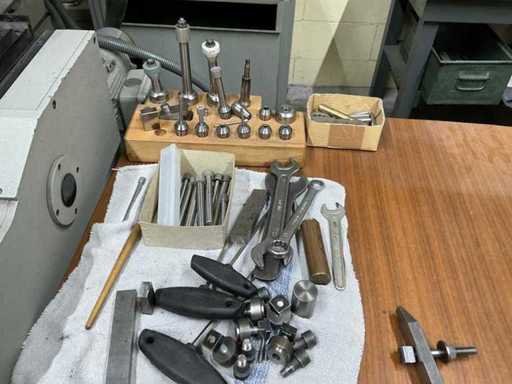

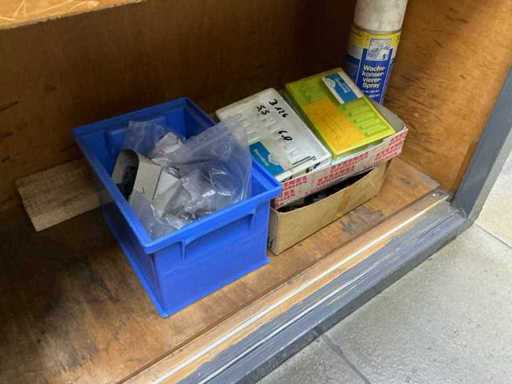

Precision clamping devices and grinding accessories

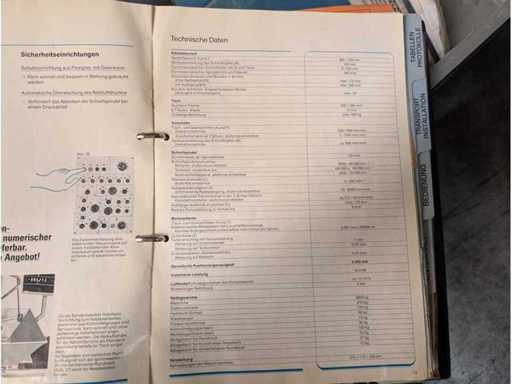

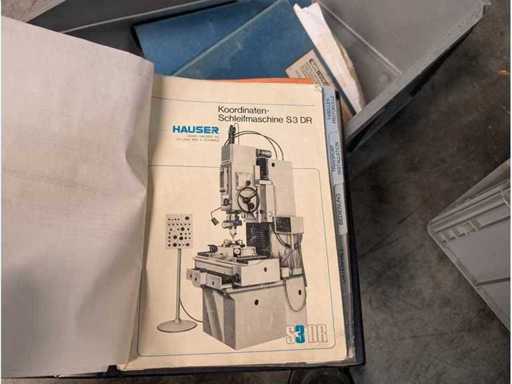

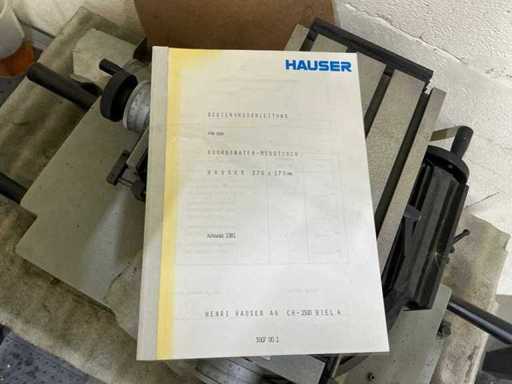

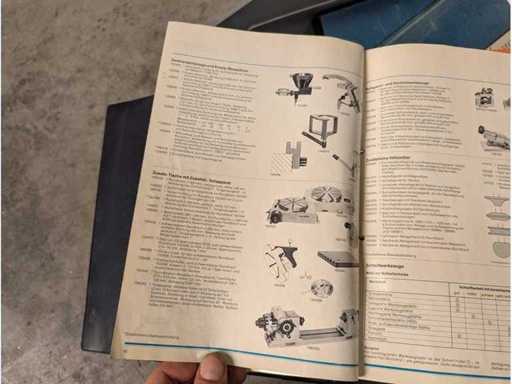

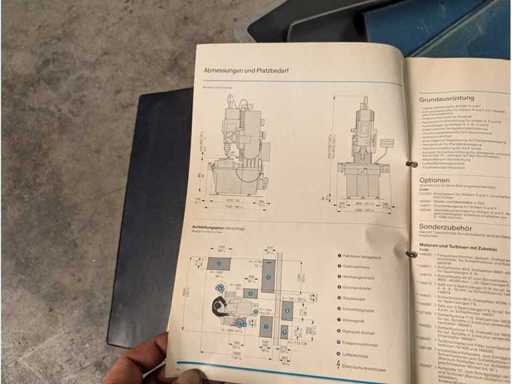

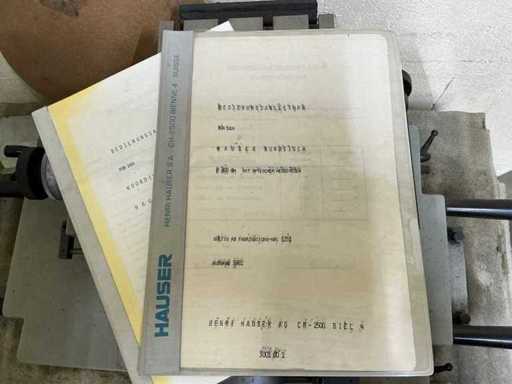

Instruction manuals available
Description

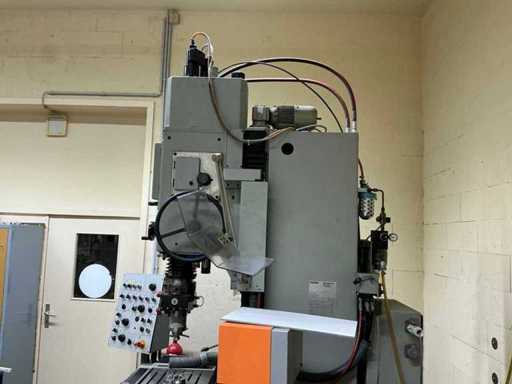

Precision coordinate grinding machine Hauser S3 DR with extensive accessory packaging. The machine has an adjustment range of 400 x 250 mm, a vertical adjustment of 450 mm as well as spindle speeds of up to 80,000 min⁻¹ and turbine speeds of up to 160,000 min⁻¹. Equipped with a coordinate measuring table, rotary table Ø 300 mm, grinding spindles, clamping devices, magnetic clamping plate and extensive documentation. Suitable for high-precision tooling, mold and fixture machining.Remarks
Viewing desired
Please note that lubricants and the like must also be picked up with the purchase of the item (there may be operating fluids / dirt in the machines).
Please note that lubricants and the like must also be picked up with the purchase of the item (there may be operating fluids / dirt in the machines).
Additional details
The offer is valid from the foundation, all lubricants, impurities and foreign articles must be removed and disposed of by the buyer if necessary.
Forklift with a load capacity of 1.5 t is available on site.
