FIB / Vicoma - Vertical - Reactor buffer tank - 2019
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- FIB / Vicoma
- Type
- Vertical
- Year of build
- 2019
- Serial number
- V-1170
- Stainless steel
- Yes
- Temperature range min.
- 0°c
- Temperature range max.
- 275°c
- Own weight
- 5000kg
- Total dimension Height
- 5854mm
Description

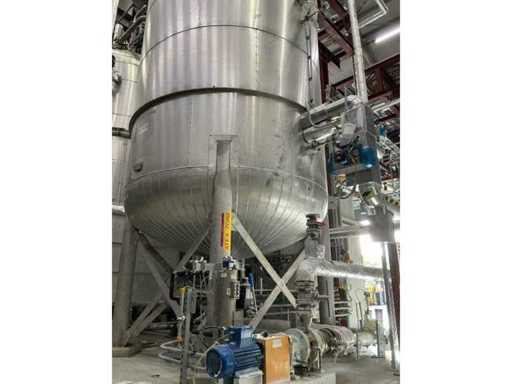

FIB Industries – Reactor Buffer Feed tank
Fluid: glycol suspension
Temperature: -10 / 275 C
Pressure: -0,1 / 0,5
Design Volume Capacity (m3, m3/h) 36 m3
Size dia x length Surface (bare) outside (mm, m2) (2,9 x 5,9 m)
Materials of construction Shell Housing: Stainless steel / AISI 316
Normal Volume: 36,1 m3 (operating volume is 65% fill)
Construction: Stainless steel tank with insulated stainless-steel cladding
Manufacture Date: 2019

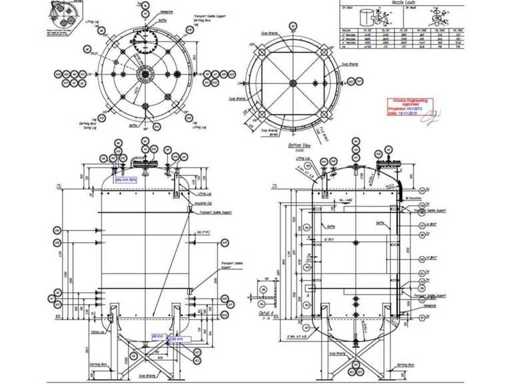

Design: Vertical cylindrical vessel with conical hopper bottom
Tag Number: V-1170
