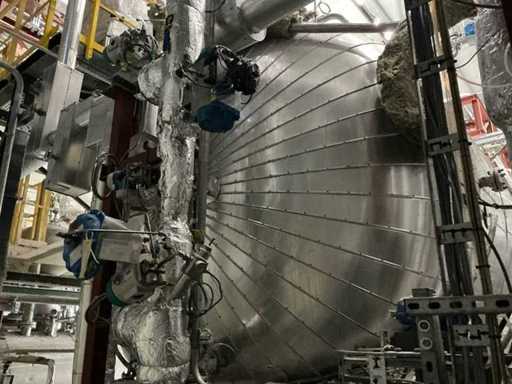

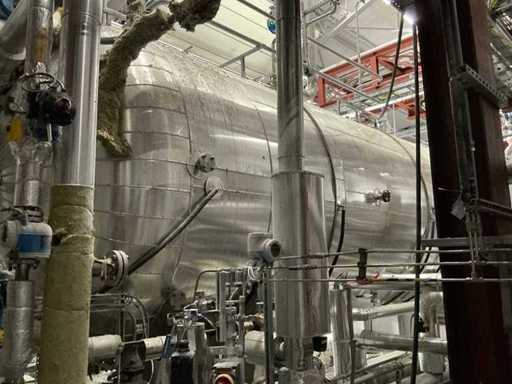

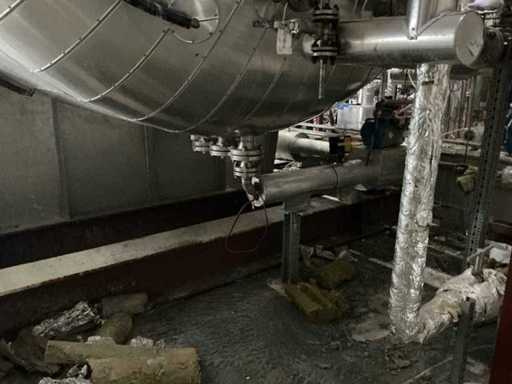

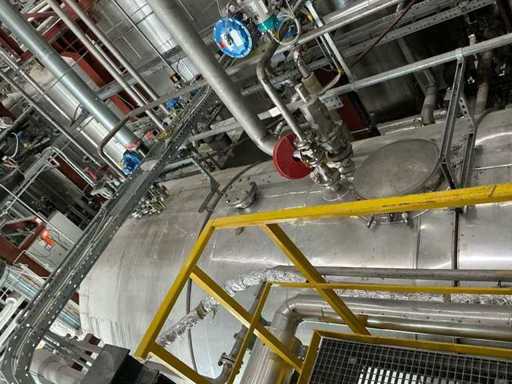

FIB / Vicoma - Horizontal - Horizontal Separator tank - 2018
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- FIB / Vicoma
- Type
- Horizontal
- Year of build
- 2018
- Serial number
- V-1030
- Total dimension Height
- 5300mm
- Stainless steel
- Yes
- Total dimension L
- 6830mm
- Insulated
- Yes
- Own weight
- 10500kg

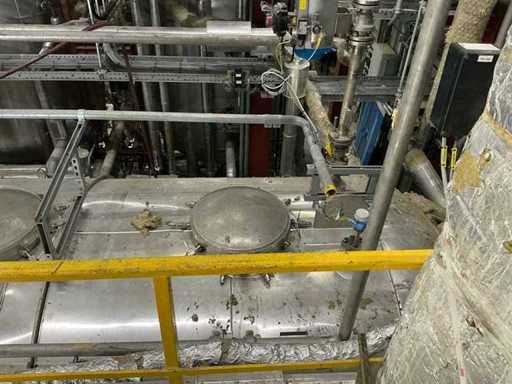

- Manhole
- Yes
- Total dimension W
- 3150mm
Description
Manufacturer: FIB Industries (Netherlands)
Equipment Type: Horizontal Process Mixing / Buffer Vessel
Construction: Stainless steel vessel with insulated stainless-steel cladding
Volume: 60 m³
Design Pressure: +0.5 bar / -1.0 bar (vacuum)
Operating Pressure: +0.2 bar / -0.1 bar
Hydrotest Pressure: 0.83 bar
Design Temperature: 200°C / -10°C
Operating Temperature: 86°C / 20°C
Corrosion Allowance: 0 mm
Material: Stainless Steel 1.4404 (AISI 316L equivalent)
Insulation: 50 mm
Tag Number: V-1030
Application: Process water storage, liquid mixing, thermal buffering, utility fluid conditioning
Including documentation
