ALFA LAVAL Stainless steel stainless steel tank with sloping flat bottom for food storage 178 HL Sold individually
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- ALFA LAVAL
- Dimension w
- 2800mm
- Dimension h
- 3500mm
- Total dimension Height
- 3500mm
- Terms of delivery
- Loaded on truck
Description
Brand: ALFA LAVAL
Capacity: 17800 litres (178 hl)
Type: Temperature-controlled storage tank with sloping flat bottom 2 %
Material: 316L stainless steel
Interior finish: Cold rolled raw
Exterior finish: Cold rolling raw

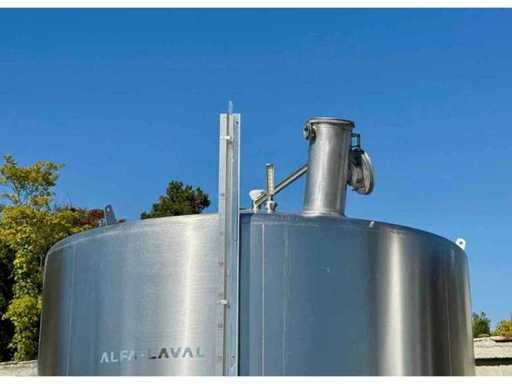

Roof: Conical with offset chimney Ø200 mm, thermometer and lifting rings

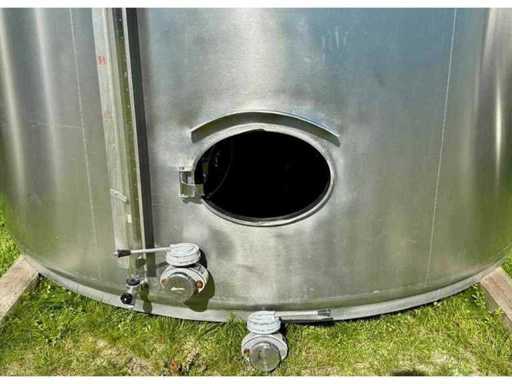

Ferrule: Oval door 310 × 420 mm, partial drain valve DN65, level with tap
Bottom: 2 % inclined plate with casing and total drain valve with plug
Applications: Wine storage, temperature maintenance, process reserve
Dimensions (mm): Ø2800 × H3500 (ferrule height 2800 mm)
Compliance: CE
Remarks: Serial No 007513
Capacity: 17800 litres (178 hl)
Type: Temperature-controlled storage tank with sloping flat bottom 2 %
Material: 316L stainless steel
Interior finish: Cold rolled raw
Exterior finish: Cold rolling raw
Roof: Conical with offset chimney Ø200 mm, thermometer and lifting rings
Ferrule: Oval door 310 × 420 mm, partial drain valve DN65, level with tap
Bottom: 2 % inclined plate with casing and total drain valve with plug
Applications: Wine storage, temperature maintenance, process reserve
Dimensions (mm): Ø2800 × H3500 (ferrule height 2800 mm)
Compliance: CE
Remarks: Serial No 007513
Additional details
Visits and pick-ups by appointment are mandatory.
