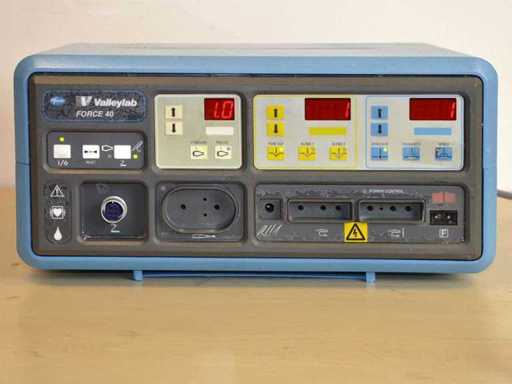

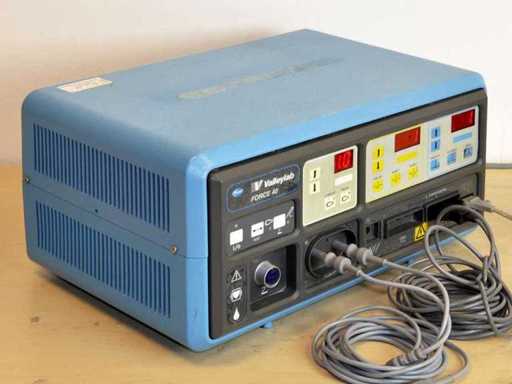

VALLEYLAB - FORCE 40 - mono and bipolar electric scalpel

FEATURES:

Cut: 500 kHz sine

Mix 1: 500 kHz sine bursts at 50% duty cycle, recurrent at 31.25 kHz

Mix 2: 500 kHz sine bursts at 37.5% duty cycle, recurrent at 31.25 kHz

Desiccation: 500 kHz damped sine bursts with a repetition frequency of 250 kHz

Fulguration: 500 kHz damped sine bursts with a repetition rate of 62.5 kHz

Spray: 500 kHz damped sine bursts with a repetition rate of 31.25 kHz

Standard Bipolar: 500 kHz Sinusoidal

Accurate Bipolar: 500 kHz Sinusoidal

OUTPUT FEATURES:

Cut: Max P-P 3300, Rated Load 300, Max Power 300, Crest Factor 2.1 to 100 W

Mix 1: P-P max. 3800, rated load 300, max. power 250, crest factor 2.1 to 100 W

Mix 2: P-P max. 4000, rated load 300, max. power 200, crest factor 2.1 to 100 W

Desiccation: P-P max. 3500, rated load 300, max. power 200, crest factor 2.1 to 100 W

Fulguration: P-P max. 6500, rated load 300, max. power 150, crest factor 2.1 to 100 W

Spraying: P-P max. 9000, rated load 300, max. power 150, crest factor 2.1 @ 100 W

Standard Bipolar: P-P max. 550, Rated load 100, max. power 50, Peak factor 2.1 @ 100 W

Accurate Bipolar: P-P max. 550, Load rating 100, max. power 50, Peak factor 2.1 @ 100 W

Weight: 9.1 kg
Dimensions: 199 x 409 x 303 mm
