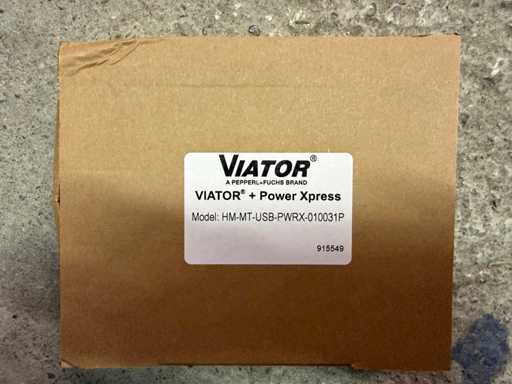

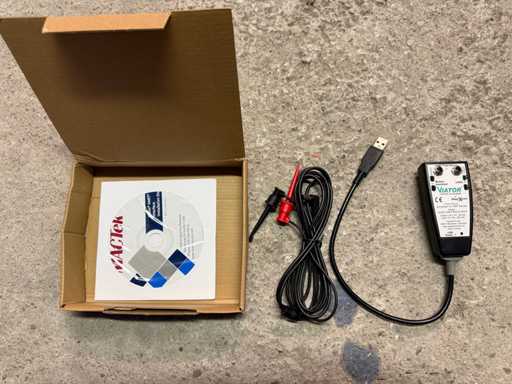

USB HART Modem with PowerXpress - HM-MT-USB-PWRX-010031P
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Pepperl+Fuchs
- Model
- HM-MT-USB-PWRX-010031P
- Terms of delivery
- Loaded on truck
Description
Manufacturer: Pepperl+Fuchs
Model: HM-MT-USB-PWRX-010031P (current replacement: HM-PF-USB-PWRX-010031P)
Type: USB HART modem with PowerXpress
Function:
Interface for commissioning, calibration and data acquisition of HART field devices
Supplies power to all 2-wire HART devices (up to 40 mA)
USB powered, no external power supply required
Specifications:
Input current: 30 mA (modem only), 255 mA (with device current)
Output: 24 VDC at 40 mA
Interface: USB 2.0
Galvanic isolation: 500 V DC
Operating temperature: -20 ... +50 °C
Degree of protection: IP20
Housing: Polycarbonate
Dimensions: 96 × 47 × 24 mm
Cable length: 1.8 m with test clamps [pepperl-fuchs.com], [pepperl-fuchs.com]
Compatibility: Windows 7, 10, 11 (32/64 bit)
Particularities:
Compact, robust for industrial use
Mode selection: "Powered Modem" or "Modem Only"
Remarks
unchecked
Additional details
- Goods are packed and loaded onto trucks
- Shipping possible on request - auctions@modico.com
- No warranty is guaranteed on the items offered
Business buyers from the European Union (EU) and non-EU countries (third countries) are obliged to pay a deposit to Troostwijk Deutschland on their total purchase. This deposit is calculated on the basis of the VAT rate applicable in the Federal Republic of Germany. After confirmation that the purchased lot has left the EU, the deposit will be returned to the buyer:
• EU buyers must complete a completed confirmation of success [download the template "Template_Intra-Community Supply (DE-EN)" attached here] to Troostwijk Germany and return the deposit to export.de@troostwijkauctions.com in order to receive a refund.
• Non-EU buyers must return a copy of the electronic export declaration (EX-A with MRN - for verification only) or, if the value of the goods is lower, a completed export declaration with a stamp from the EU border customs office to export.de@troostwijkauctions.com in order to get the deposit refunded.
