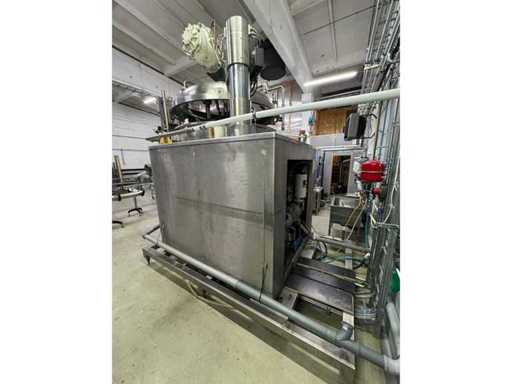

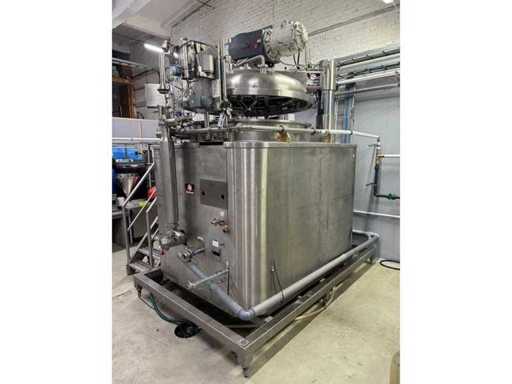

Unimix - SRC1600 - Vacuum process Reactor, jacketed vessel with homogeniser
- Current bid
- Status
Total bid amount
See total breakdown
Total bid amount
See total breakdown
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Unimix
- Type
- SRC1600
- Stainless steel
- Yes
- Electric connection
- 380V
- Total dimension L
- 2200mm
- Total dimension W
- 3300mm
- Total dimension Height
- 3200mm
Description

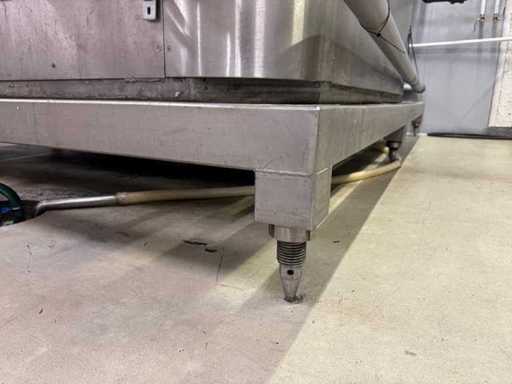

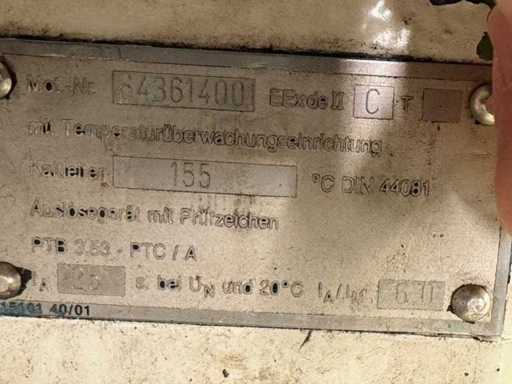

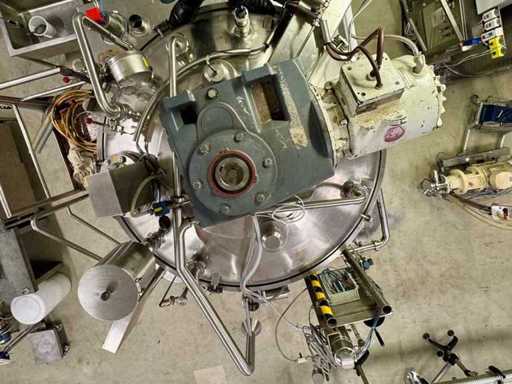

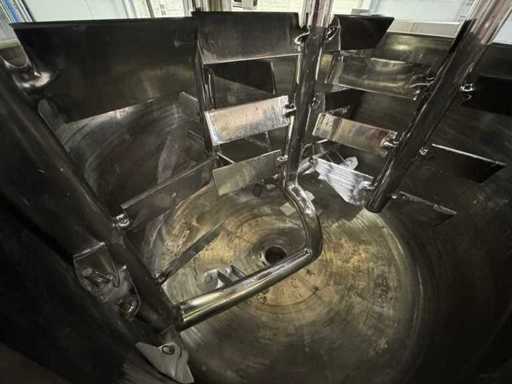

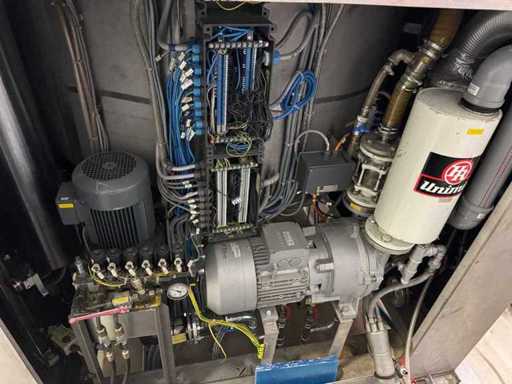

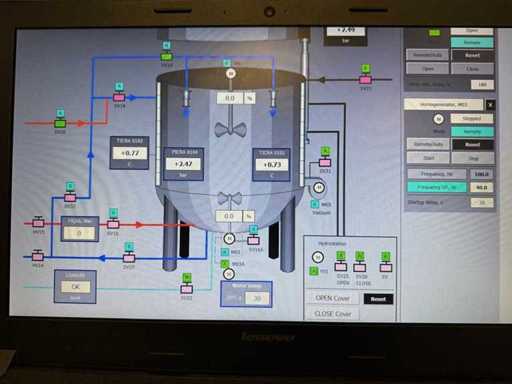

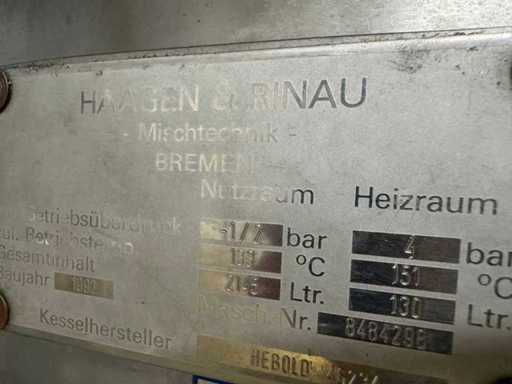

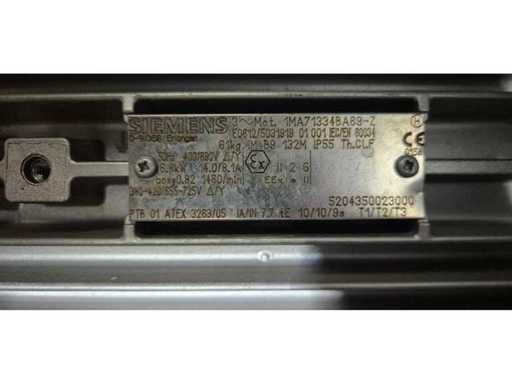

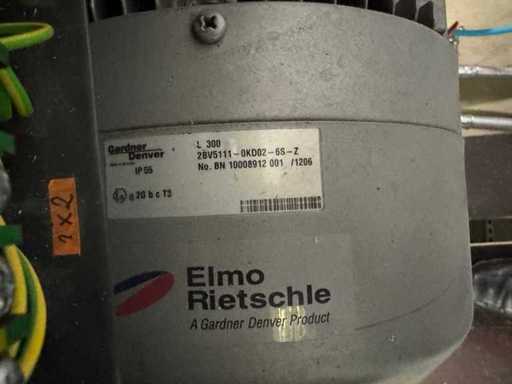

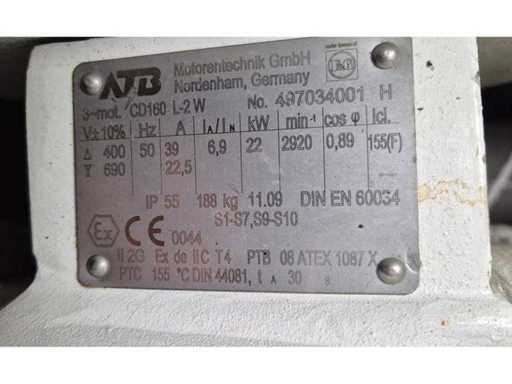

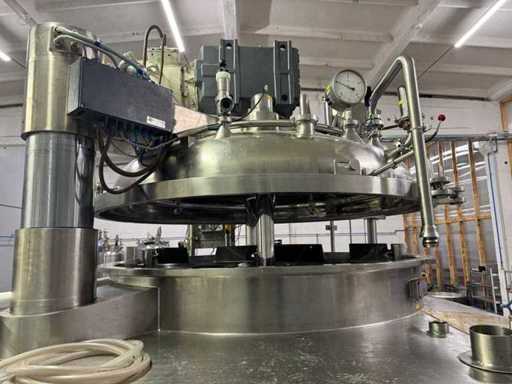

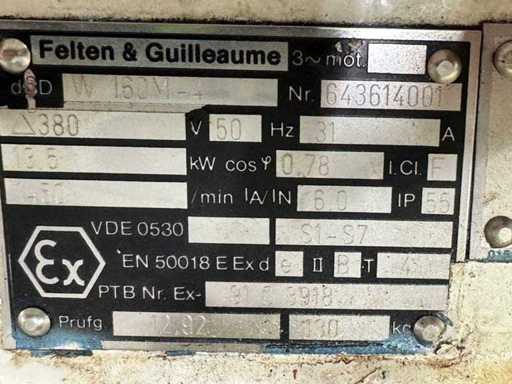

stainless steel jacketed vessel -1/2bar, 133C, total capacity 2145Ltr, working capacity 1600Ltr; jacket 4bar, 151c, 130Ltr., dished bottom, hydraulic lift to open the top, with EKATO S-Jet Homogeniser SJ 1000 SO EX in the bottom of the tank (380 V, 22kw, 3000rpm, new 2009), anchor stirrer/scraper (new 2022) with ATEX PTB motor on the top ( 380V, 13,5kw), inlet 2xDN50 outlet DN100, vacuum pump Elmo Rietschle L300 2BV5111 incorporated inside main body, working pressure -1/+2bar, reactor outer sizes 1950x2300x2900 height (including motor), mounted on stainless steel frame (size 2200x3300, frame height 300mm), totally refurbished, new operation software 2022, year of construction of the main vessel 1992
