Tecan - Cavro Omni Robot - OEM Automated Pipetting Robotic Component
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Tecan
- Type
- Cavro Omni Robot
- Terms of delivery
- Loaded on truck
Description
Brand: Tecan
Model: Cavro Omni Robot
Type: Automated pipetting OEM robotic component
Application: Automated liquid handling and dispensing for instrumental integration
Axis accuracy (at tip):
X: ±0.3 mm (up to 1,000 mm) / ±0.4 mm (up to 1,250 mm)
Y: ±0.3 mm
Z: ±0.25 mm (Universal Z) / ±0.4 mm (Standard Z)
XYZ repeatability (bidirectional, at tip):
X ≤0.2 mm – Y ≤0.2 mm – Z ≤0.4 mm (Standard) / ≤0.15 mm (Universal)
Repeatability (at carriage): X ≤0.12 mm – Y ≤0.12 mm
Resolution: 0.02 mm (X, Y, Z axes)
Maximum speed: X 800 mm/s – Y 600 mm/s – Z 600 mm/s
Functions: Optimized firmware, single point calibration, Arm collision avoidance, Windows® compatibility and independent OS controls

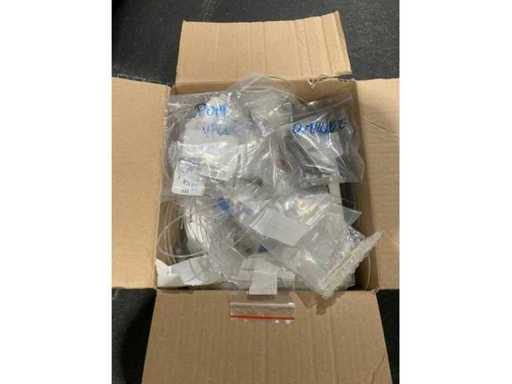

Included equipment: Bundle of hoses, tools, spare parts and pump elements
Model: Cavro Omni Robot
Type: Automated pipetting OEM robotic component
Application: Automated liquid handling and dispensing for instrumental integration
Axis accuracy (at tip):
X: ±0.3 mm (up to 1,000 mm) / ±0.4 mm (up to 1,250 mm)
Y: ±0.3 mm
Z: ±0.25 mm (Universal Z) / ±0.4 mm (Standard Z)
XYZ repeatability (bidirectional, at tip):
X ≤0.2 mm – Y ≤0.2 mm – Z ≤0.4 mm (Standard) / ≤0.15 mm (Universal)
Repeatability (at carriage): X ≤0.12 mm – Y ≤0.12 mm
Resolution: 0.02 mm (X, Y, Z axes)
Maximum speed: X 800 mm/s – Y 600 mm/s – Z 600 mm/s
Functions: Optimized firmware, single point calibration, Arm collision avoidance, Windows® compatibility and independent OS controls
Included equipment: Bundle of hoses, tools, spare parts and pump elements
Cavro Omni pipetting robot designed for flexible integration into automated liquid handling systems. Enables rapid prototyping and precise control of axis movements and dispensing operations with an optimized set of controls.
Additional details
The buyer is in charge of dismantling and loading his lots. Quotes for dismantling and loading are available on request at info@r-t.fr .
Pick-ups must be made by appointment from March 16 to 27.
If you would like a transport quote, please contact JMA-EXPRESS: auction@jma-express.com
