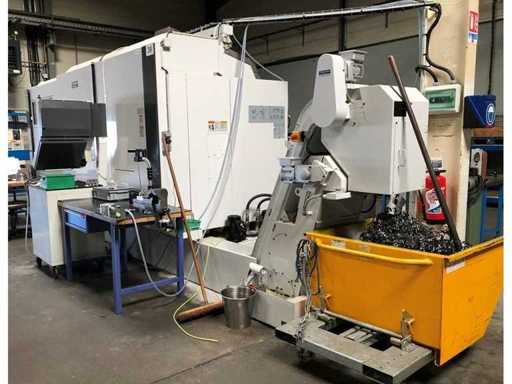

TAKISAWA TMM 250 M3 Multi-tasking CNC Lathe with Y-Axis, Motorized Tools and Counter-Spindle
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- TAKISAWA
- Type
- TMM 250 M3
- Year of build
- 2015
- Machine weight
- 5300kg
- Dimension l
- 5300mm
- Dimension w
- 1922mm
- Dimension h
- 2120mm
- Terms of delivery
- Loaded on truck
Description
Manufacturer: TAKISAWA
Year: 2015
Type: Multi-tasking CNC lathe with Y-axis, motorized tools and sub-spindle
Numerical control: FANUC 31i
Machine hours: approx. 16,900 h
Spindle hours: approx. 8,500 h (new spindle replaced in May 2024, approx. 100 h)
Main spindle: A2-6" – 5,000 rpm
Sub-spindle: A2-6" – 5,000 rpm
Bar capacity: Ø 65 mm
Chucks: Ø 210 mm
Milling spindle: up to 12,000 rpm – KM63 or Capto C6 interface
Tool changer (ATC): 60 tools
Lower turret: 15 VDI40 stations with motorized tools
Strokes: X 260 mm / Y 70 mm / Z 590 mm
Fast feeds: X/Z 30,000 mm/min
Equipment: Drum chip conveyor, workpiece catcher with conveyor, 70 bar HP coolant with cooling, X/Z rulers, LNS Quick Load Servo III bar feeder interface, AICC II software, Renishaw tool probe, automatic door opener
Dimensions (mm): 5300 × 1922 × 2120
Weight (kg): 5300

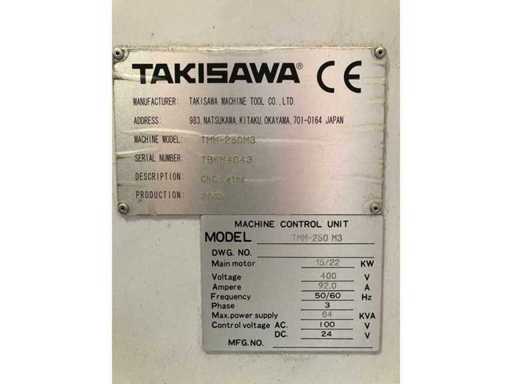

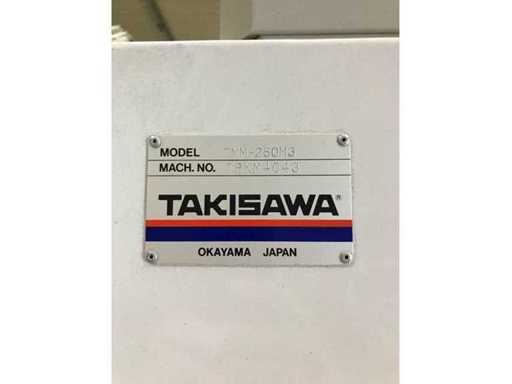

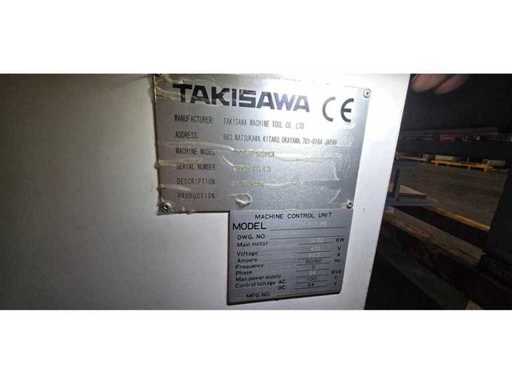

Remarks: Complete and highly equipped machine. Serial number included in the description.
Year: 2015
Type: Multi-tasking CNC lathe with Y-axis, motorized tools and sub-spindle
Numerical control: FANUC 31i
Machine hours: approx. 16,900 h
Spindle hours: approx. 8,500 h (new spindle replaced in May 2024, approx. 100 h)
Main spindle: A2-6" – 5,000 rpm
Sub-spindle: A2-6" – 5,000 rpm
Bar capacity: Ø 65 mm
Chucks: Ø 210 mm
Milling spindle: up to 12,000 rpm – KM63 or Capto C6 interface
Tool changer (ATC): 60 tools
Lower turret: 15 VDI40 stations with motorized tools
Strokes: X 260 mm / Y 70 mm / Z 590 mm
Fast feeds: X/Z 30,000 mm/min
Equipment: Drum chip conveyor, workpiece catcher with conveyor, 70 bar HP coolant with cooling, X/Z rulers, LNS Quick Load Servo III bar feeder interface, AICC II software, Renishaw tool probe, automatic door opener
Dimensions (mm): 5300 × 1922 × 2120
Weight (kg): 5300
Remarks: Complete and highly equipped machine. Serial number included in the description.
Additional details
The dimensions and weights indicated for each batch are provided as a guide and correspond to the current configuration (assembled machine).
Disassembly, handling or packaging operations can change this data and impact transport conditions.
Before any transport is organised, buyers are invited to check the real characteristics of their lots directly with the seller or the company in charge of dismantling.

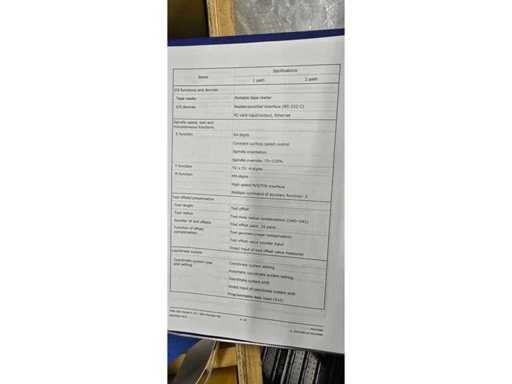

Documents
