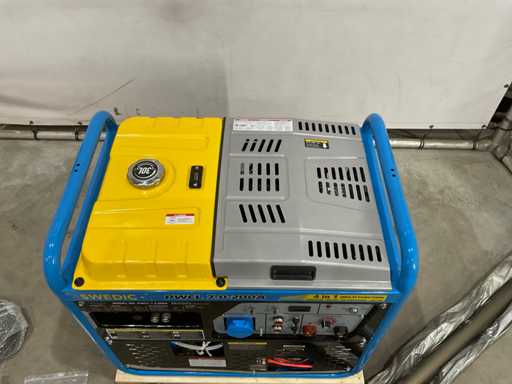

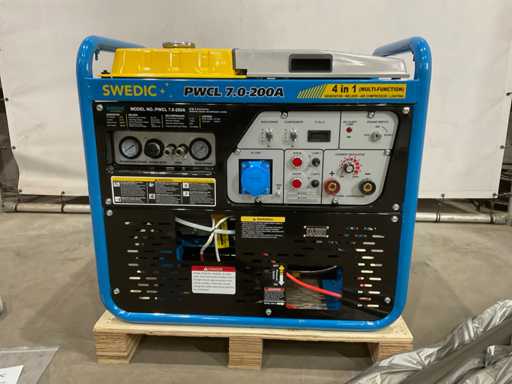

Swedic - PWCL 7.0-200A - Generator welding machine light mast compressor in 1
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Swedic
- Type
- PWCL 7.0-200A
- Gasoline
- Yes
- Hours on display
- 0
- Machine weight
- 153kg
- Total dimension L
- 850mm
- Total dimension W
- 600mm
- Total dimension Height
- 780mm
Description

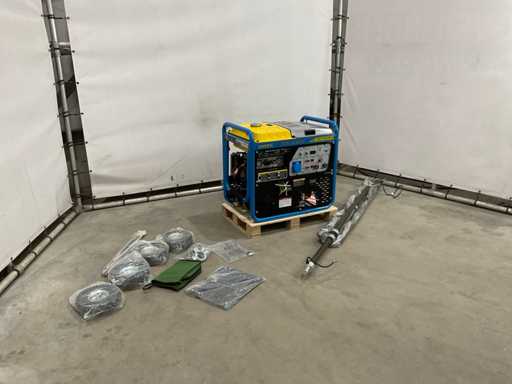

unused; without lamps Generator, welding, air compressor. 3 functions on one machine. Wide range of applications.
For DC welding and AC generator output and air compressor, AC 5.0kw can be delivered steadily.
MDS rectifier structure, easy maintenance and high efficiency.
AVR for control voltage.
Easy start and low fuel consumption.
Compact structure for easy transport.
Two-stage air compressor for high pneumatic tools.
20L large tank for higher air compressor efficiency.
It can weld a 4.0mm electrode for a long time.

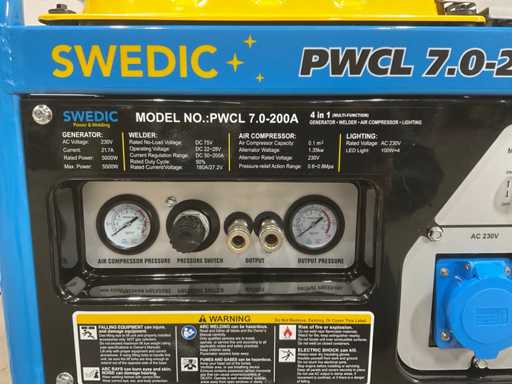

Specifications generator
Rated voltage: AC 230V
Rated Power: 5000 W
Maximum power: 5500 W
Rated Current: 21.7A
Frequency: 50 Hz
Power Factor: 1.0

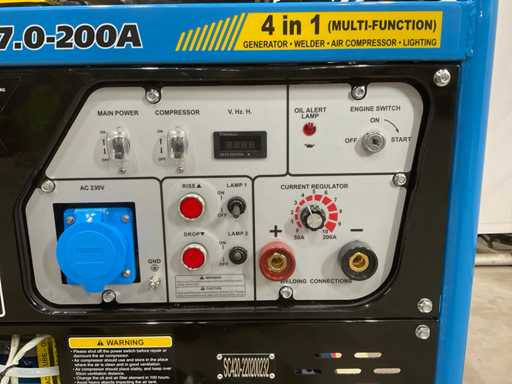

Specifications Welder
No-load voltage: 75
Welding voltage: 22-28V
Current Range: 50-200A
Rated duty cycle: 50%
Air compressor specifications
Air compressor capacity: 0.1 m³
Alternator power: 1.35 kW
Pressure: 115PSI
Pressure relief action range: 0.6 ~ 0.8 MPa

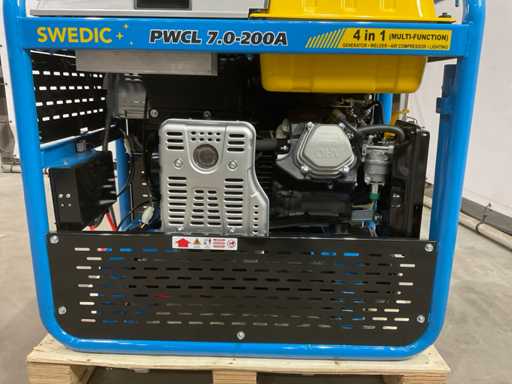

Engine Specifications
Cooling system: air cooling
Air valve: OHV
Ignition system: CDI
Fuel tank capacity: 30
Oil warning system: YES
Fuel consumption: 374 (g/hp.hr)
Start Mode: Electric/Recoil
