SOMAB - OPTIMAB 550 - C-AXIS NUMERICAL CONTROL LATHE - 2017
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- SOMAB
- Type
- OPTIMAB 550
- Year of build
- 2017
- Terms of delivery
- Loaded on truck
Description

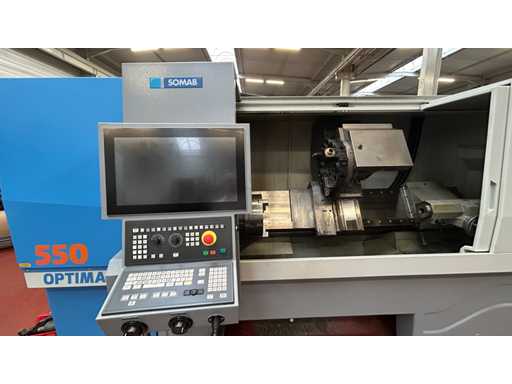

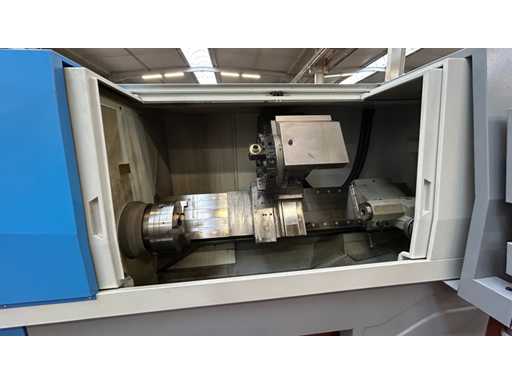

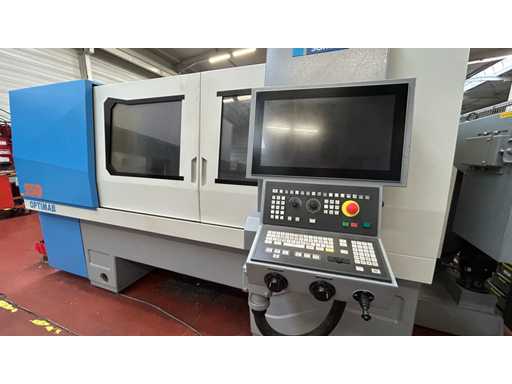

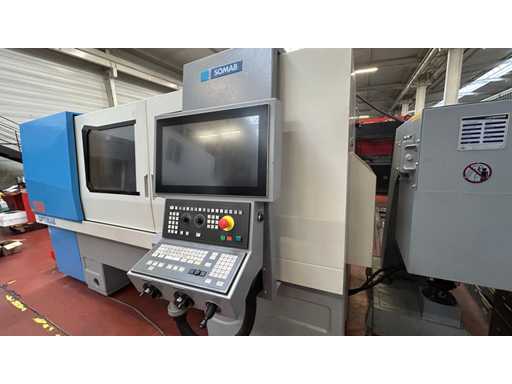

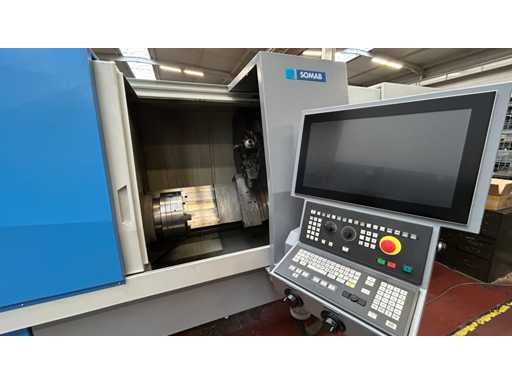

SOMAB NUMERICALLY CONTROLLED LATHE TYPE OPTIMAB 550, C-AXIS, YEAR 2017
Brand: SOMAB Year: 2017 Model: OPTIMAB 550
Features
Type :OPTIMAB 550

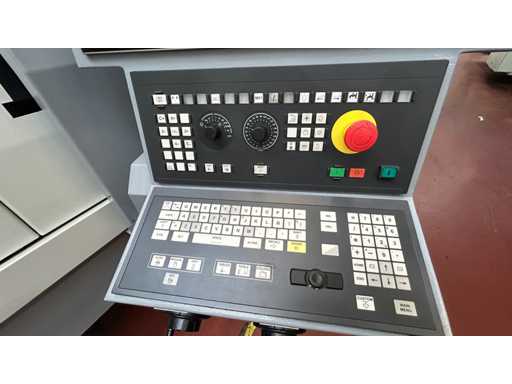

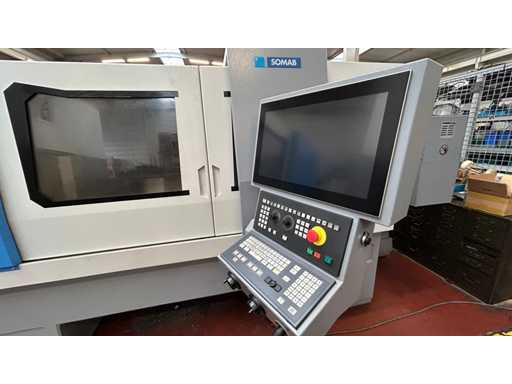

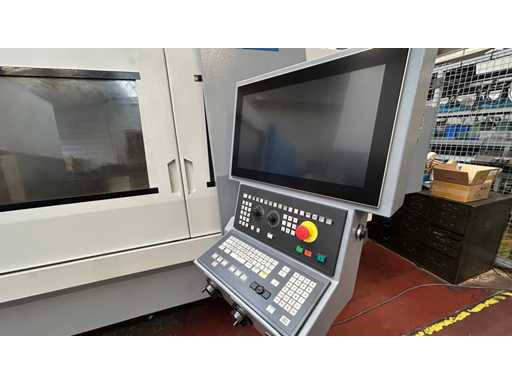

NC Type :FAGOR 8065
Max Machining Diameter :410
Permissible Diameter Above Bench (mm) :620
Carriage Passage Diameter(mm) :560
Distance Between Spikes(mm) :1500
Max Machining Length(mm) :1120
X Stroke (mm) :330
Z Stroke (mm) :1300

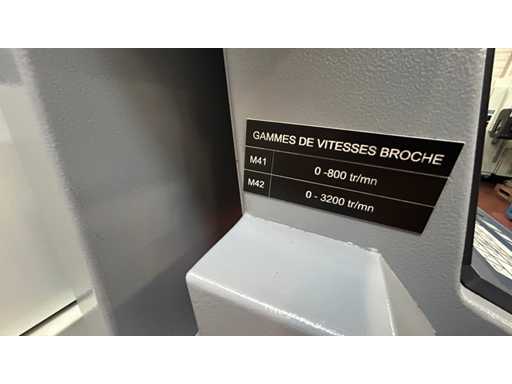

Spindle Speed (RPM) :60-3200 (2800)
Spindle Motor Power(kw) :18/24.2
Tool attachment type :VDI 40
Spindle Bore(mm) :72
Spindle Nose :A1 8"ISO

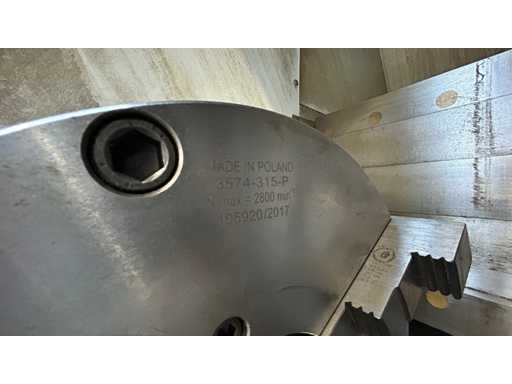

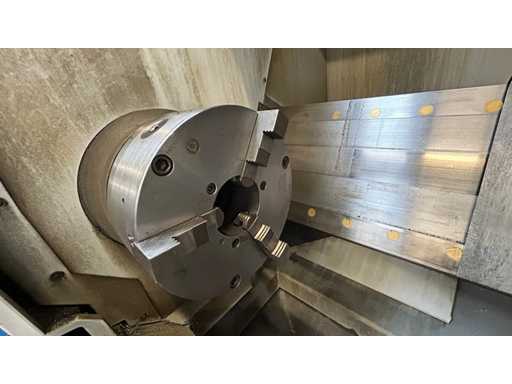

Chuck Diameter (mm) :315 - BISON Manual Chuck

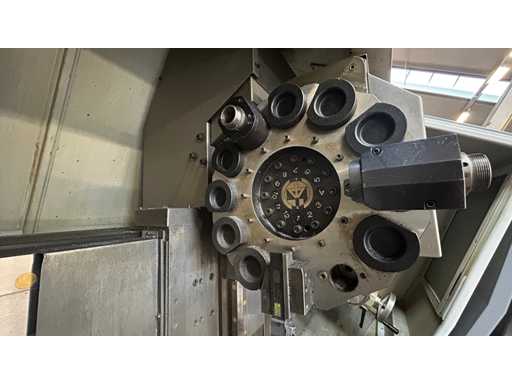

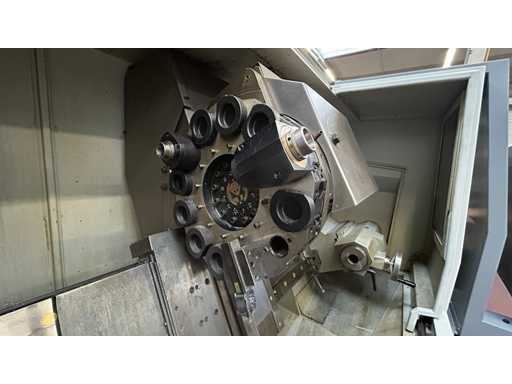

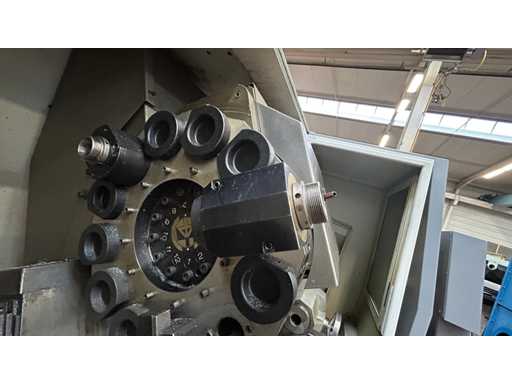

Number Of Turrets :1
Number Of Turret Stations :12
Trolley Tools Section :32 x 32
Boring Bar Diameter :40
Spindle Power(kw) :18
X-Axis Fast Feed Speed (m/min) :15
Z Axis Fast Feed Speed (m/min) :15

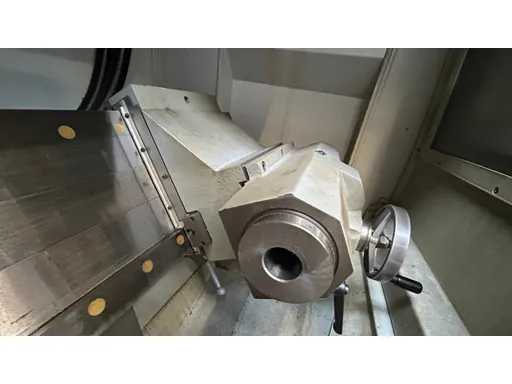

Tailstock :Automatic CM5 - Manual Sleeve
Diameter of scabbard against point :44
Sheath vs. toe Stroke :160
Footprint (L x W x H) :3400 X 2205 X 2000
Weight (g) :7.5 kg
Equipment
C-AXIS ROTARY TOOLS

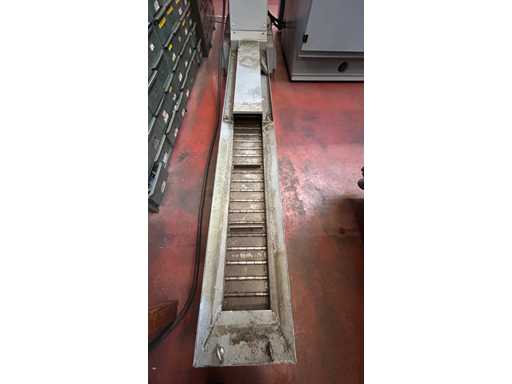

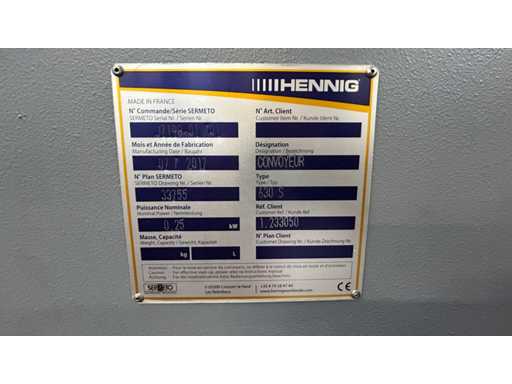

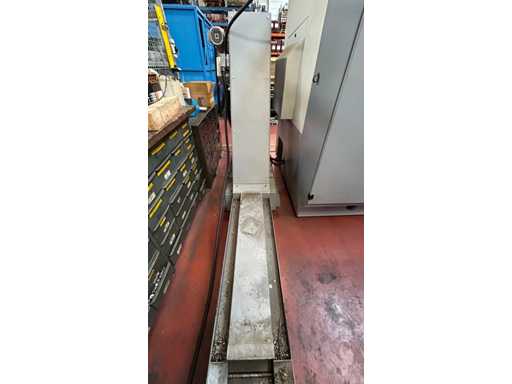

CHIP CONVEYOR

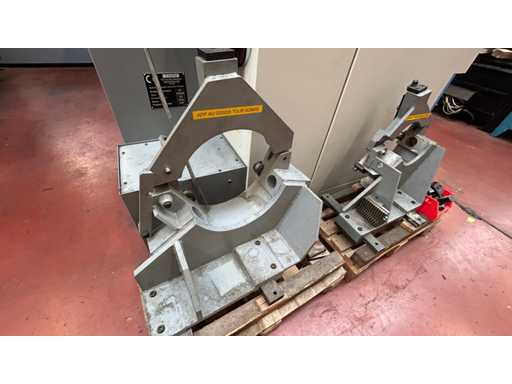

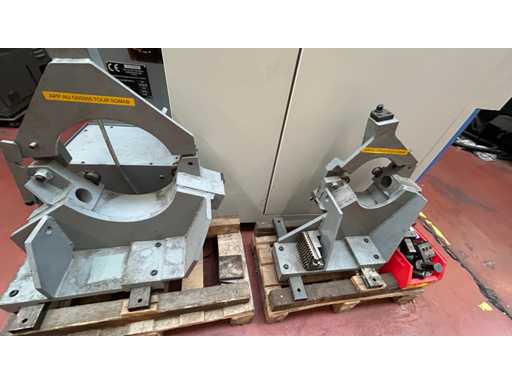

2 FIXED GLASSES

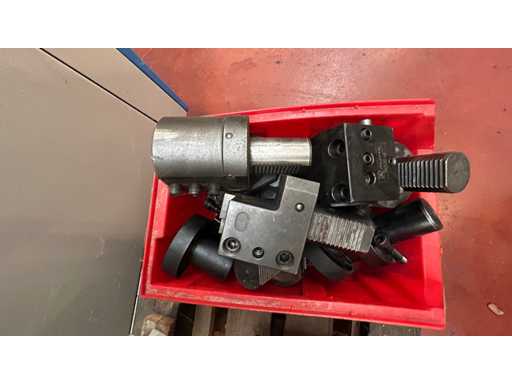

10 FIXED TOOL HOLDERS + 2 TURNS
OPERATING HOURS: 1200
Additional details
At the request of interested parties, online auction of metalworking machinery.
The dimensions and weights shown for each batch are provided as a guide and correspond to the current (assembled) condition of the equipment.
Disassembly, handling or packaging can change these values and impact transport conditions.
Prior to any transport booking, buyers are asked to check the actual specifications of the lots directly with the seller or the dismantling company to ensure proper organisation.
Pick-ups will be made after full payment of the invoice and only by appointment.
