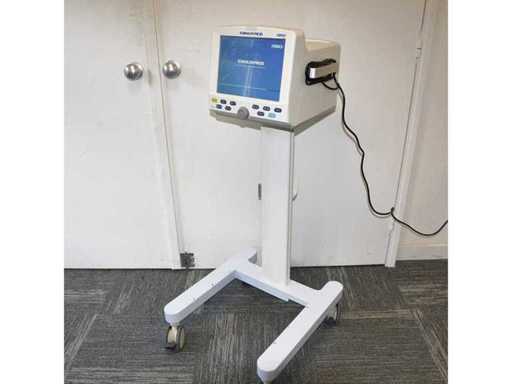

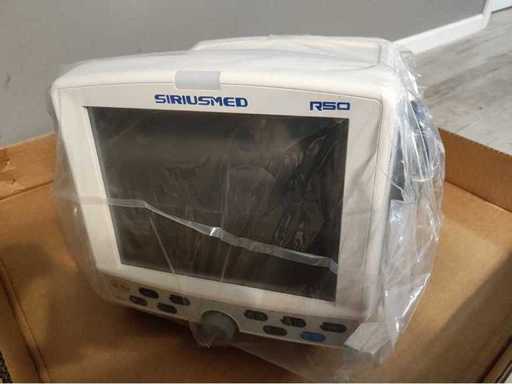

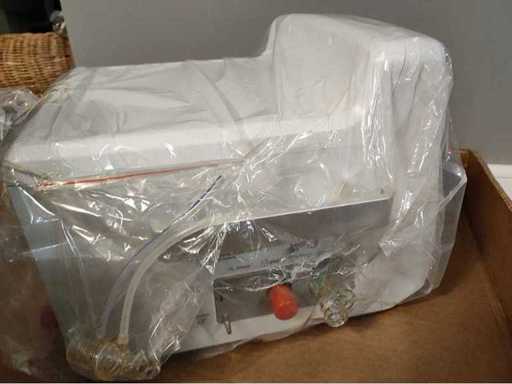

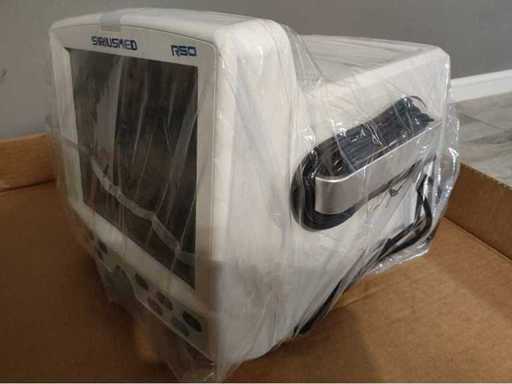

SIRIUSMED - R50 - Resuscitation Ventilator, Never Used

PNEUMATIC FAN

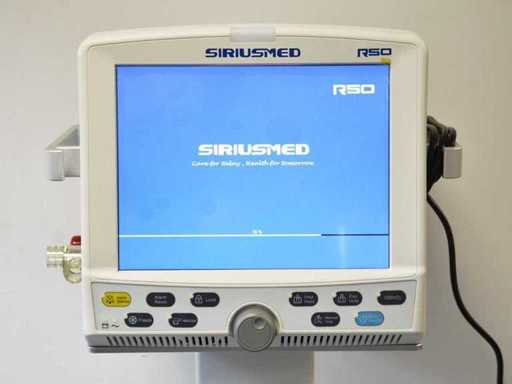

• TFT display, with 12" touchscreen

• Fan Modes: VCV, PCV, SIMV-VC, SIMV-PC, CPAP/PSV, Backup, Manual

• Loop: P-V, F-V

• NI-MH battery, ≥90mins

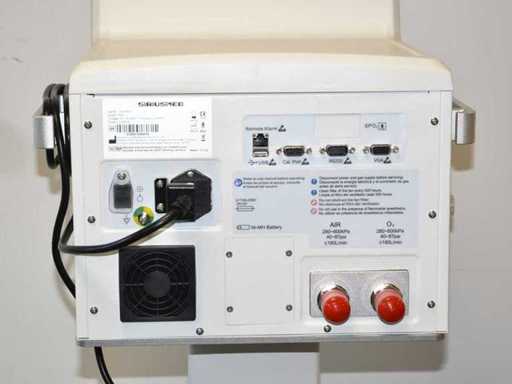

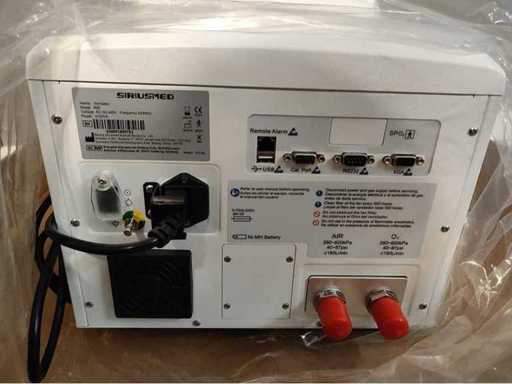

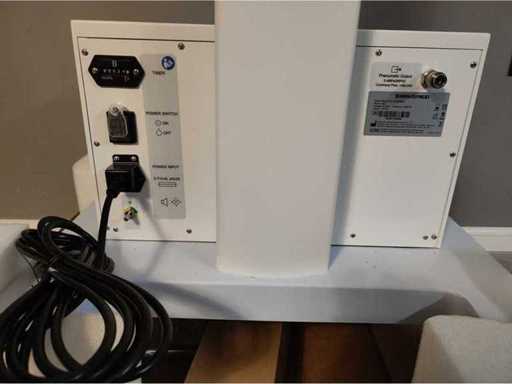

• RS232, VGA, USB, remote alarm

• Weight: Fan: 12.5 kg - Trolley: 20 kg

• Dimensions (H×W×D): Fan: 455mm x 400mm x 300mm

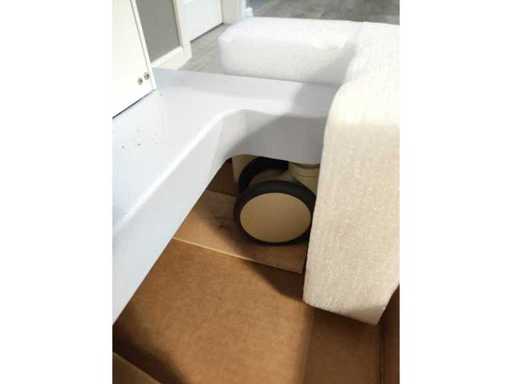

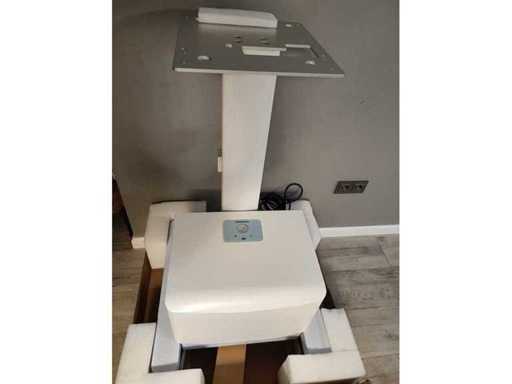

Carriage: 565mm x 535mm X 910mm

OPERATING CONDITIONS

• Gas supply: Air, O2, 280 kPa -600 kPa (41~87 PSI)

• Power supply: 100-240 V, 50/60 Hz

• Temperature: 10-40°C (Operating), -20-60°C (Storage)

• Relative humidity: 5-95%, non-condensing (operating) 5-95% (storage)

• Atmospheric pressure (operating and storage): 500 hPa-1,060 hPa

The Siriusmed R50 is a manual, non-invasive resuscitation device essential for emergency, transport, intra-hospital transfer and post-operative recovery situations. It offers inspiratory support and allows the monitoring of respiratory volumes in both children and adults during critical situations in the emergency room.
