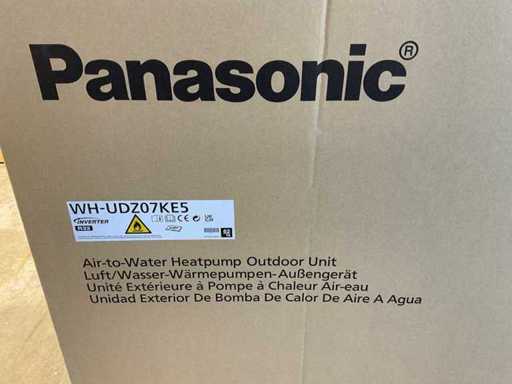

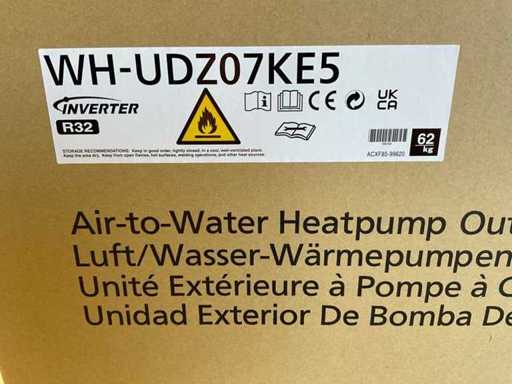

Panasonic - Aquarea K WH-UDZ07KE5 - bi-bloc heat pump outdoor unit 7kW
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Panasonic
- Type
- WH-UDZ07KE5
- Year of build
- 2023
- Power
- 7kW
- Electric connection
- 230V
- Own weight
- 55kg
- Total dimension L
- 320mm
- Total dimension W
- 875mm
- Total dimension Height
- 795mm
Description

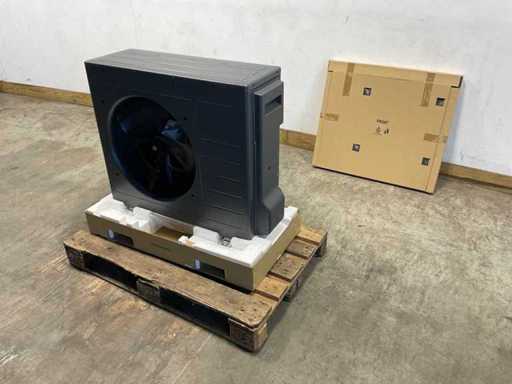

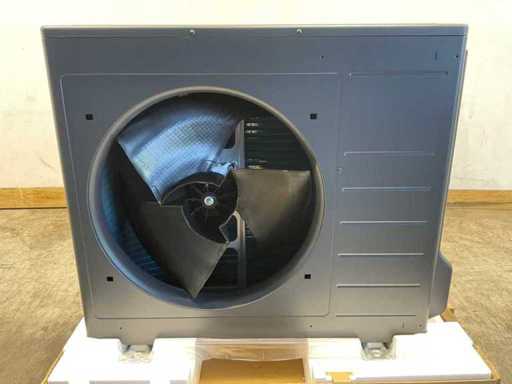

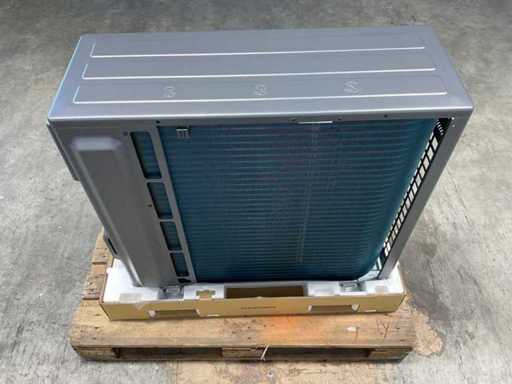

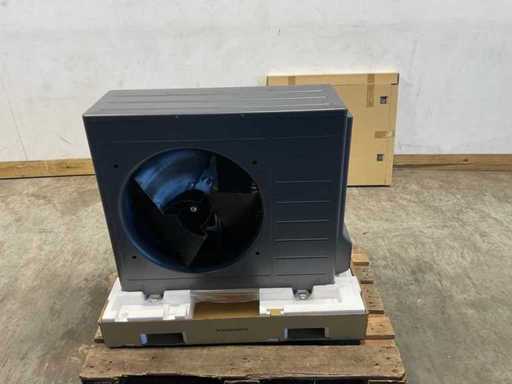

Panasonic WH-UDZ07KE5 outdoor unit without installation.
This outdoor unit belongs to the Aquarea K series and is an air-water heat pump in bi-bloc version. The unit works with R32 refrigerant and is designed for use in split heat pump systems in combination with a separate indoor unit.

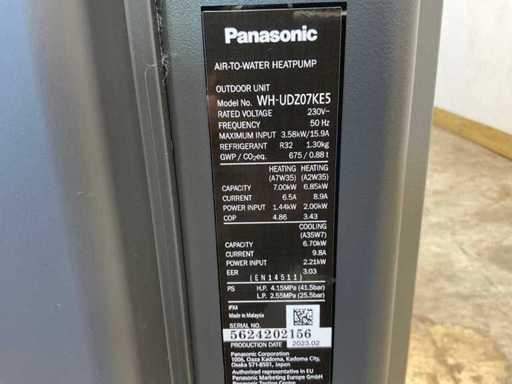

The nominal heating capacity is 7.00 kW at A+7°C/W35°C with a COP of 4.86. At A+2°C/W35°C, the heating capacity is 6.85 kW with a COP of 3.43. The cooling capacity is 6.70 kW (± 23,000 BTU/h) with an EER of 3.03 (A35°C/W7°C).
The outdoor unit has dimensions of 795 x 875 x 320 mm (h x w x d) and a net weight of approximately 55 kg. The operating range is between -25°C and +35°C when heating and between +10°C and +43°C when cooling. The water outlet temperature ranges from 20 to 60°C in heating mode.
