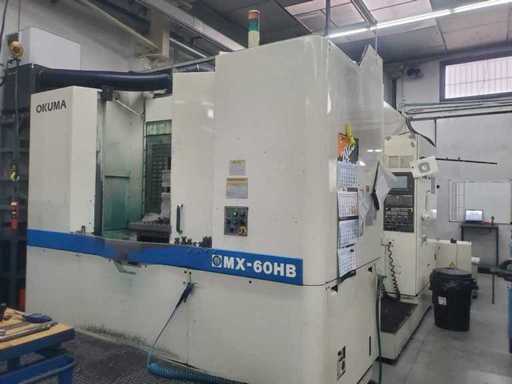

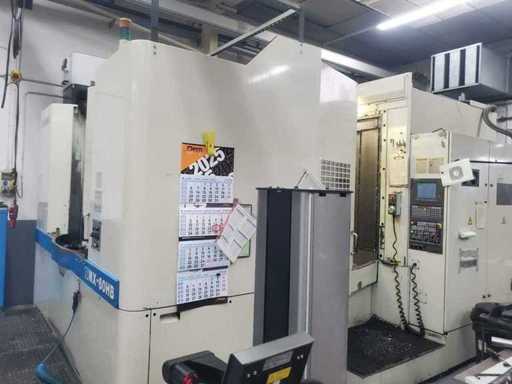

OKUMA - MX-60HB - CNC Horizontal Machining Center
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- OKUMA
- Type
- MX-60HB
- Serial number
- 0317
- Travel x-axis
- 1000mm
- Travel y-axis
- 800mm
- Travel z-axis
- 810mm
- Speed from n=
- 50rpm
- Speed till n=
- 10000rpm
- Workpiece weight max.
- 1200kg
- T-slot fixture table size W
- 630mm
- T-slot fixture table size L
- 630mm
- -axis
- 4
- Terms of delivery
- Loaded on truck
Description
Supply voltage: 380 V
Phase: 3P
Frequency: 50 Hz
Rated capacity: 46 kVA
Full load current: 70 A
Largest motor rate: 129/10 A
Interrupt capacity: 15 kA
Diagram No.: W6000-270/-247-6
Serial number: 0317
Made in Japan by OKUMA Corporation

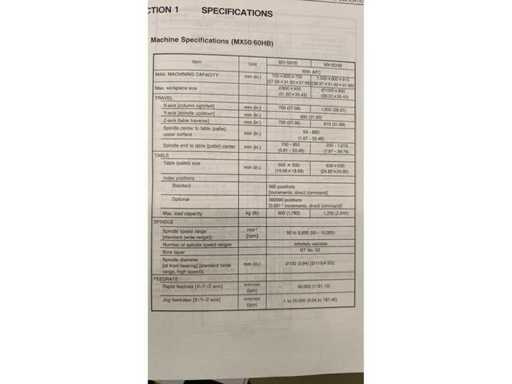

Maximum machining capacity: 1000 × 800 × 810 mm
Maximum workpiece size: 939.37 × 810 × 810 mm
X-axis travel: 1000 mm
Y-axis travel: 800 mm
Z-axis travel: 810 mm
Spindle center to table: 200–1010 mm
Spindle end to table center: 87.8–976 mm

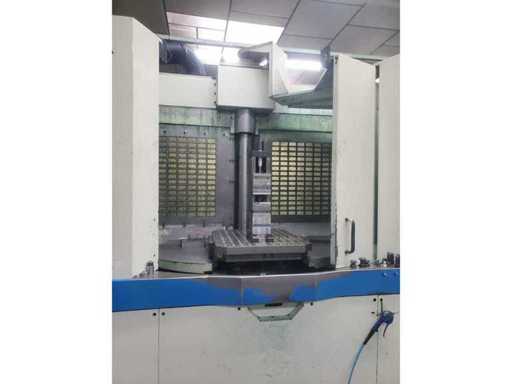

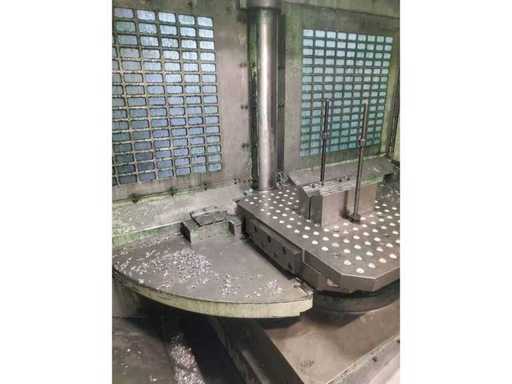

Table pallet size: 630 × 630 mm
Index positions: 360 positions
Maximum table load: 1200 kg
Spindle speed range: 50–10000 rpm
Spindle taper: NT No.50
Spindle diameter: Ø110 mm
Rapid feedrate (X/Y/Z): 30000 mm/min
Jog feedrate: 1–20000 mm/min
4-axis horizontal machining center
Phase: 3P
Frequency: 50 Hz
Rated capacity: 46 kVA
Full load current: 70 A
Largest motor rate: 129/10 A
Interrupt capacity: 15 kA
Diagram No.: W6000-270/-247-6
Serial number: 0317
Made in Japan by OKUMA Corporation
Maximum machining capacity: 1000 × 800 × 810 mm
Maximum workpiece size: 939.37 × 810 × 810 mm
X-axis travel: 1000 mm
Y-axis travel: 800 mm
Z-axis travel: 810 mm
Spindle center to table: 200–1010 mm
Spindle end to table center: 87.8–976 mm
Table pallet size: 630 × 630 mm
Index positions: 360 positions
Maximum table load: 1200 kg
Spindle speed range: 50–10000 rpm
Spindle taper: NT No.50
Spindle diameter: Ø110 mm
Rapid feedrate (X/Y/Z): 30000 mm/min
Jog feedrate: 1–20000 mm/min
4-axis horizontal machining center
Additional details
All items are sold as used and unchecked.
For more detailed information, please refer to the auction terms and conditions.
