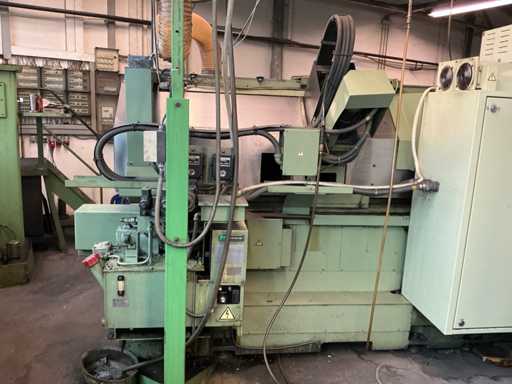

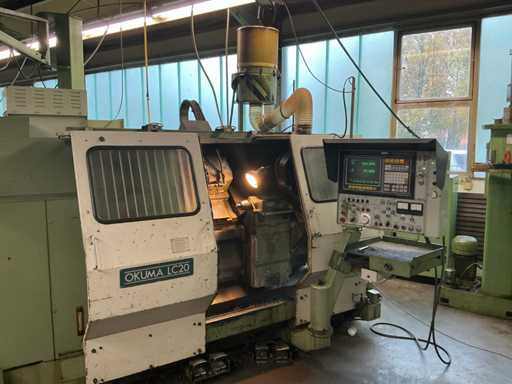

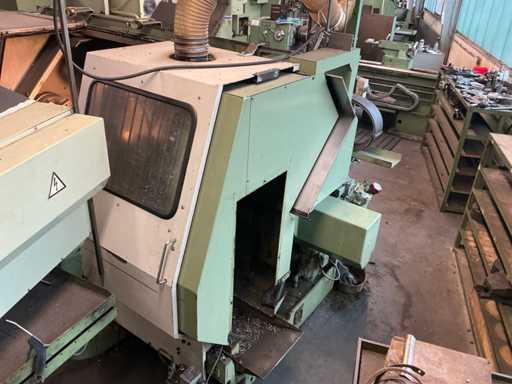

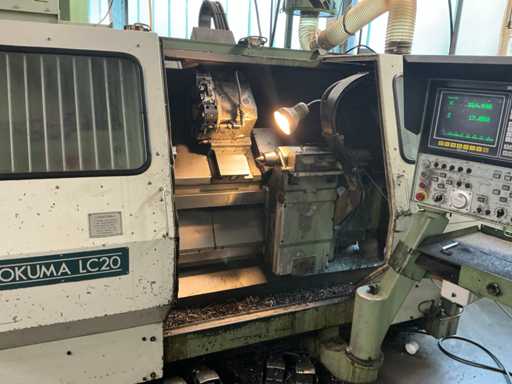

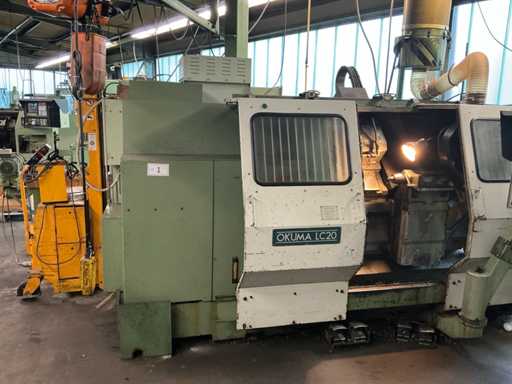

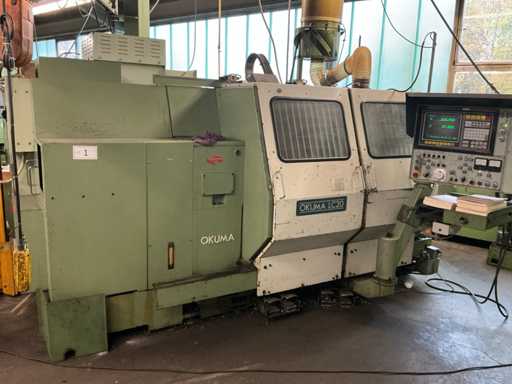

OKUMA - LC20 - CNC lathe with movable tailstock
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- OKUMA
- Type
- LC20
- Turning Ø
- 300mm
- Speed from n=
- 65rpm
- Speed till n=
- 3500rpm
- Number of tool changer stations
- 8

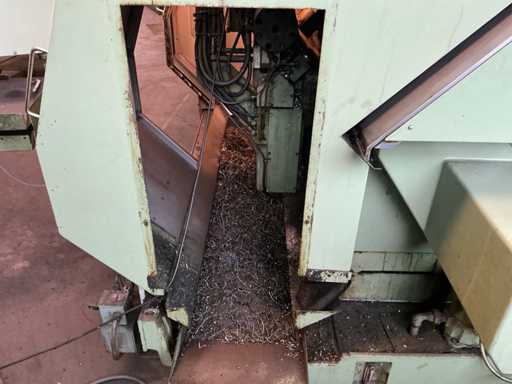

- Chip conveyor
- Yes
- CNC control, brand, type
- Okuma OSP5000L
- Electric connection
- 380V
- Machine weight
- 5000kg
- Dimension l
- 3700mm
- Dimension w
- 2100mm
- Dimension h
- 2850mm
- Terms of delivery
- Loaded on truck
Description
machine

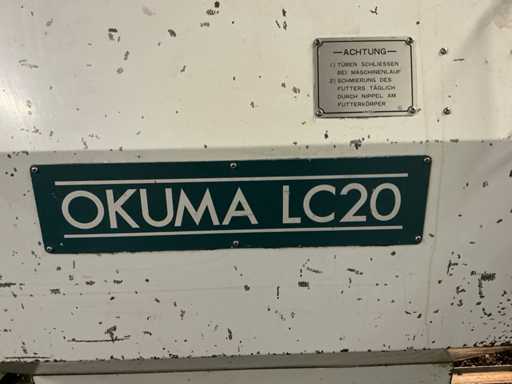

- Manufacturer: Okuma
- Type: LC20-1S with tailstock
- Machine Type: CNC Lathe (Slant Bed)
- Year of construction: approx. 1986 – 1988

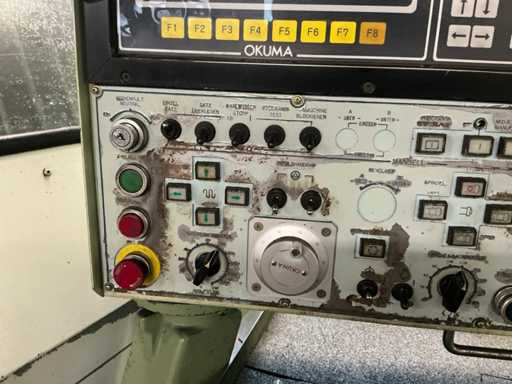

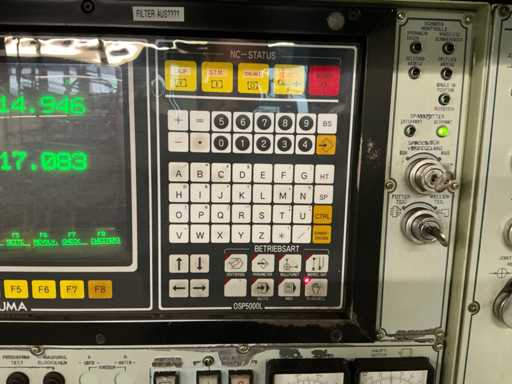

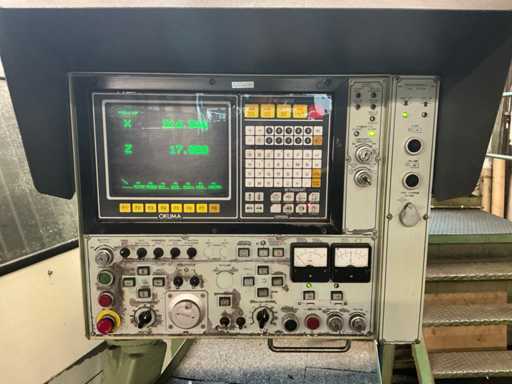

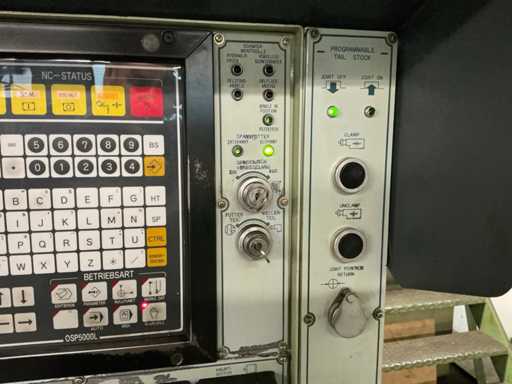

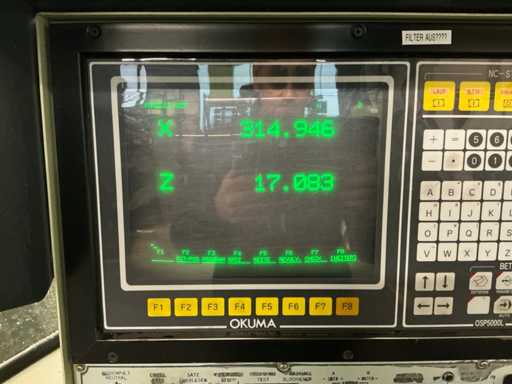

- Control: Okuma OSP5000L
data
- Turning diameter over bed: 400 mm
- Max. turning diameter: 300 mm
- Max. workpiece length: 520 mm
- Spindle speed: 65 – 3500 rpm
- Spindle bore: 52 mm

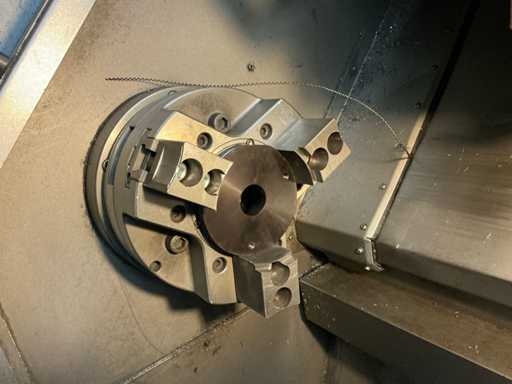

- Spindle Nose: ASA A6
- Drive power main spindle: 11 / 15 kW

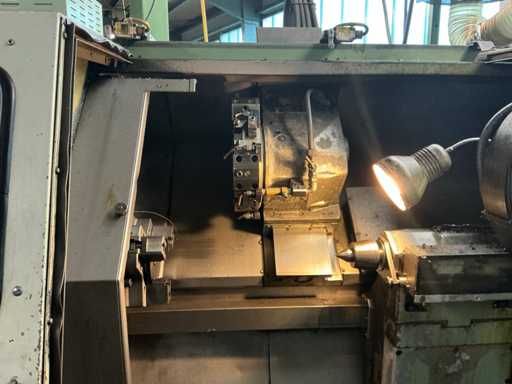

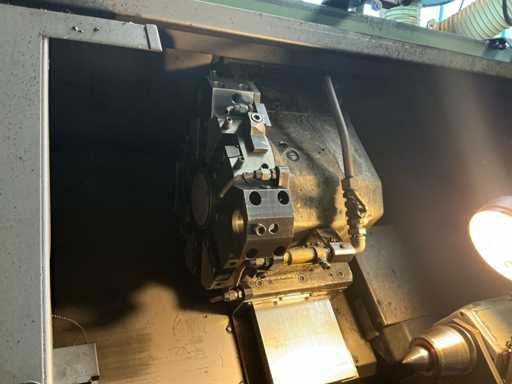

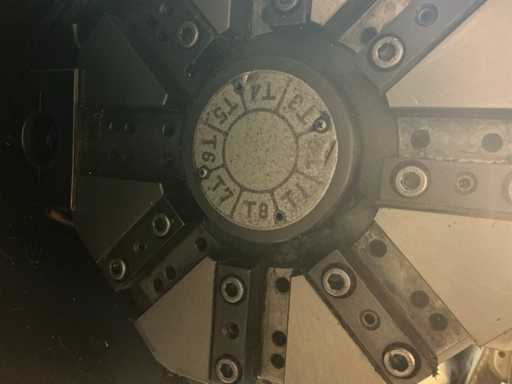

- Number of tool stations: 8
- Travel Z-axis: 520 mm
- X-axis travel: 160 mm
- Rapid traverse (Z / X): 10 m/min / 5 m/min

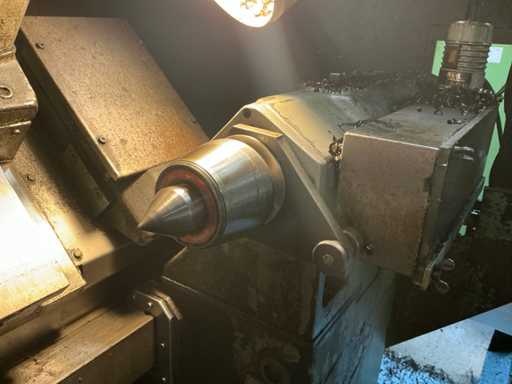

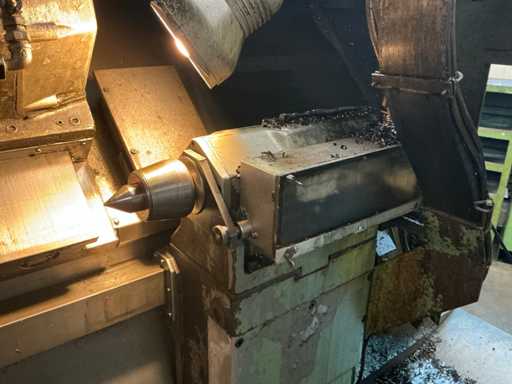

- Tailstock: Quill Ø 90 mm, Stroke 150 mm, Taper MT No. 5
Dimensions
- L×W×H: approx. 3355 × 1830 × 2070 mm
- Weight: approx. 5000 kg

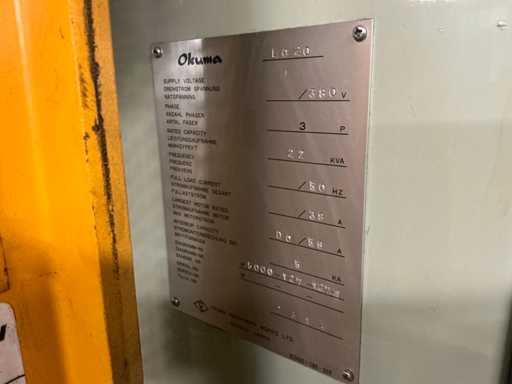

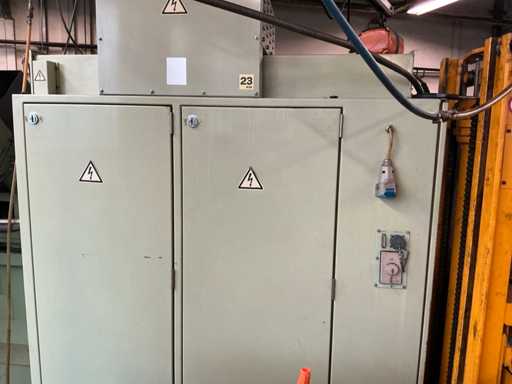

Electrical details
- Voltage: 380 V
- Power consumption: 22 kVA
- Total current consumption: 38 A
- Max. current consumption (largest motor): 58 A
- Short-circuit breaking capacity: 5 kA
Accessories

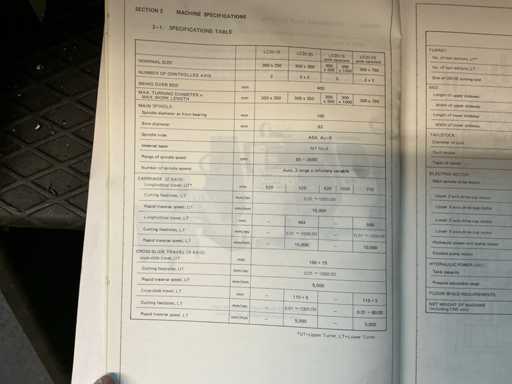

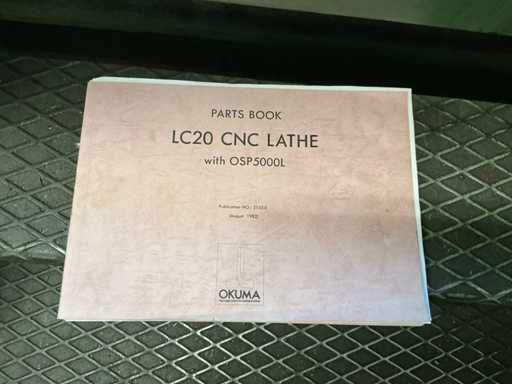

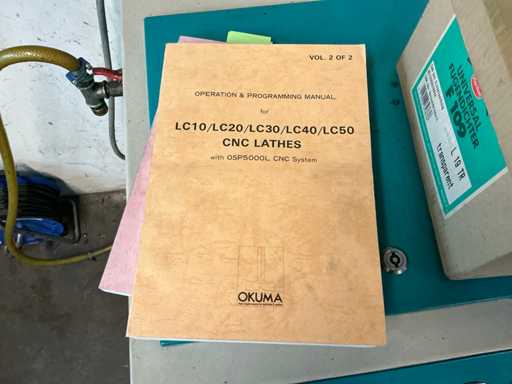

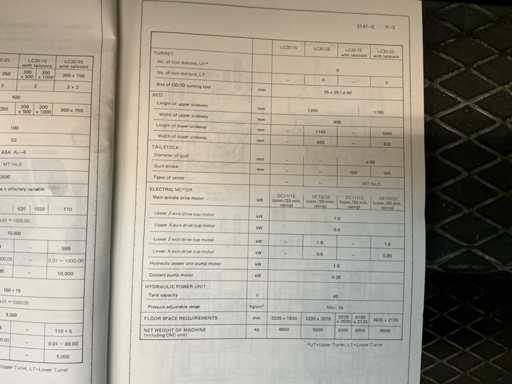

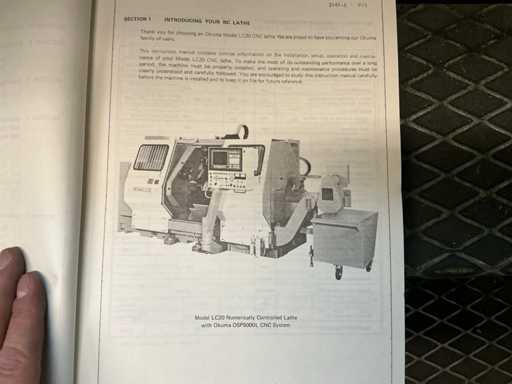

- Documentation / Manuals

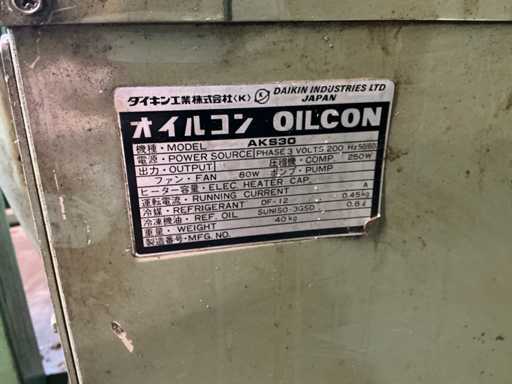

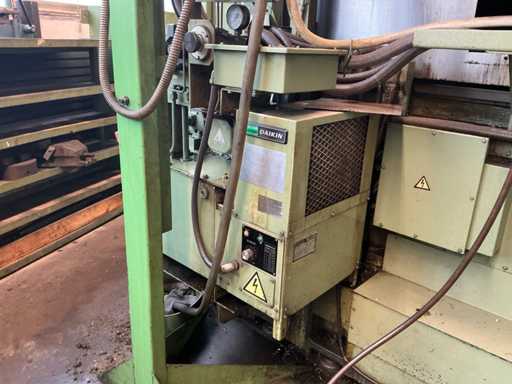

- Internal cooling system
- Lighting unit
- Tailstock (additional guided)

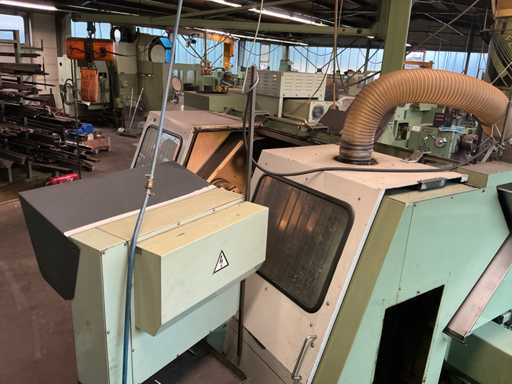

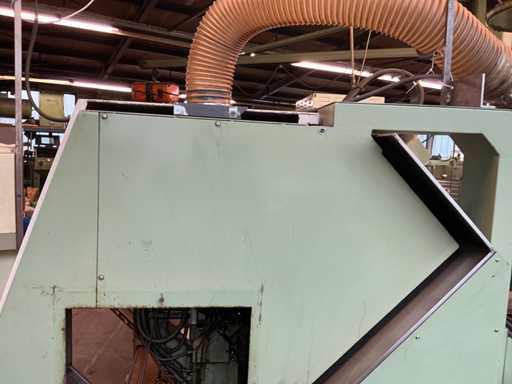

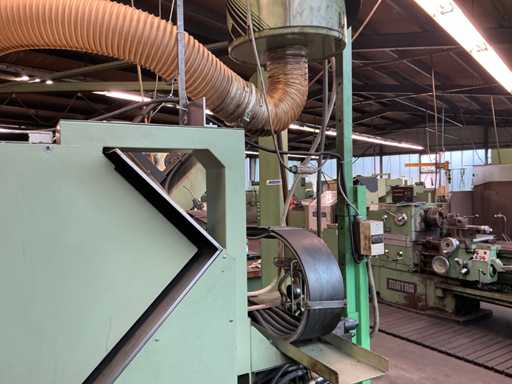

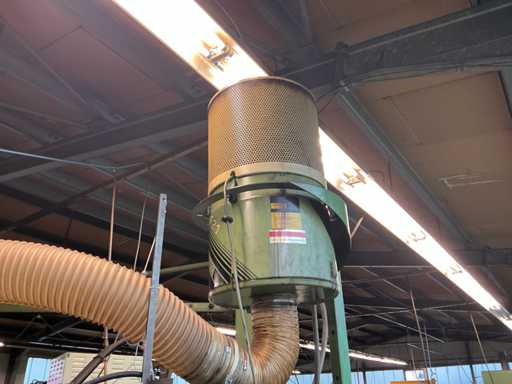

- Exhaust gas extraction / filter attachment
Remarks
Unaudited
Additional details
All items are sold as used and uninspected unless otherwise noted.
Viewing appointments are possible on 28.01.2026 from 09:00 to 15:00. Please note that a viewing is only possible by appointment at anabela.decastro@surplex.com.
Pick-up possible in the following period:
09.02.2026 – 13.02.2026 and 16.02.2026 – 20.02.2026 from 09:00 to 12:00 and from 13:00 to 16:30
Please note: Pick-up is not possible on public holidays and weekends.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
!!! Attention: "The invoice must be created within 24 hours after the end of the auction; if this is not done, we reserve the right to cancel or credit the invoice."
Contact for technical questions:
Andreas Flütter
Project Manager Germany
Gsm: +49
E-mail: andreas.fluetter@surplex.com
Videos

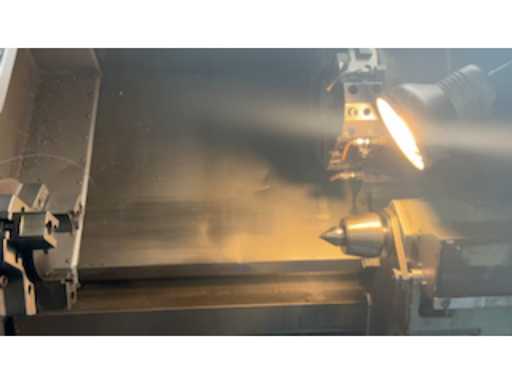

See the details and take a closer look at the item in this video.
