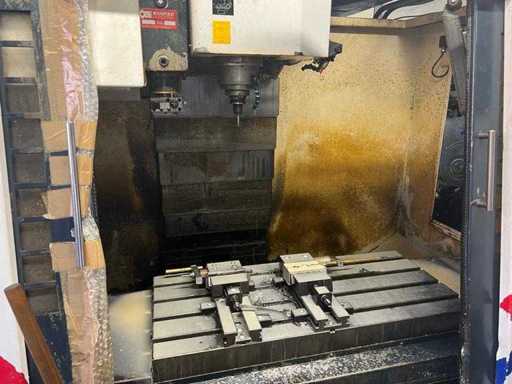

KRYLE KNC 7 Vertical Machining Center
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KRYLE
- Type
- KNC 7
- Year of build
- 1997
- Machine weight
- 3800kg
- Dimension l
- 2400mm
- Dimension w
- 2250mm
- Dimension h
- 2650mm
- Terms of delivery
- Loaded on truck
Description
X / Y / Z axis strokes: 700 × 450 × 500 mm
Table dimensions: 900 × 450 mm
Maximum load on table: 500 kg
T-slots: 5 × 18 mm (80 mm centre distance)
Spindle speed: 60 – 8,000 rpm
Spindle power: 7.5 kW (continuous) / 11 kW (30 min)
Spindle cone: BT 40
Tool changer: umbrella carousel type, 20 tools
Fast feeds: 24 m/min (X/Y) – 20 m/min (Z)
Positioning accuracy: ± 0.005 mm
Repeatability: ± 0.003 mm
Weight (kg): 3800
Year & Manufacturer: 1997 – KRYLE
Table dimensions: 900 × 450 mm
Maximum load on table: 500 kg
T-slots: 5 × 18 mm (80 mm centre distance)
Spindle speed: 60 – 8,000 rpm
Spindle power: 7.5 kW (continuous) / 11 kW (30 min)
Spindle cone: BT 40
Tool changer: umbrella carousel type, 20 tools
Fast feeds: 24 m/min (X/Y) – 20 m/min (Z)
Positioning accuracy: ± 0.005 mm
Repeatability: ± 0.003 mm
Weight (kg): 3800
Year & Manufacturer: 1997 – KRYLE
Additional details
The dimensions and weights indicated for each batch are provided as a guide and correspond to the current configuration (assembled machine).
Disassembly, handling or packaging operations can change this data and impact transport conditions.
Before any transport is organised, buyers are invited to check the real characteristics of their lots directly with the seller or the company in charge of dismantling.
