HURON Graffenstaden S.A. (France) - VX 12 - CNC Vertical Machining Center - 2008
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- HURON Graffenstaden S.A. (France)
- Type
- VX 12
- Year of build
- 2008

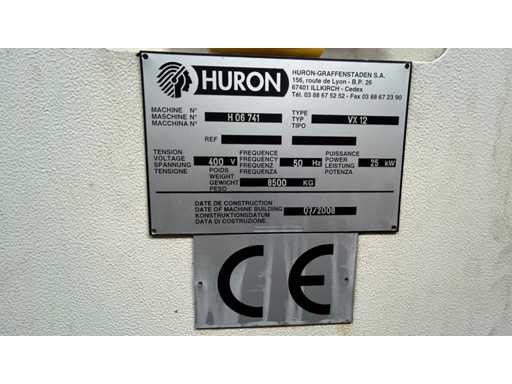

- Serial number
- H06741
- Taper iso
- ISO 40
- Travel x-axis
- 1200mm
- Travel y-axis
- 700mm
- Travel z-axis
- 700mm
- Speed from n=
- 40rpm
- Speed till n=
- 8000rpm
- CNC control, brand, type
- SIEMENS Sinumerik

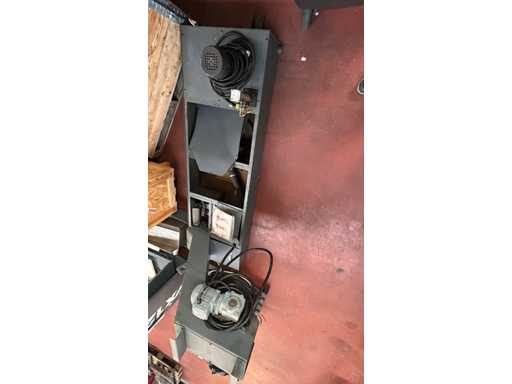

- Chip conveyor
- Yes
- Coolant pump
- Yes
- Engine power (kW)
- 25kW
- Electric connection
- 400V

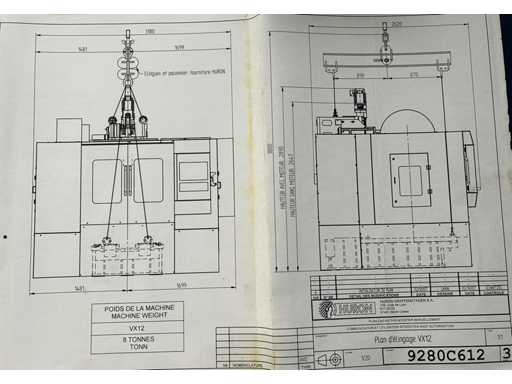

- Machine weight
- 8500kg
- Dimension l
- 3400mm
- Dimension w
- 2500mm
- Dimension h
- 2700mm
- Terms of delivery
- Loaded on truck
Description

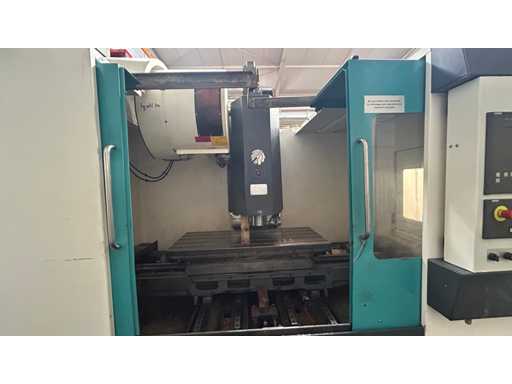

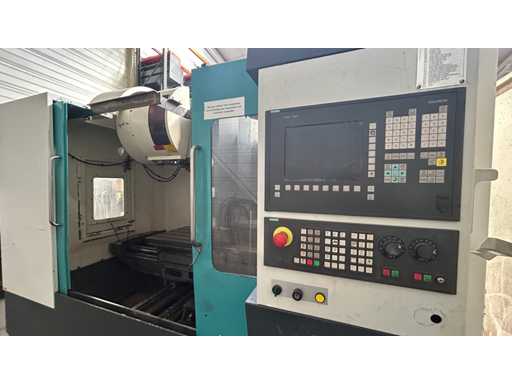

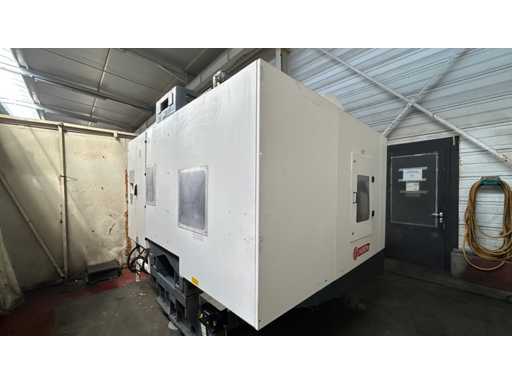

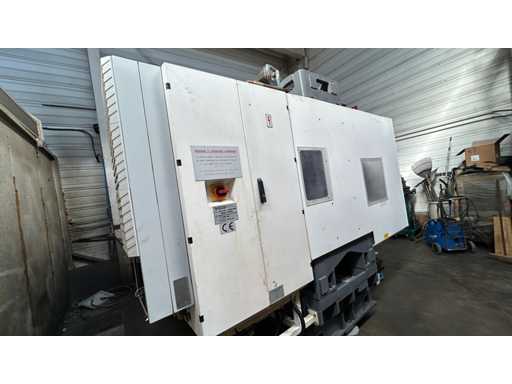

HURON VX12 vertical machining center equipped with a Siemens Sinumerik control and a 24-tool magazine. French-made machine, rigid and precise, suitable for intensive machining of metal parts.

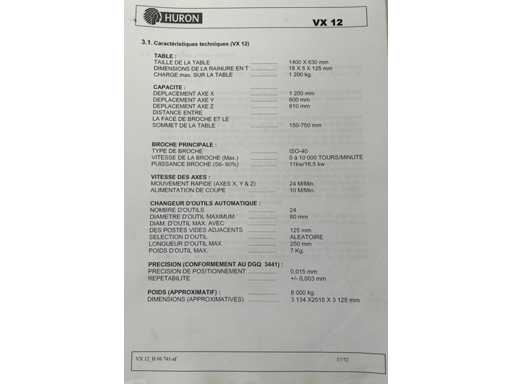

Key features:
• Strokes: X = 1200 mm / Y = 700 mm / Z = 700 mm

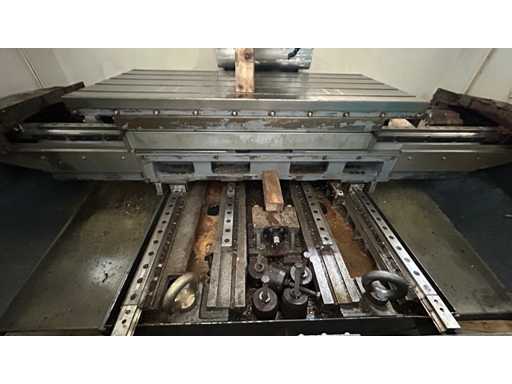

• Table: 1400 × 700 mm
• Spindle speed: 40 – 8000 rpm
• Cone: ISO 40
• Spindle power: 25 kW

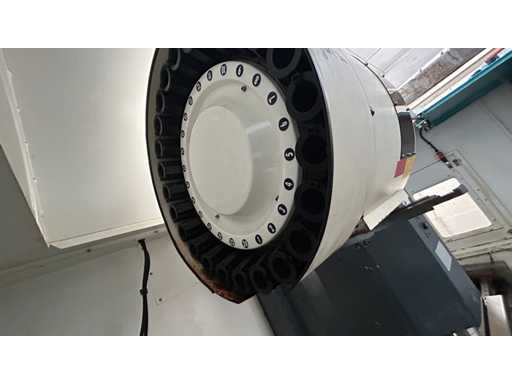

• Tool magazine: 24 positions
• Fast feeds: 20 m/min
• Weight: 8500 kg
• Power supply: 400 V – 50 Hz
Equipment:

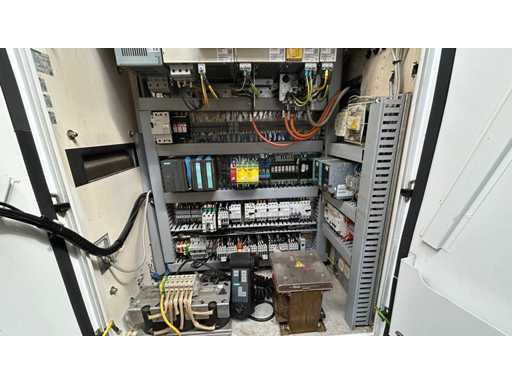

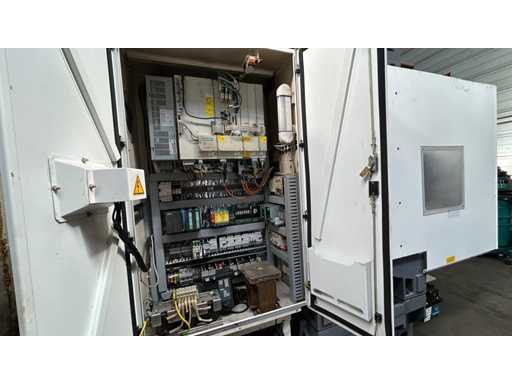

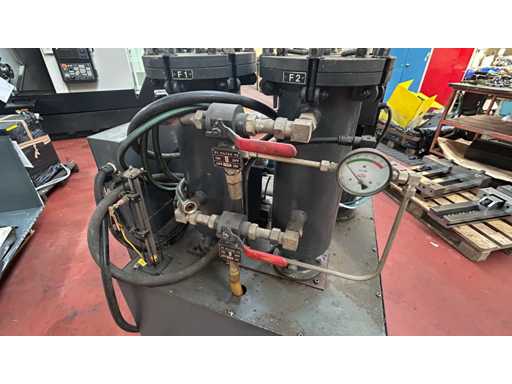

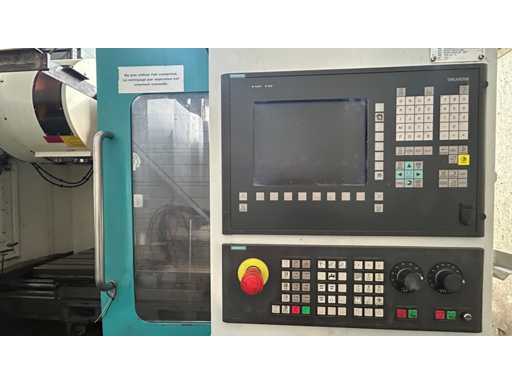

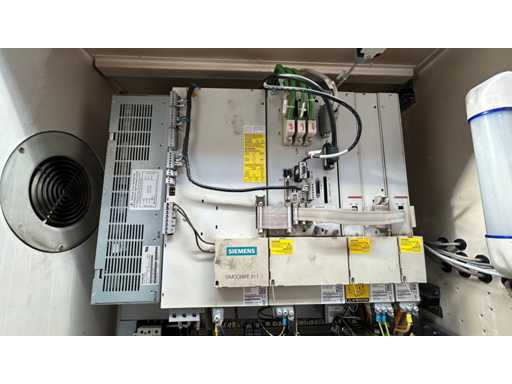

Siemens Sinumerik control – Le Cosine 25 kVA transformer – ISO 40 spindle – 24-tool magazine – Integrated coolant – Complete fairing.

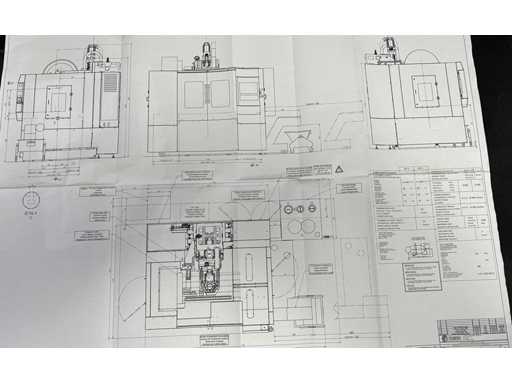

Dimensions (mm): 3400 × 2500 × 2700
Notes: Year 2008 – Used machine in good working order.
Additional details
At the request of interested parties, online auction of metalworking machinery.
The dimensions and weights shown for each batch are provided as a guide and correspond to the current (assembled) condition of the equipment.
Disassembly, handling or packaging can change these values and impact transport conditions.
Prior to any transport booking, buyers are asked to check the actual specifications of the lots directly with the seller or the dismantling company to ensure proper organisation.
Pick-ups will be made after full payment of the invoice and only by appointment.
