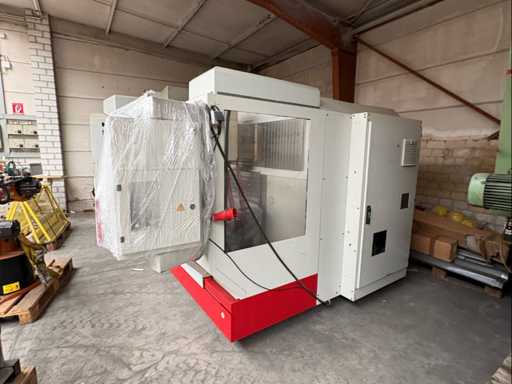

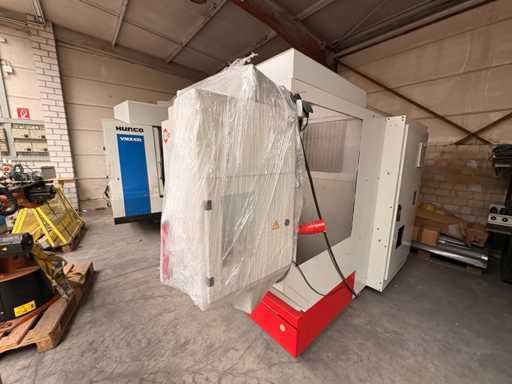

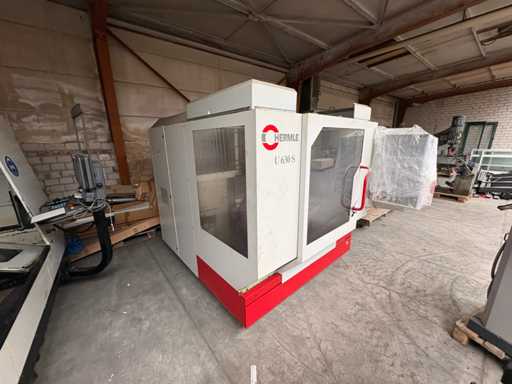

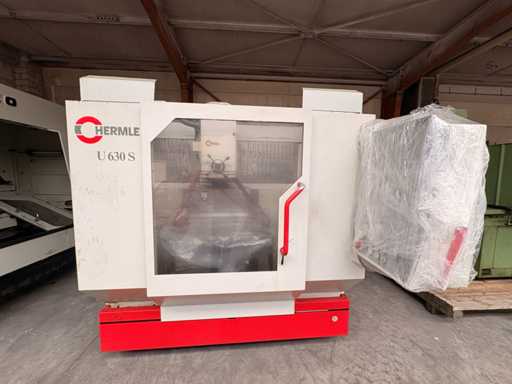

HERMLE AG U 630 S CNC universal milling machine
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Hermle AG
- Type
- U 630 S
- Year of build
- 2002
- Serial number
- 15224
- Workpiece weight max.
- 300kg
- Coolant pump
- Yes
- Engine power (kW)
- 15kW
- Electric connection
- 400V
- Manual present
- Yes
- Machine weight
- 4500kg
- Terms of delivery
- Ex foundation-unpackaged
Description
Hermle U 630 S
Machine Type: CNC Universal Milling Machine / Vertical Machining Center
Manufacturer: Hermle AG, Gosheim, Germany
Model: U 630 S
Year of Make: 2002
Serial Number: 15224
Control: Heidenhain TNC 426
Axes: 3-axis (optional 4th axis with rotary table possible)
Travel:
X = 630 mm
Y = 500 mm
Z = 450 mm

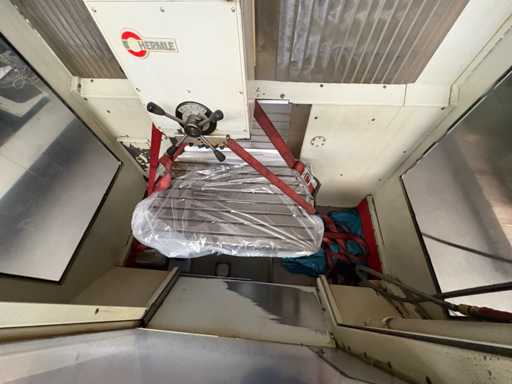

Table size: approx. 800 × 500 mm
Max. workpiece weight: approx. 300 kg
Spindle:
Speed range up to 12,000 rpm
Tool holder SK40 or HSK-A63
Drive power approx. 10–15 kW
Tool changer: Automatic magazine changer, approx. 20–30 places
Cooling: Integrated cooling lubricant system
Accuracy:
Positioning accuracy ±0.005 mm
Repeatability ±0.002 mm

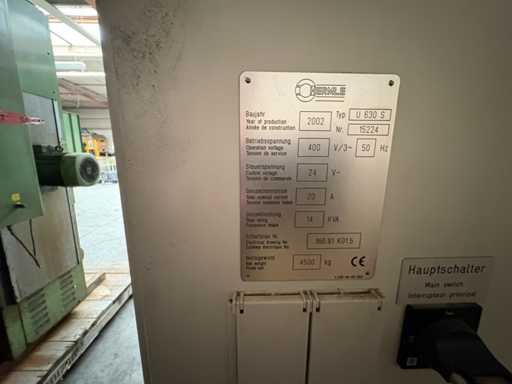

Supply:

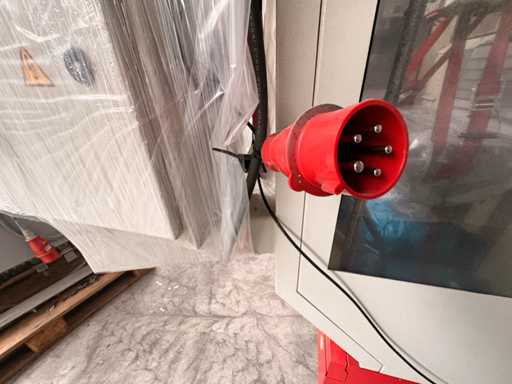

Operating voltage 400 V / 50 Hz
Control voltage 24 V
Rated current 20 A
Connected load 14 kVA
Machine weight: approx. 4,500 kg
Safety equipment:
Emergency stop button
Door
lock Full cladding for safe operation
Construction: Compact, vibration-damping cast iron bed for high stability and precision
Applications:
Tool and mould making
Mechanical and fixture construction
Precision engineering, training and prototyping
Short conclusion:
The Hermle U 630 S is a high-quality, compact and precise CNC milling machine for versatile applications in metalworking. It offers high rigidity, accuracy and reliability while at the same time offering a space-saving design.
