FRIEM PSU - 2024 - New Industrial Power Conversion Kit
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- FRIEM PSU
- Year of build
- 2024
- Serial number
- 7660
- Machine weight
- 20000kg
- Terms of delivery
- Loaded on truck
Description
NEW Friem PSU plug & play container industrial power conversion set with TMC 3000 kVA 20 kV HTA AC dry transformer, 2 x 2300 A DC HIGH CURRENT DC thyristor power rectifier (HTA-BT-DC high intensity) and harmonic filtration.

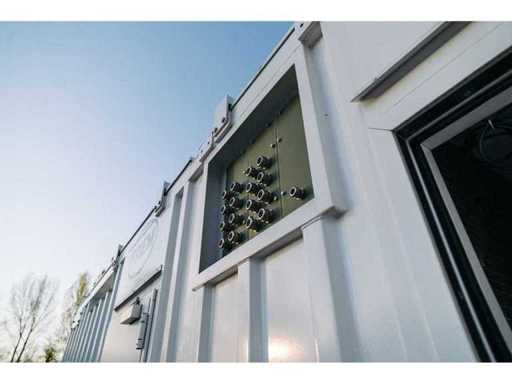

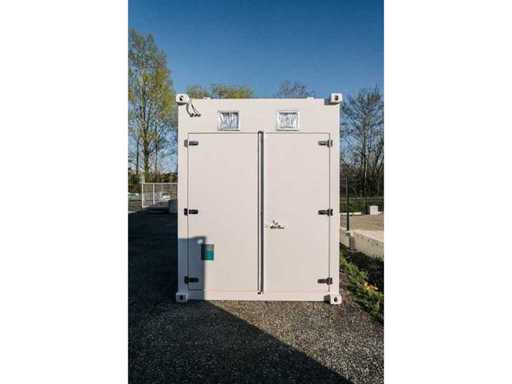

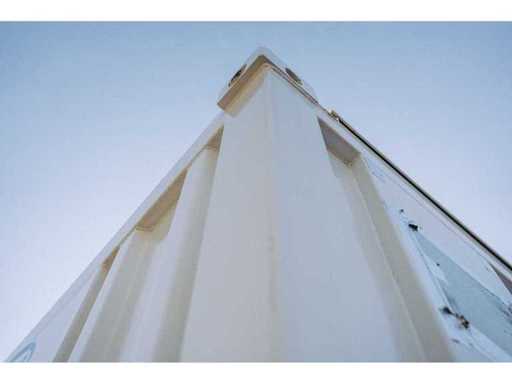

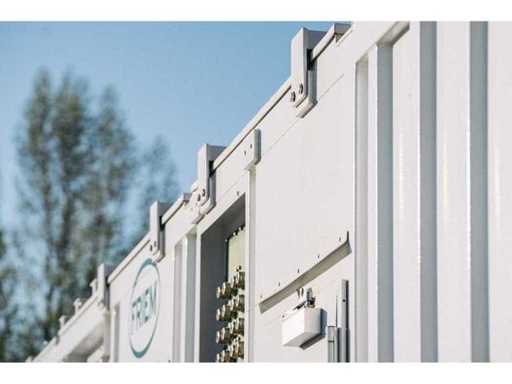

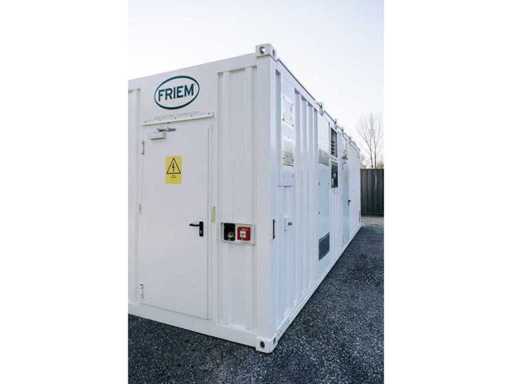

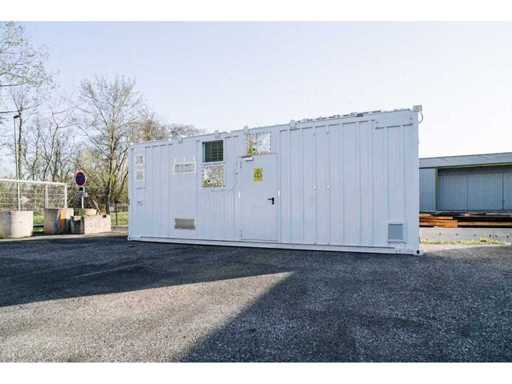

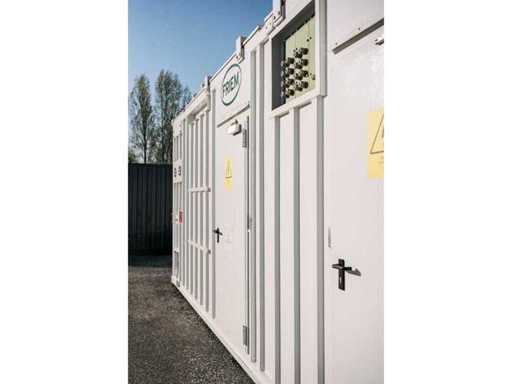

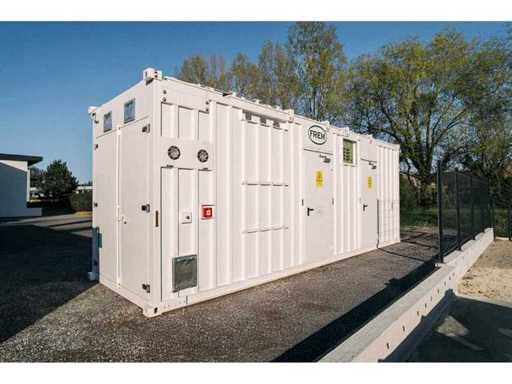

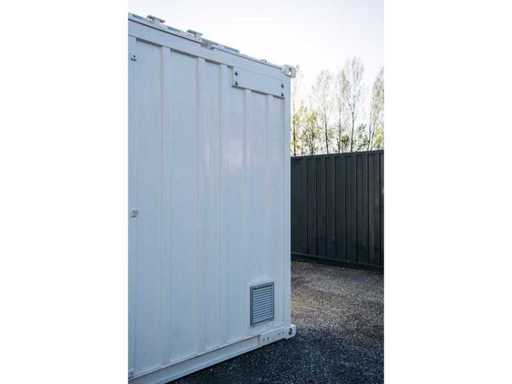

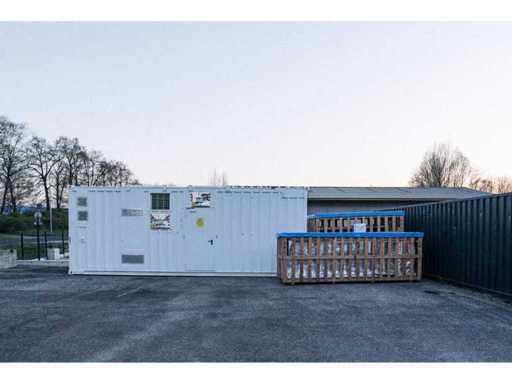

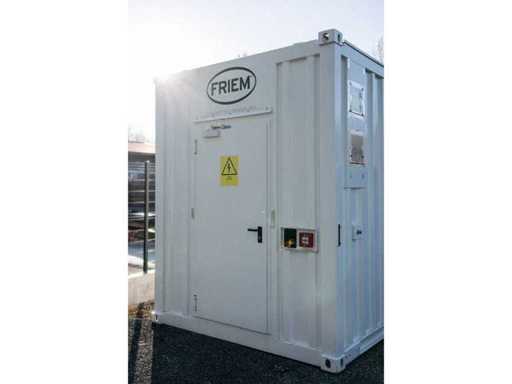

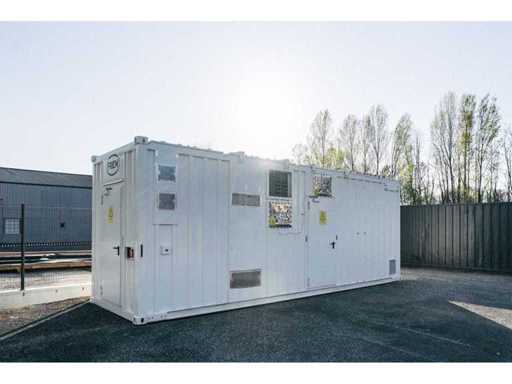

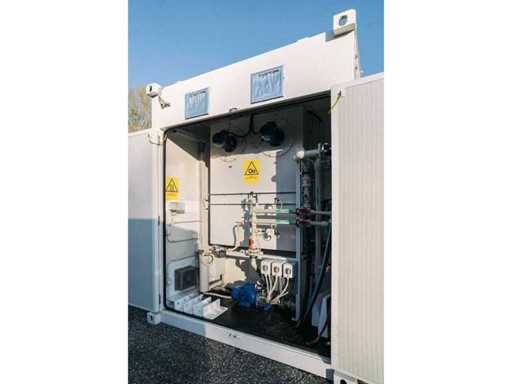

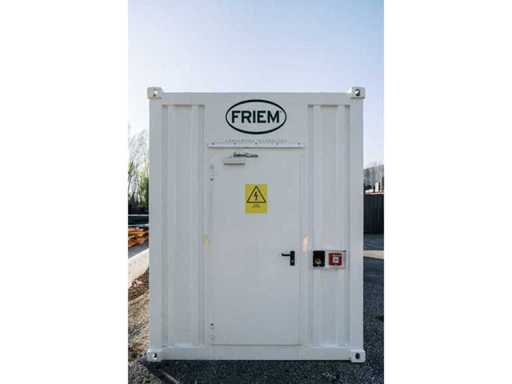

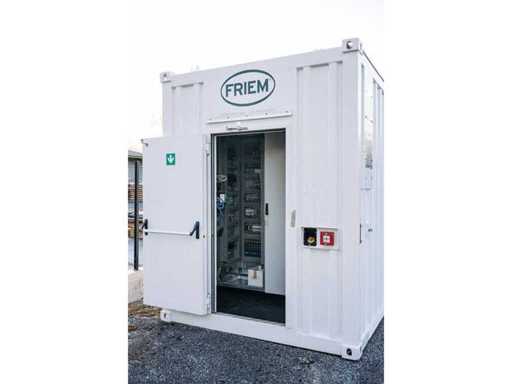

1 - Friem 30" ISO container:

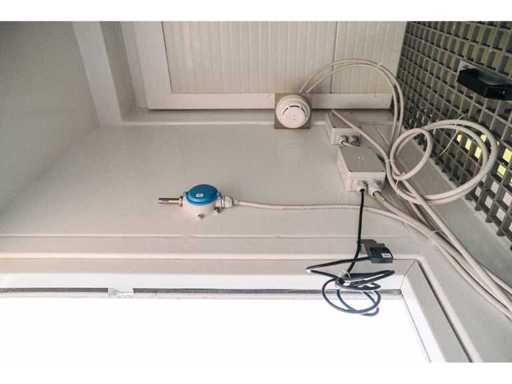

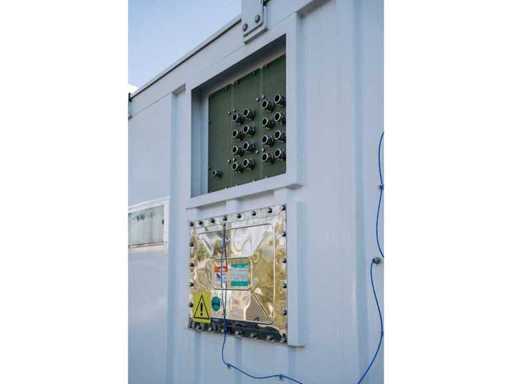

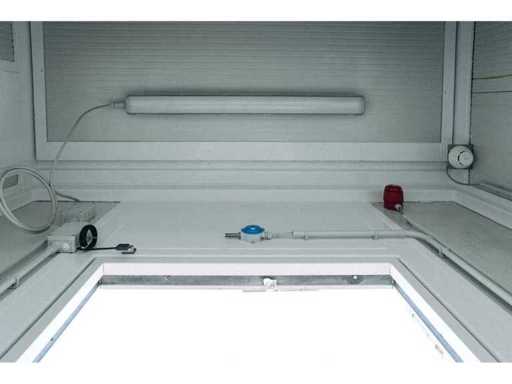

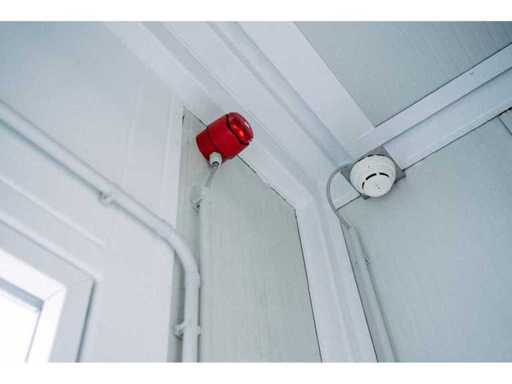

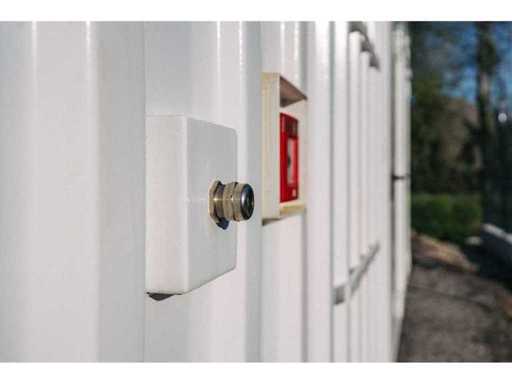

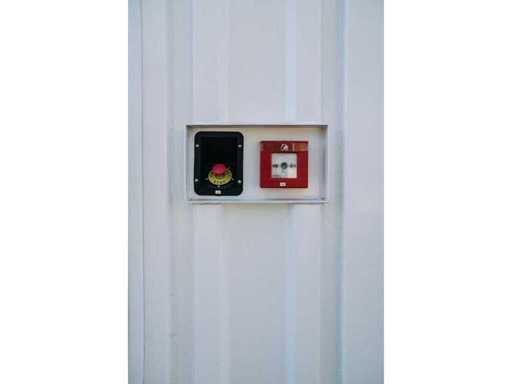

Transport dimensions L 8.50 m x W 2.55 m x H 3.25 m, weight 20,000 kg. 4 insulated parts with fire doors, fire and humidity alarm and detection system, removable roof to accommodate the cooling unit.
Part 1:

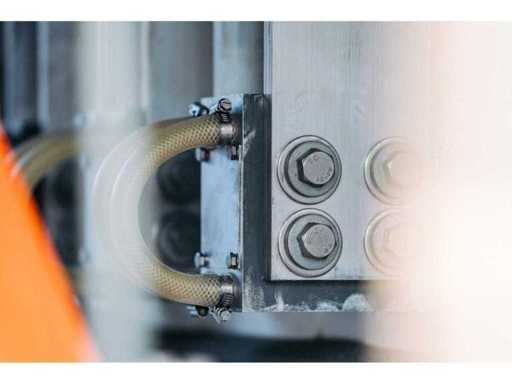

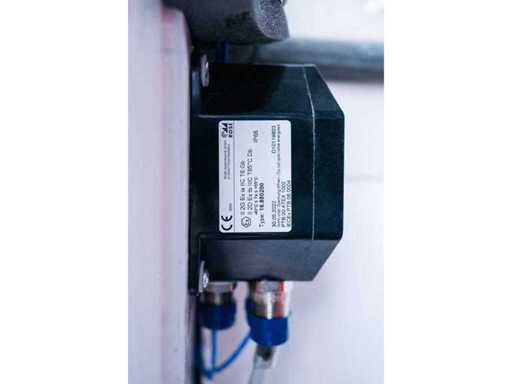

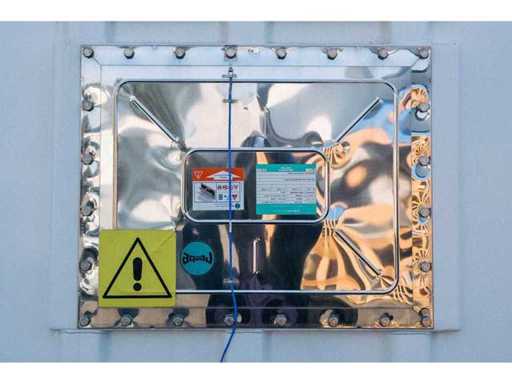

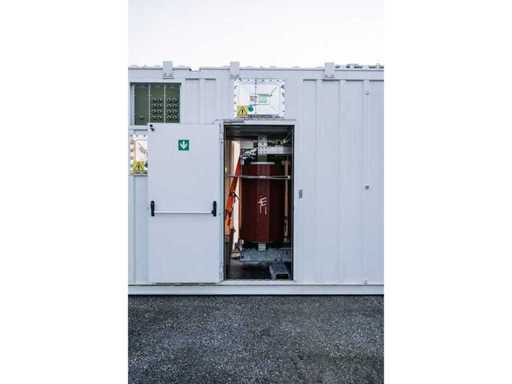

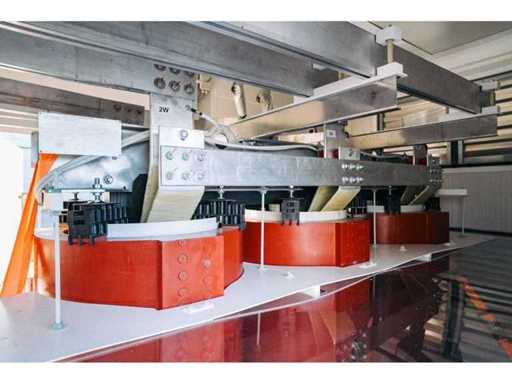

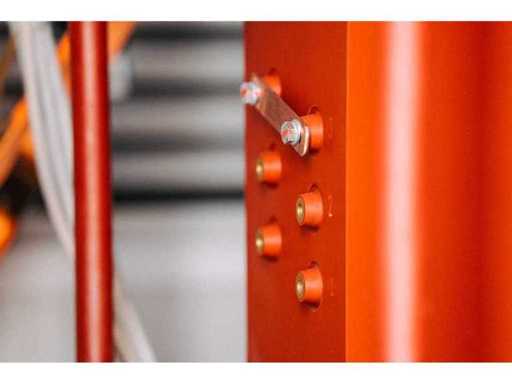

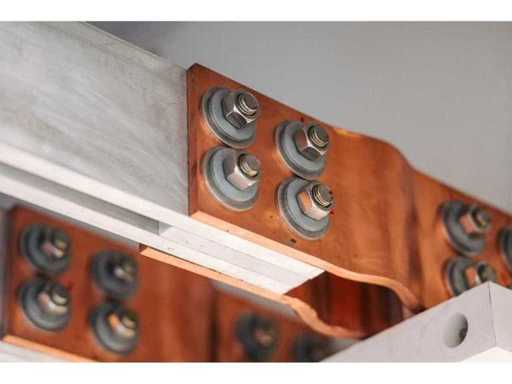

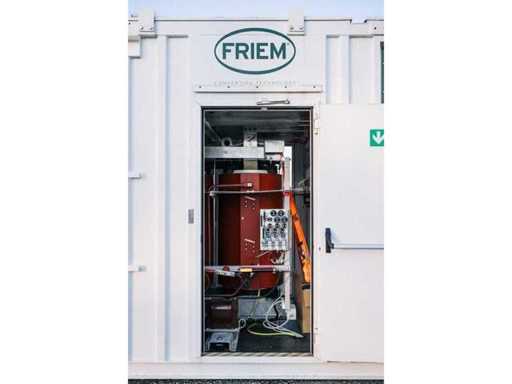

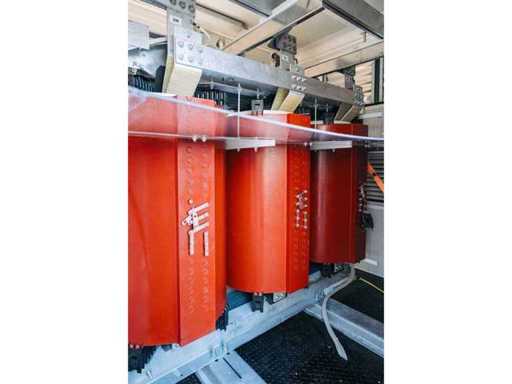

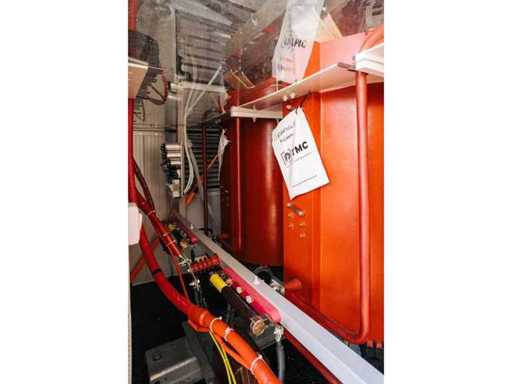

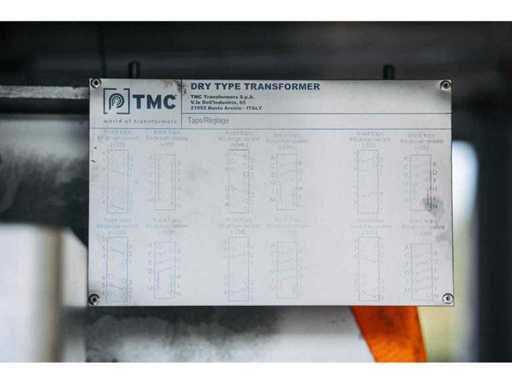

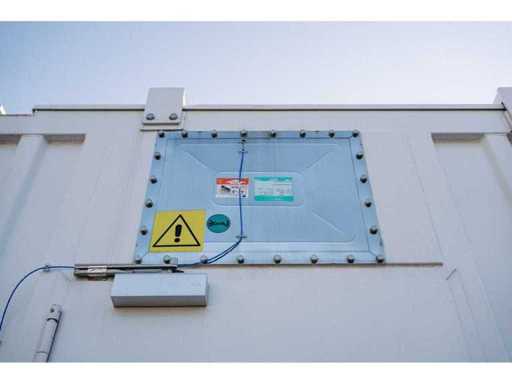

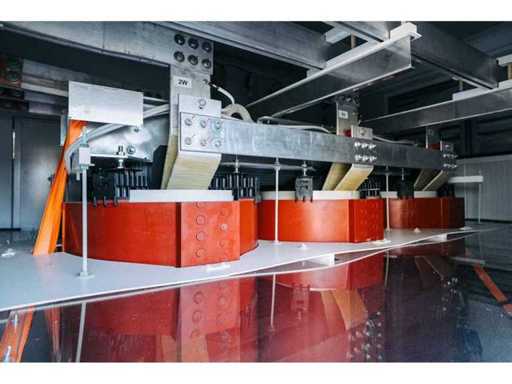

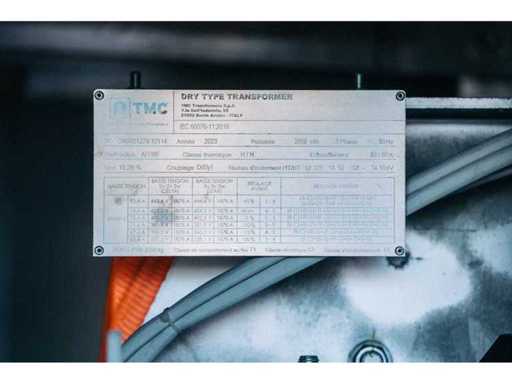

TMC 2889 kVA dry type high voltage power transformer, Graetz bridges, three-phase 50 Hz IEC 60076-11:2018 standard, input voltage 20,000 V, Dd0y1 coupling, LV voltage 330 to 445 V adjustable, air/glycol water cooling, environmental class E4/C3/F1, weight 6200 kg. Transmission by cooled copper bars. Rembe EGV wind explosion door with ES signaling unit, forced ventilation and closed-circuit air/water cooler.
Part 2:

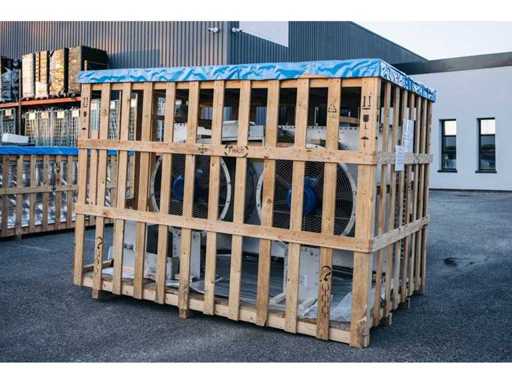

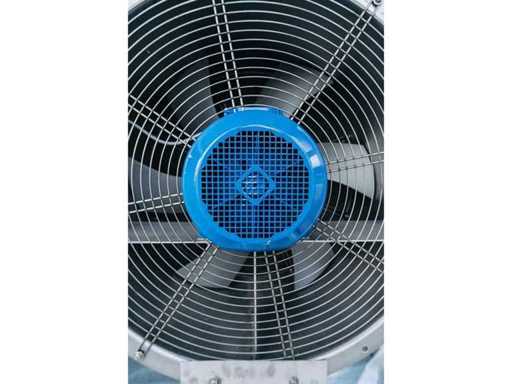

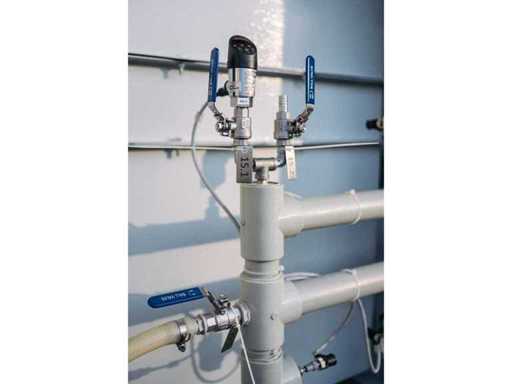

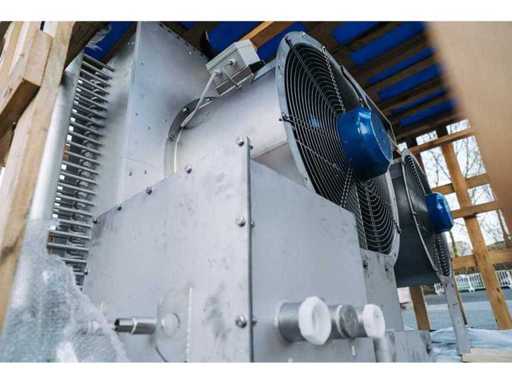

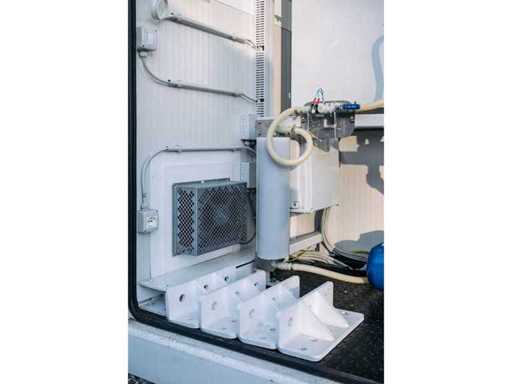

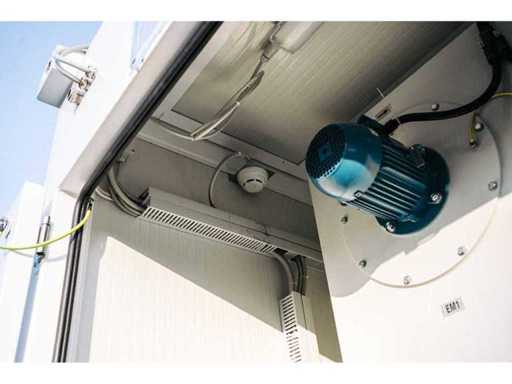

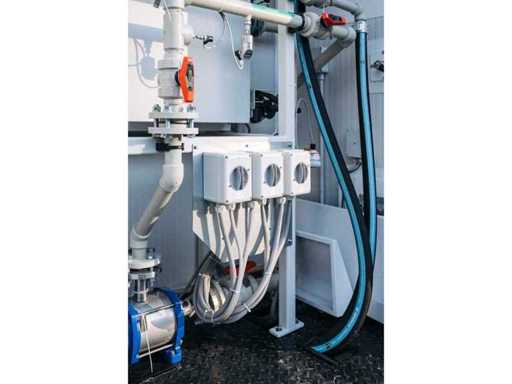

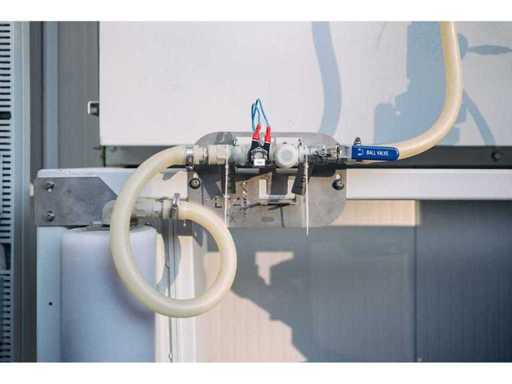

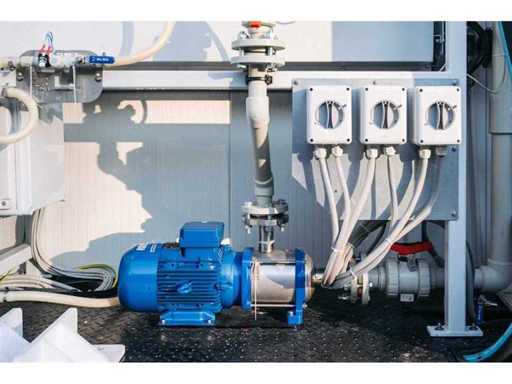

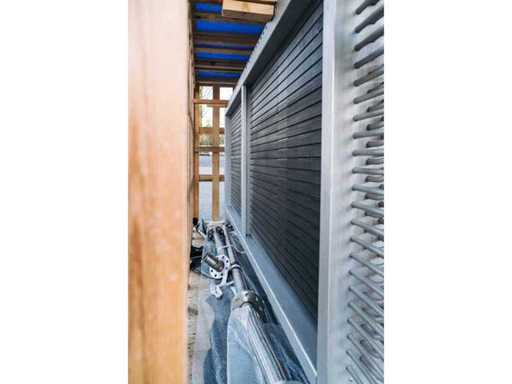

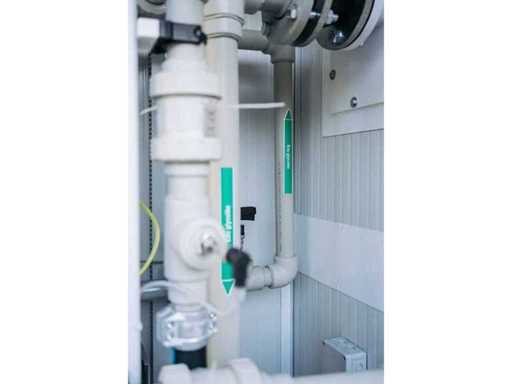

Forced air coolers and automatic brine injection pump system.
Part 3:

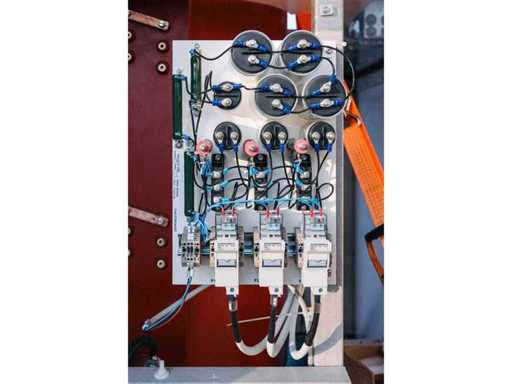

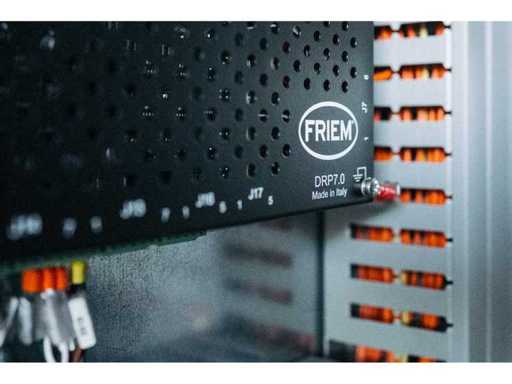

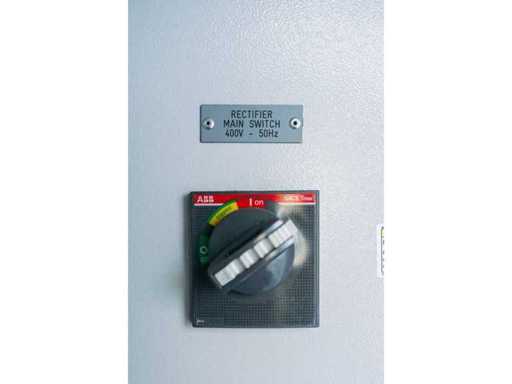

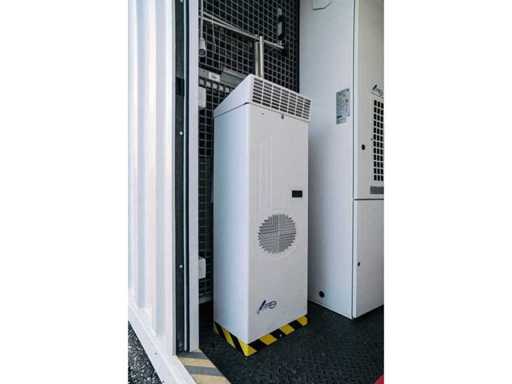

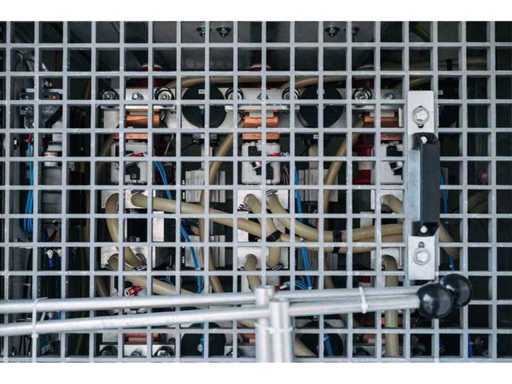

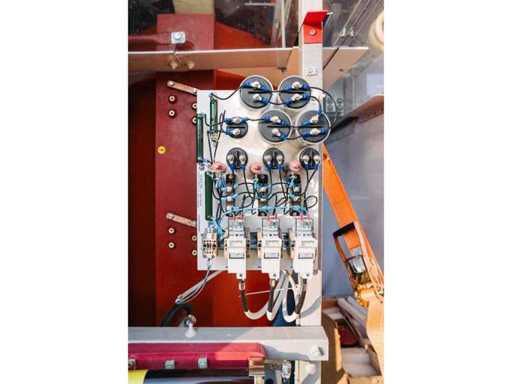

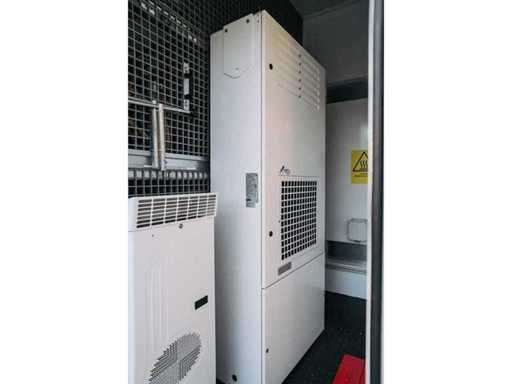

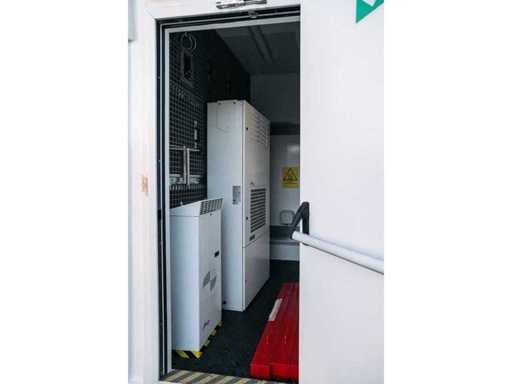

DC power rectifier with 2 Coet SFI122 disconnectors (2 x 2300 A), 2 Texa Industrie ATEX air conditioning systems, Friem thyristor grinder 2 x DRP 7.0, harmonic filters, Rembe EGV explosion door with ES signaling unit.
Part 4:

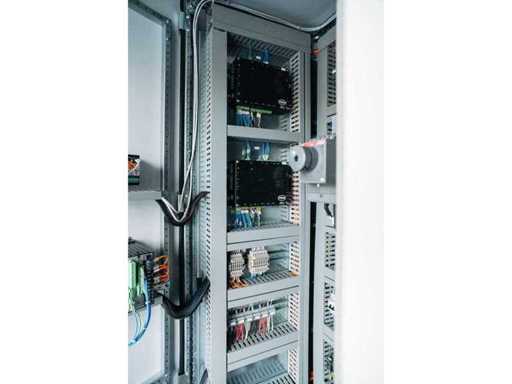

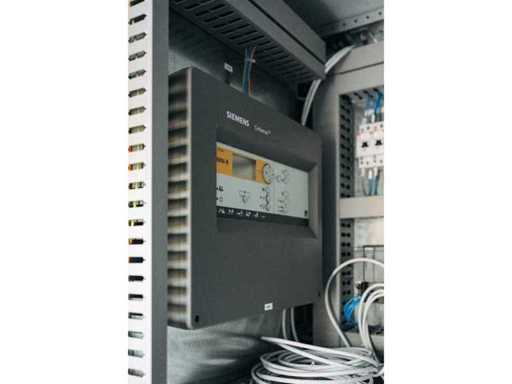

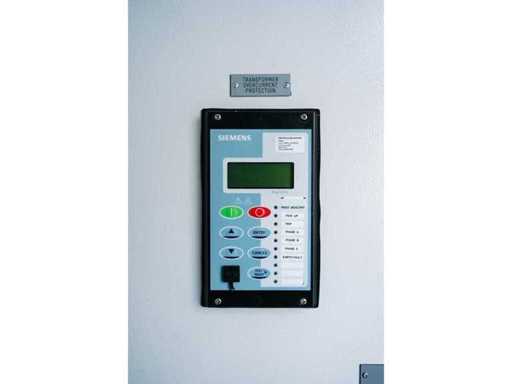

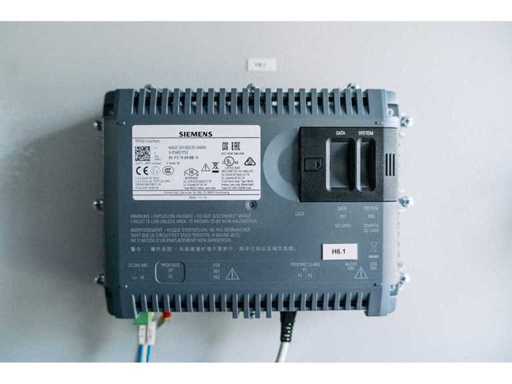

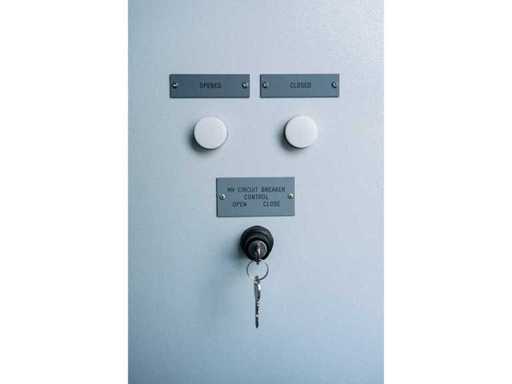

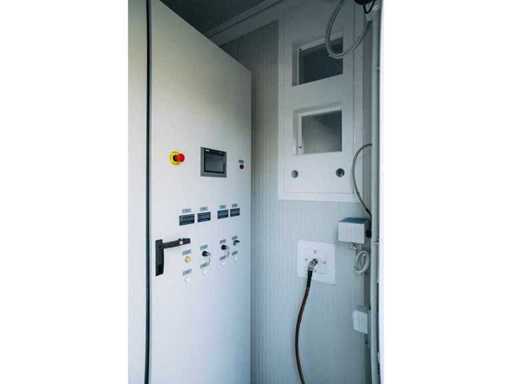

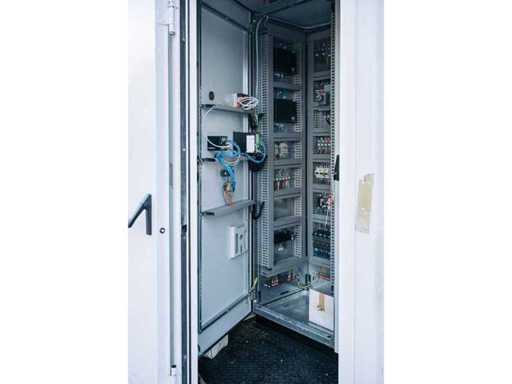

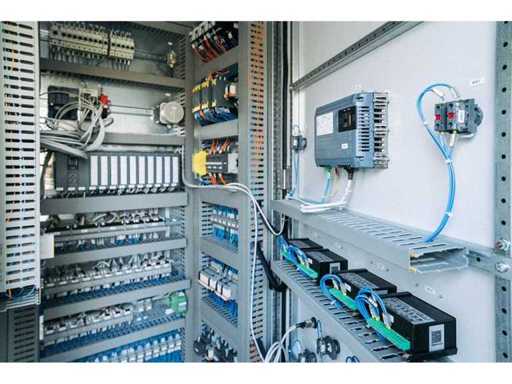

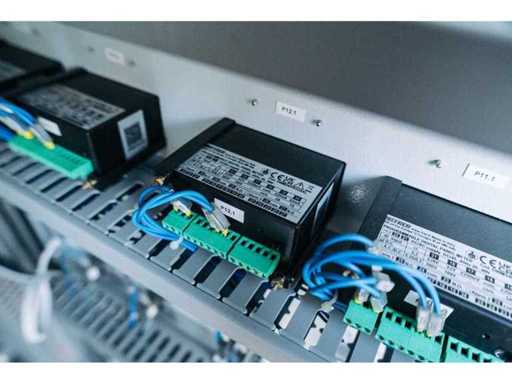

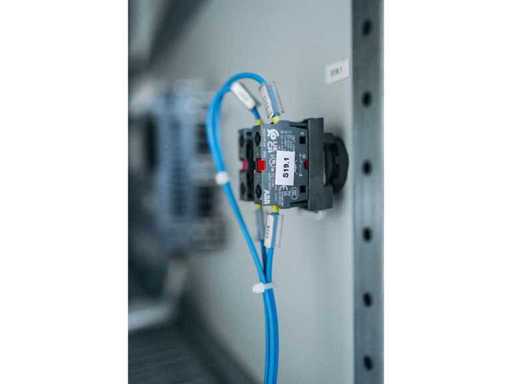

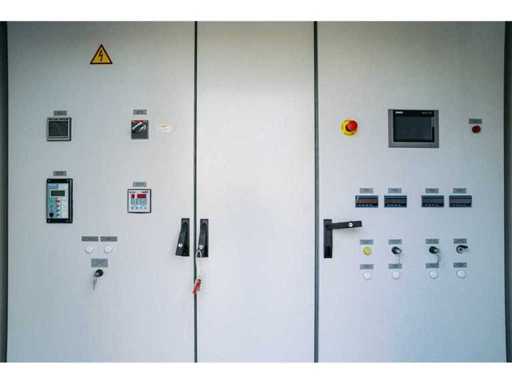

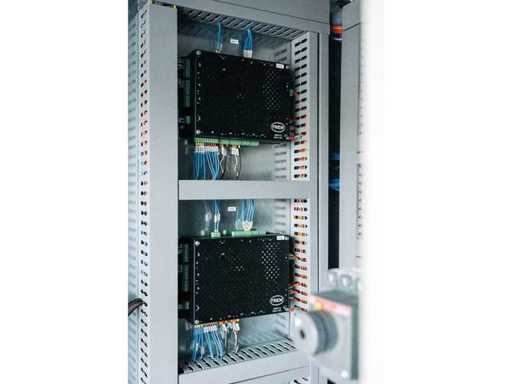

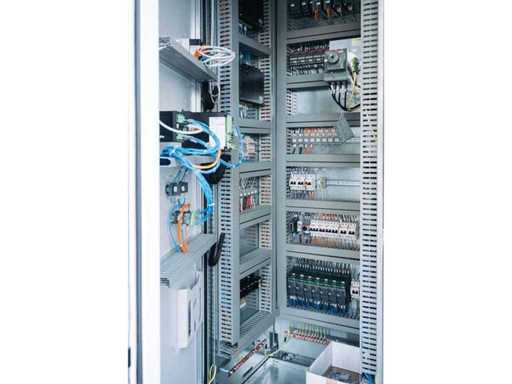

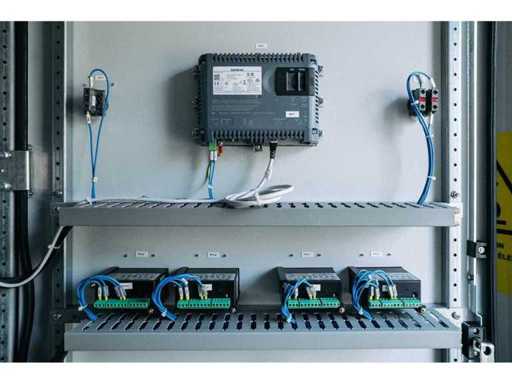

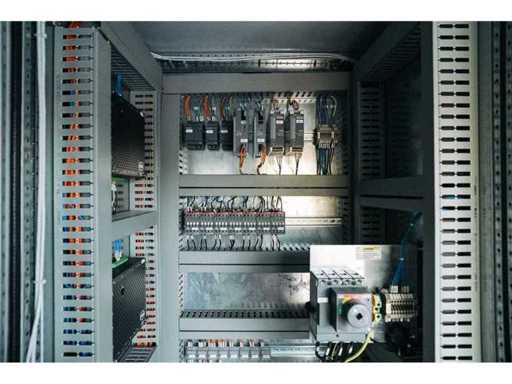

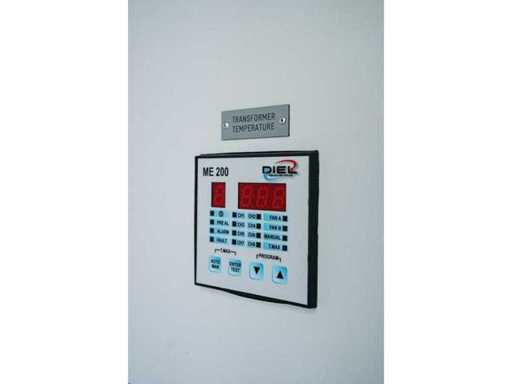

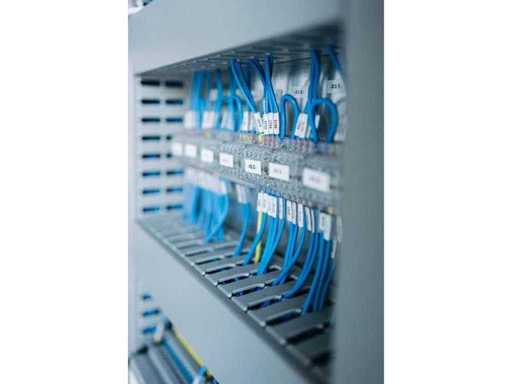

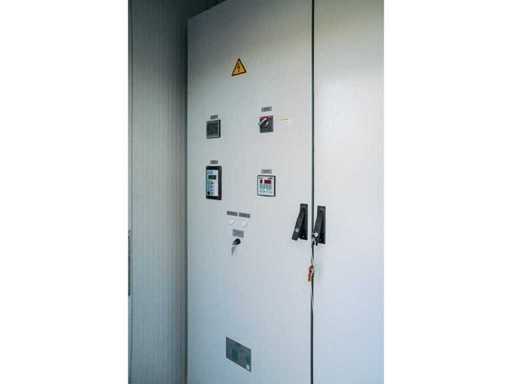

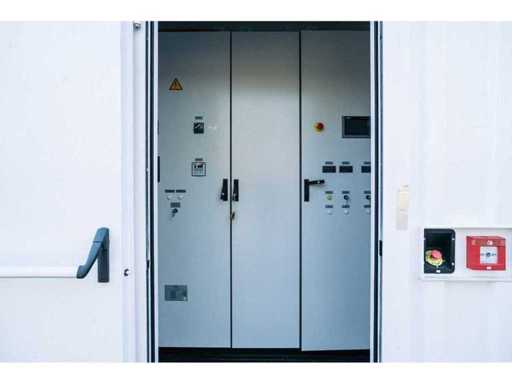

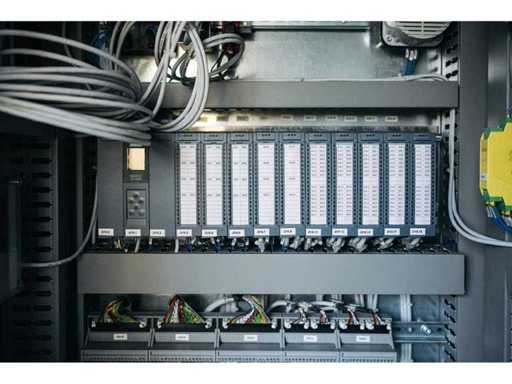

3-section electrical control cabinets including PLCs, Siemens/ABB control units, fire control panel, transformer protection, DRP 7.0 grinding modules.

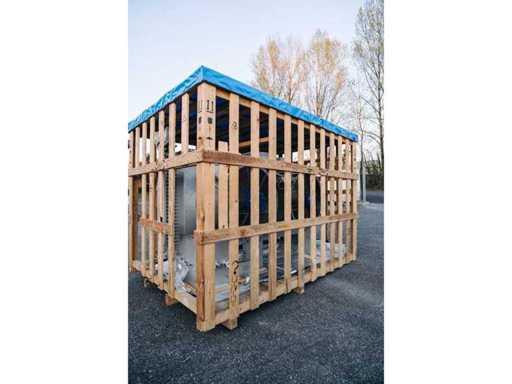

2 - Protective box:

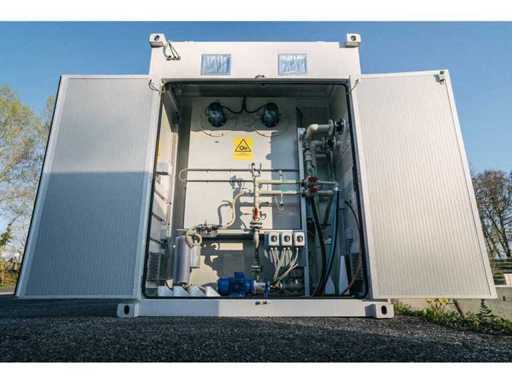

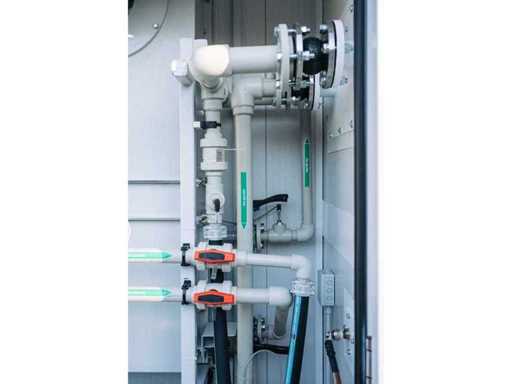

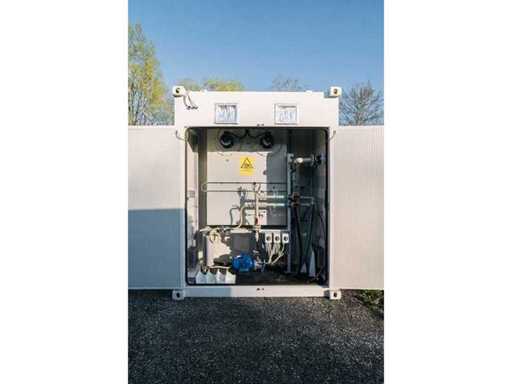

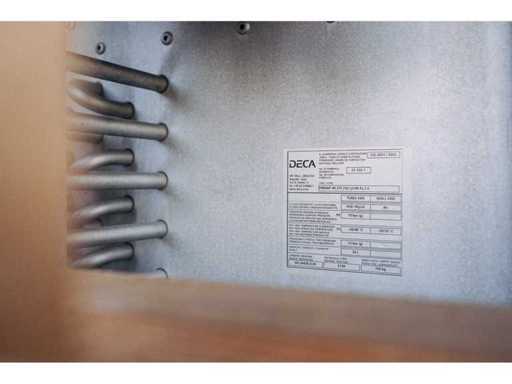

Dimensions L 315 x W 210 x H 228 cm, weight 1200 kg including stainless steel heat exchanger with 3 m plates, air conditioning, electrical control cabinets, stainless steel tank and coupling flanges.
3 - Protective box:

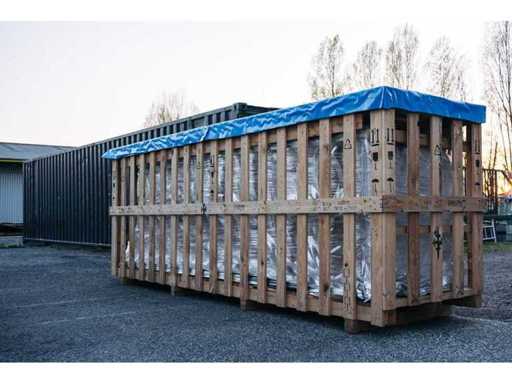

Dimensions L 445 x W 110 x H 158 cm, weight 750 kg including galvanised aluminium staircase and railing.
1 - Friem 30" ISO container:
Transport dimensions L 8.50 m x W 2.55 m x H 3.25 m, weight 20,000 kg. 4 insulated parts with fire doors, fire and humidity alarm and detection system, removable roof to accommodate the cooling unit.
Part 1:
TMC 2889 kVA dry type high voltage power transformer, Graetz bridges, three-phase 50 Hz IEC 60076-11:2018 standard, input voltage 20,000 V, Dd0y1 coupling, LV voltage 330 to 445 V adjustable, air/glycol water cooling, environmental class E4/C3/F1, weight 6200 kg. Transmission by cooled copper bars. Rembe EGV wind explosion door with ES signaling unit, forced ventilation and closed-circuit air/water cooler.
Part 2:
Forced air coolers and automatic brine injection pump system.
Part 3:
DC power rectifier with 2 Coet SFI122 disconnectors (2 x 2300 A), 2 Texa Industrie ATEX air conditioning systems, Friem thyristor grinder 2 x DRP 7.0, harmonic filters, Rembe EGV explosion door with ES signaling unit.
Part 4:
3-section electrical control cabinets including PLCs, Siemens/ABB control units, fire control panel, transformer protection, DRP 7.0 grinding modules.
2 - Protective box:
Dimensions L 315 x W 210 x H 228 cm, weight 1200 kg including stainless steel heat exchanger with 3 m plates, air conditioning, electrical control cabinets, stainless steel tank and coupling flanges.
3 - Protective box:
Dimensions L 445 x W 110 x H 158 cm, weight 750 kg including galvanised aluminium staircase and railing.
Additional details
- Equipment sold as is and without warranty
- Lot to be collected on site after payment of the invoice
- Provide exceptional transport by conveyance
