DMG GILDEMEISTER CTX 320 LINEAR CNC Lathe with Motorized Tools with C and Y Axes
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- DMG GILDEMEISTER
- Type
- CTX 320 LINEAR
- Year of build
- 2008
- Machine weight
- 4500kg
- Dimension l
- 8000mm
- Dimension w
- 3000mm
- Dimension h
- 2700mm
- Terms of delivery
- Loaded on truck
Description
Manufacturer: DMG GILDEMEISTER
Year: 2008
Type: CNC lathe with motorized tools with C and Y axes
Numerical control: Heidenhain iT Plus
Max. turning diameter: 400 mm
Max. turning length: 600 mm
Distance between tips: 615 mm
Main spindle: 20–6,000 rpm – 16 kW – max. torque 155 Nm
Bar capacity: Ø 52 mm – spindle bore 61 mm
C-axis: 0.001° resolution

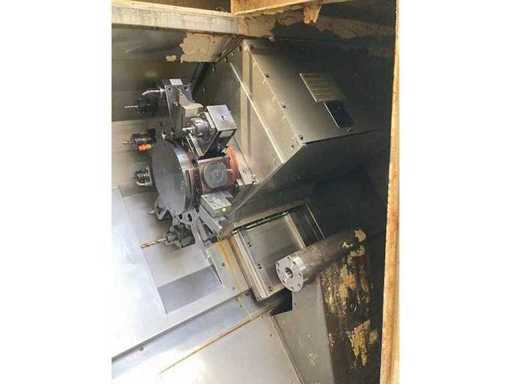

Turret: 12 positions – 12 motorized tools (5,000 rpm, 3.7 kW)
Strokes: X 160 mm / Z 450 mm / Y ±32 mm
Fast feeds: X 60 m/min – Z 45 m/min

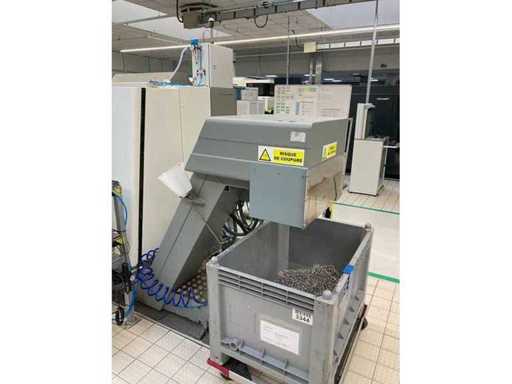

Attachments: Chip conveyor, 12 bar HP coolant, workpiece catcher, fixed tool holders (5), motorized tool holders (3), hydraulic system
Dimensions (mm): 8000 × 3000 × 2700
Weight (kg): approx. 4500

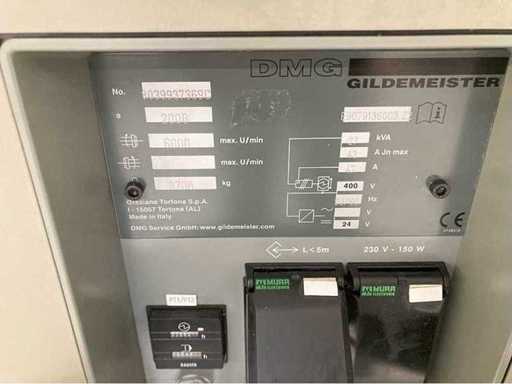

Remarks: Machine in good condition, powered on. Serial number included in the description.
Year: 2008
Type: CNC lathe with motorized tools with C and Y axes
Numerical control: Heidenhain iT Plus
Max. turning diameter: 400 mm
Max. turning length: 600 mm
Distance between tips: 615 mm
Main spindle: 20–6,000 rpm – 16 kW – max. torque 155 Nm
Bar capacity: Ø 52 mm – spindle bore 61 mm
C-axis: 0.001° resolution
Turret: 12 positions – 12 motorized tools (5,000 rpm, 3.7 kW)
Strokes: X 160 mm / Z 450 mm / Y ±32 mm
Fast feeds: X 60 m/min – Z 45 m/min
Attachments: Chip conveyor, 12 bar HP coolant, workpiece catcher, fixed tool holders (5), motorized tool holders (3), hydraulic system
Dimensions (mm): 8000 × 3000 × 2700
Weight (kg): approx. 4500
Remarks: Machine in good condition, powered on. Serial number included in the description.
Additional details
The dimensions and weights indicated for each batch are provided as a guide and correspond to the current configuration (assembled machine).
Disassembly, handling or packaging operations can change this data and impact transport conditions.
Before any transport is organised, buyers are invited to check the real characteristics of their lots directly with the seller or the company in charge of dismantling.
