Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- CELASCHI
- Type
- TK20 CN
- Weight
- 10000kg
- Length
- 13500cm
- Width
- 2400cm
- Height
- 2000cm
- Terms of delivery
- Loaded on truck
Description

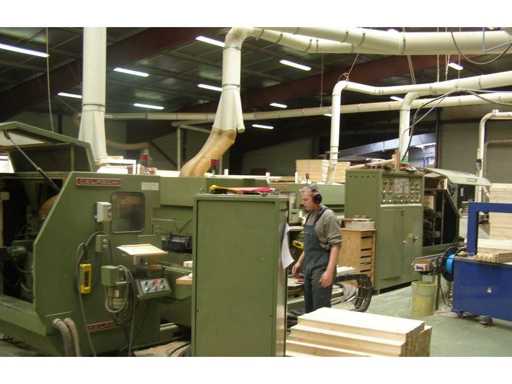

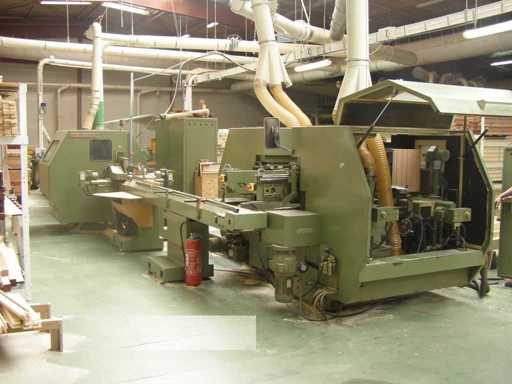

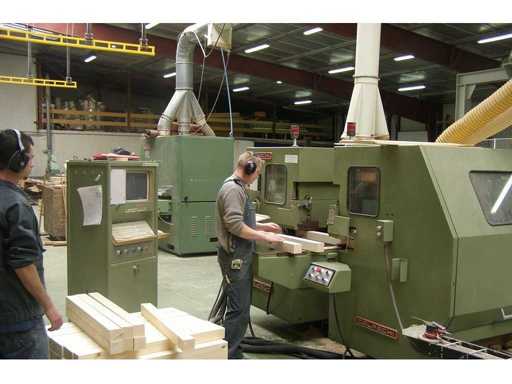

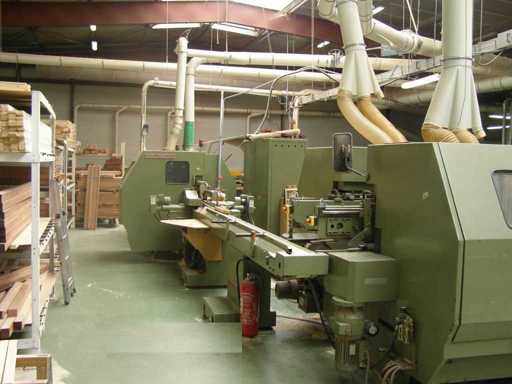

Machine type: Complete line for window manufacturing
Included Items:
TK 20 tenoner:
Double-head tenoner, maximum capacity of 3000 mm, adjustable feed speed (3-18 m/min), chain conveyor with rubber-coated links, automatic lubrication and integrated safety devices. Equipped with:
- Saw motor: 5.5 HP at 3,000 rpm
- Multi-spindle motor: 10 HP at 3,750 rpm
- Pneumatic expulsion system
PA 24-24 roll forming machine:
Automatic roll forming machine with reinforced central frame, capable of processing workpieces from 40x12 mm to 200x120 mm. Hydraulic feed motor (5.5 HP), adjustable speed (3-18 m/min), scoring motor (3 HP at 7,200 rpm). Additional features:
- Automatic
lubrication
- Rubber-coated
chains
- Manual pneumatic safety device
Additional equipment:
- Conveyor system with motorized
return belt
- CNC control unit with Z16-L
digital system
- Electronic positioning of horizontal and vertical
axes
- Safety enclosures with manual opening
Machine Weights and Transport Information:
- TK 20: 4,870 kg (dismantled in 4 parts)
- Conveyor: 740 kg (dismantled in 3 parts)
- PA 24-24: 5,830 kg (dismantled in 2 parts + 1 box)
- Transport dimensions: Full truck load
Additional details
The dimensions and weights shown for each batch are provided as a guide and correspond to the current (assembled) condition of the equipment.
Disassembly, handling or packaging can change these values and impact transport conditions.
Prior to any transport booking, buyers are asked to check the actual specifications of the lots directly with the seller or the dismantling company to ensure proper organisation.
Machines sold as is and not checked
