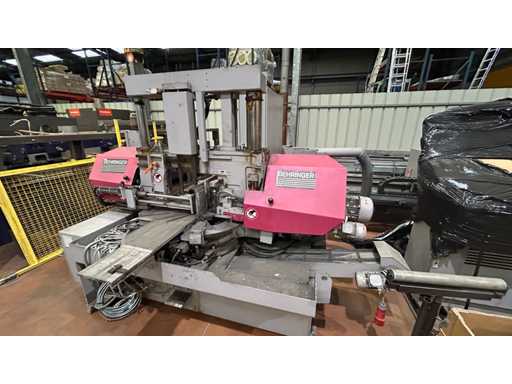

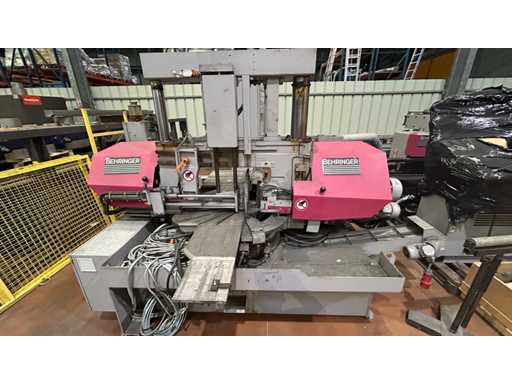

BEHRINGER GmbH - HBP310-523GA - Structural steel cutting line - 2011
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- BEHRINGER GmbH
- Type
- HBP310-523GA
- Year of build
- 2011

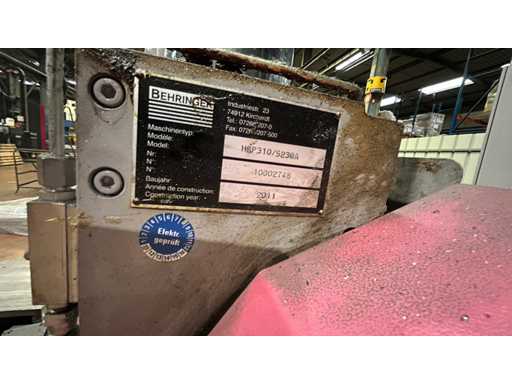

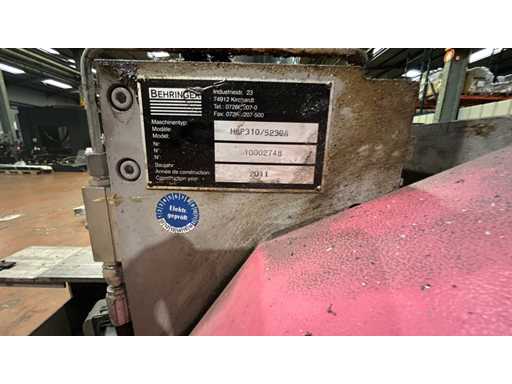

- Serial number
- 10002748
- Max. workpiece height
- 310mm
- Working width
- 520mm
- Saw blade size l
- 5220mm
- Saw blade size w
- 34mm
- Saw blade thickness
- 1.1mm

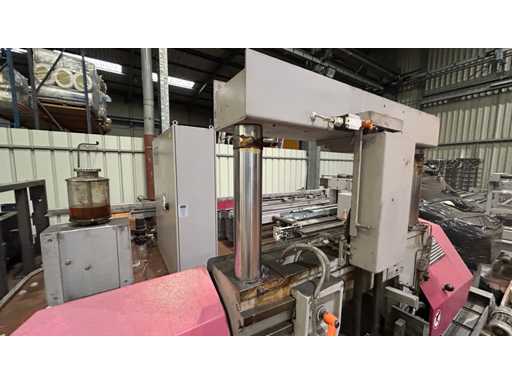

- 2-column
- Yes
- Engine power (kW)
- 4kW
- Electric connection
- 400V
- Machine weight
- 2300kg
- Dimension l
- 3000mm
- Dimension w
- 2200mm
- Dimension h
- 1900mm
- Terms of delivery
- Loaded on truck
Description

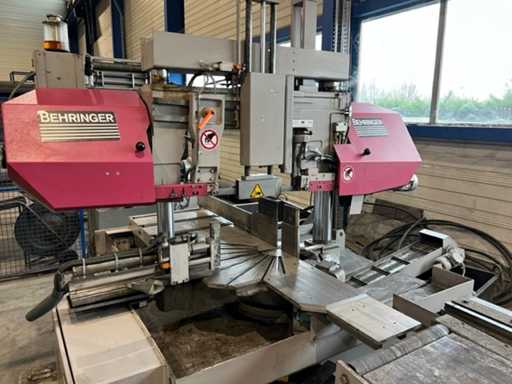

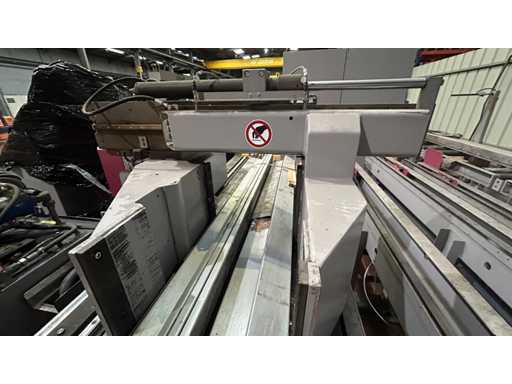

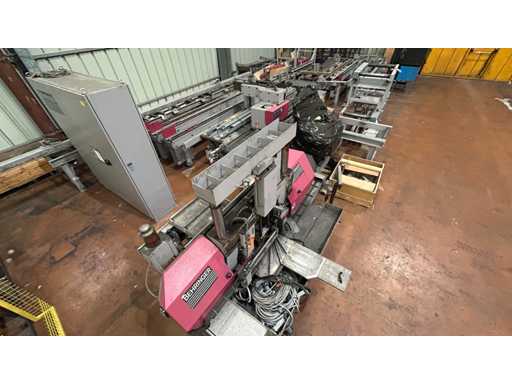

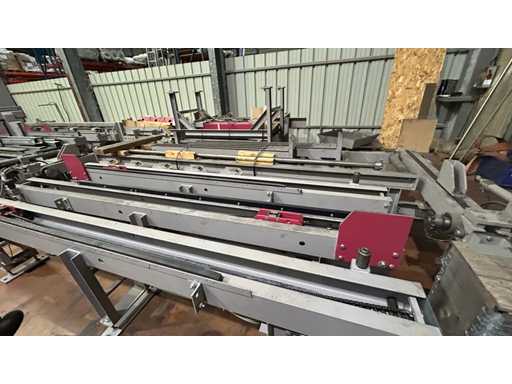

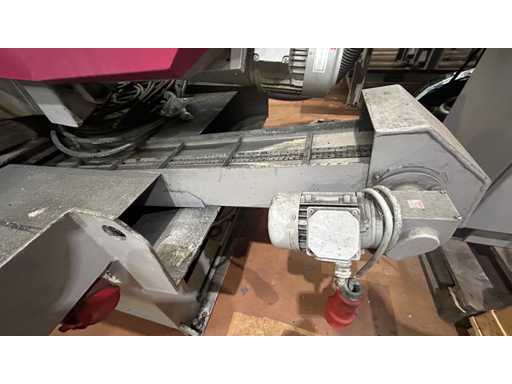

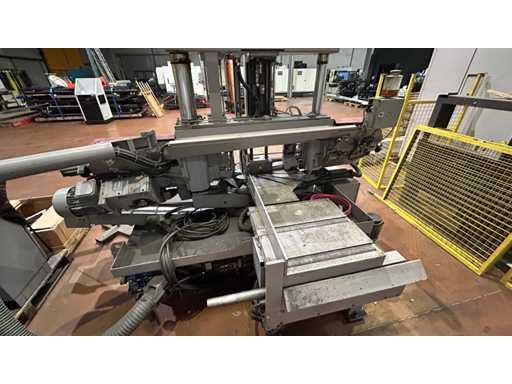

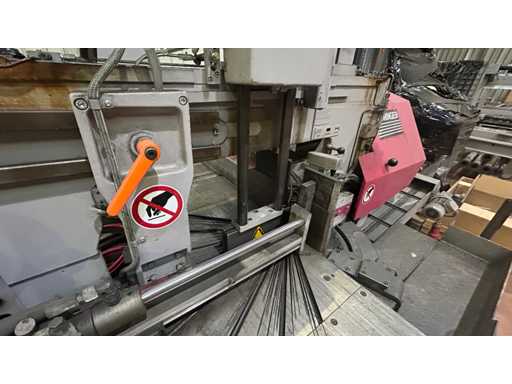

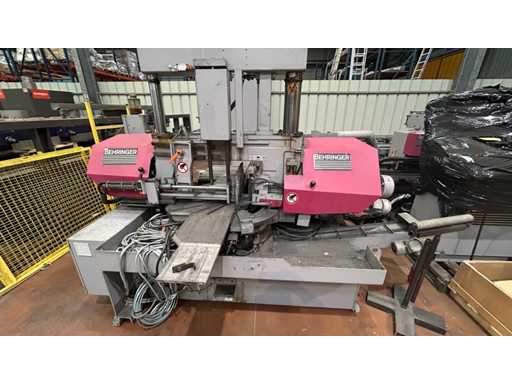

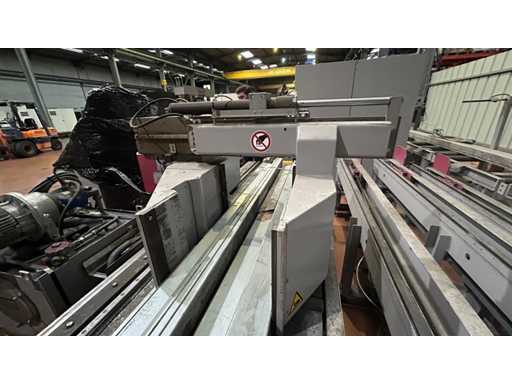

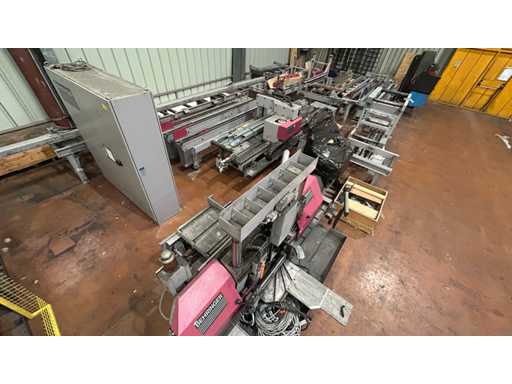

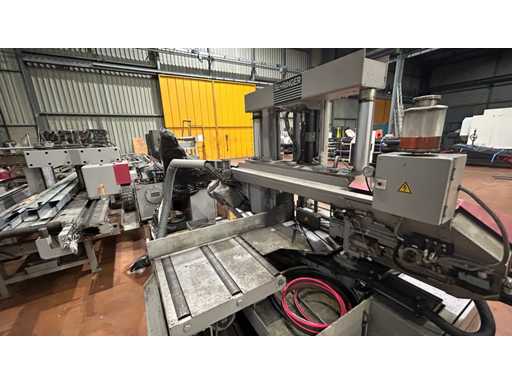

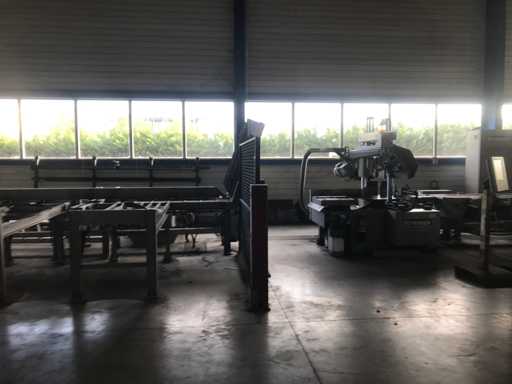

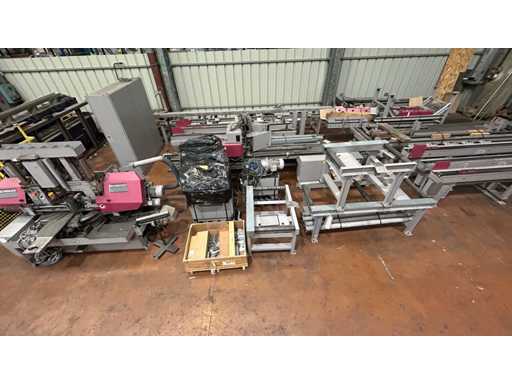

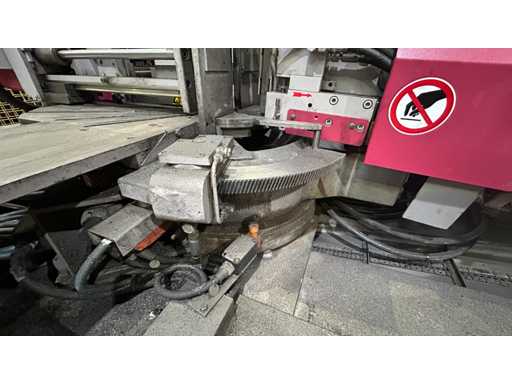

Cutting line for steel frames, equipped with a sliding bench serving as a feeding trolley, a motorised trolley with a stroke of 3 metres, an automatic cutting system with bevel cuts in both directions, as well as a cutting evacuation table. It is a robust line of German manufacture, ideal for cutting metal profiles, tubes and solids, with variable speed control and automatic feed system.
Key features:
• 90° capacity: Ø310 mm / 310×310 mm / 520×310 mm
• Blade dimensions: 5220 × 34 × 1.1 mm

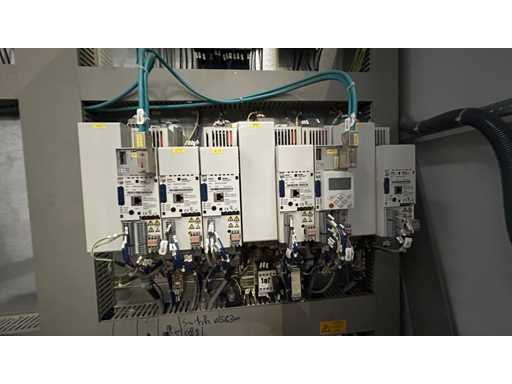

• Blade speed: 20–120 m/min (LENZE inverter)

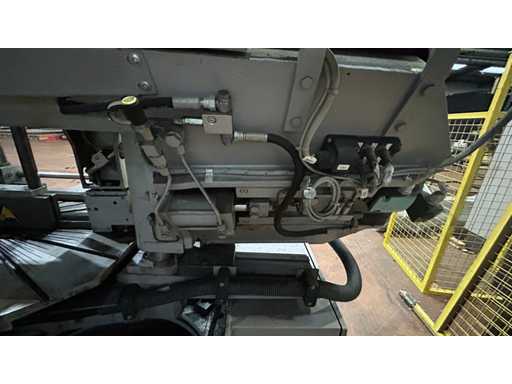

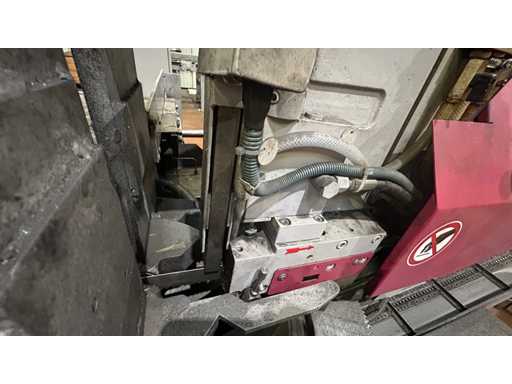

• Hydraulic
lowering and clamping

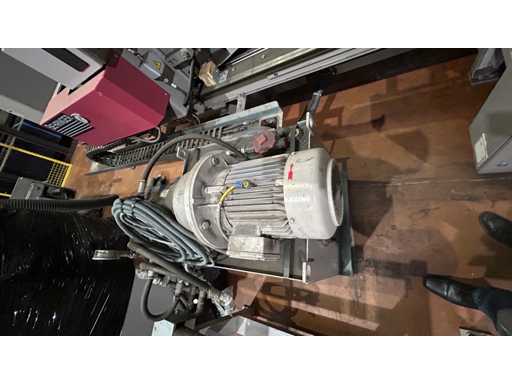

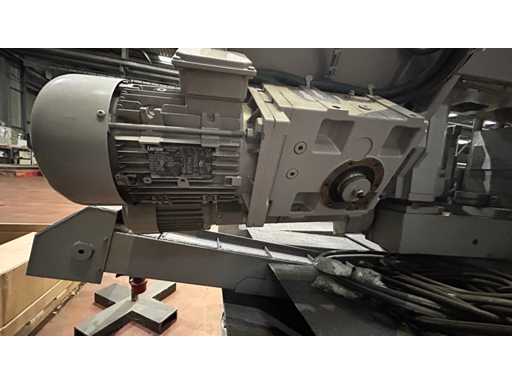

• Main motor: 4.0 kW

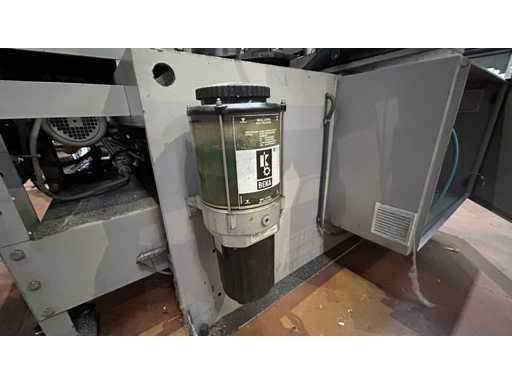

• Centralized
BEKA lubrication system
• Programmable cutting length up to 9999 mm
• Power supply: 400 V – 50 Hz
Equipment:

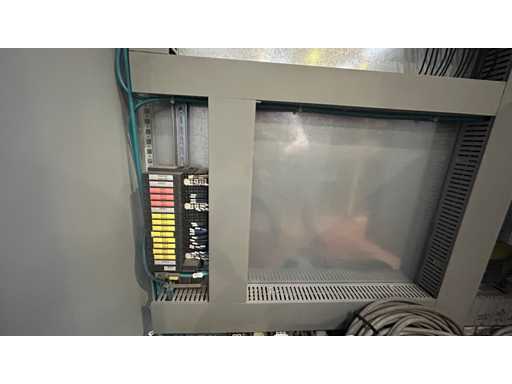

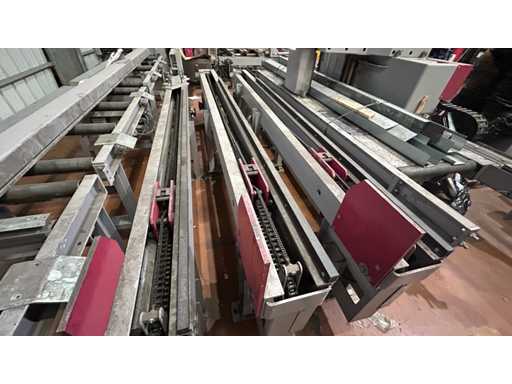

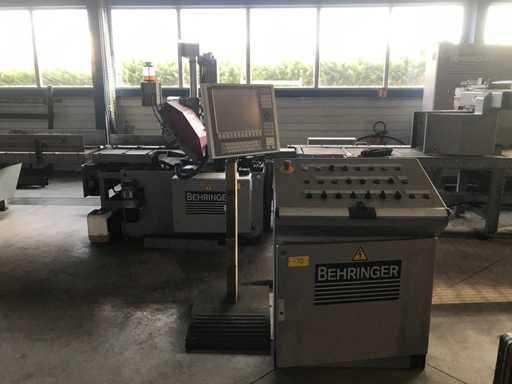

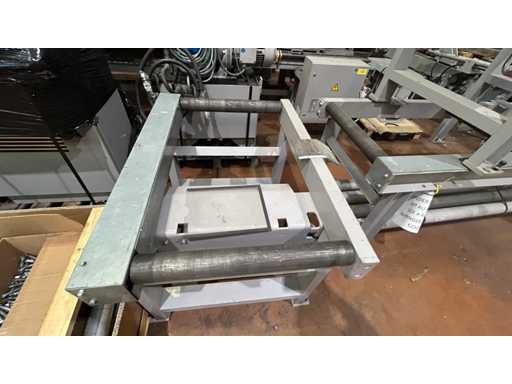

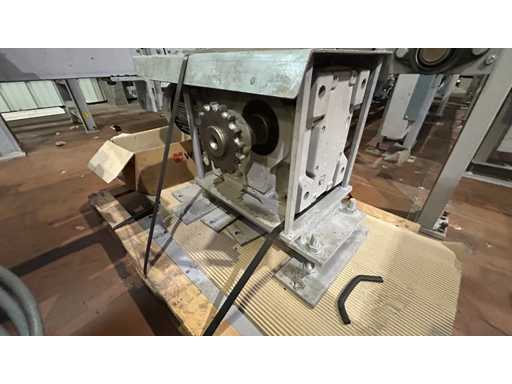

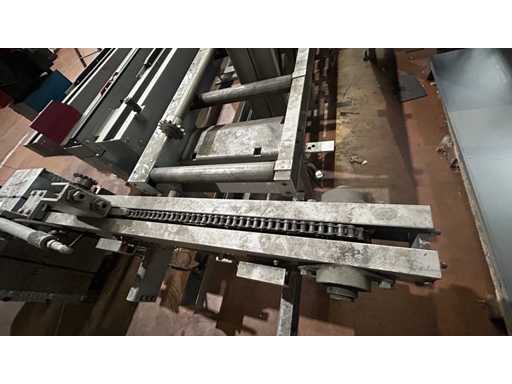

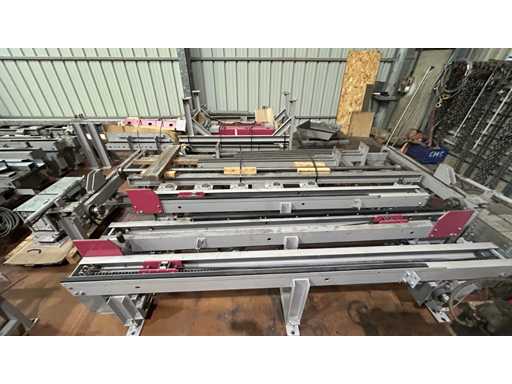

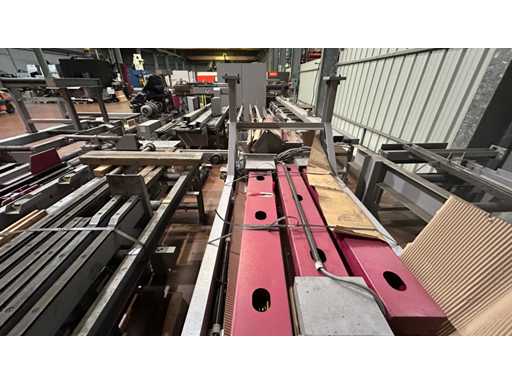

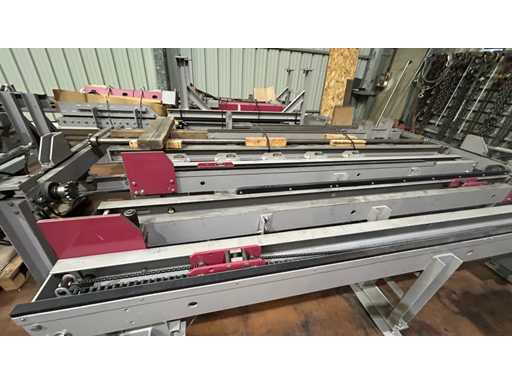

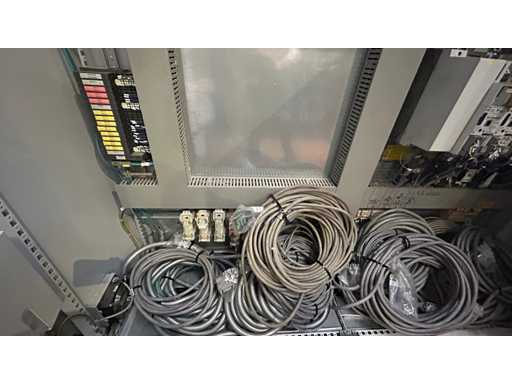

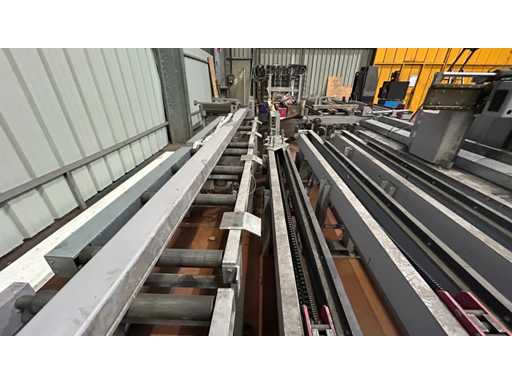

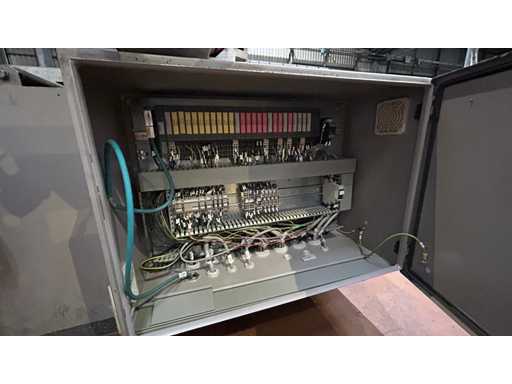

Motorized infeed and outfeed conveyors – Separate control panel – Hydraulic vise – Automatic lubrication.
Dimensions (mm): 3000 × 2200 × 1900
Weight (kg) : 2300
Notes: Year 2011 – Used machine in good general condition.
