ACE Designers Ltd. (India) - VANTAGE 800MY - NUMERICALLY CONTROLLED LATHE - 2016
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- ACE Designers Ltd. (India)
- Type
- VANTAGE 800MY
- Year of build
- 2016
- Turning Ø
- 400mm
- Turning length
- 800mm
- Spindle boring Ø
- 63mm
- Speed from n=
- 0rpm
- Speed till n=
- 4000rpm
- Number of tool changer stations
- 12

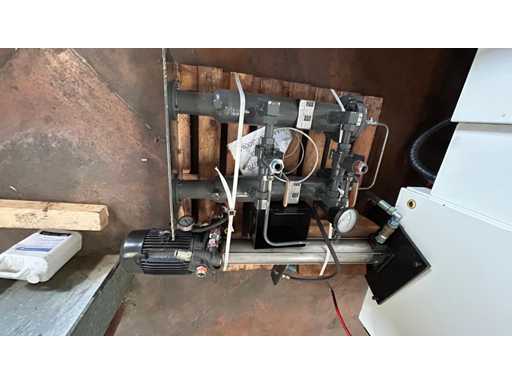

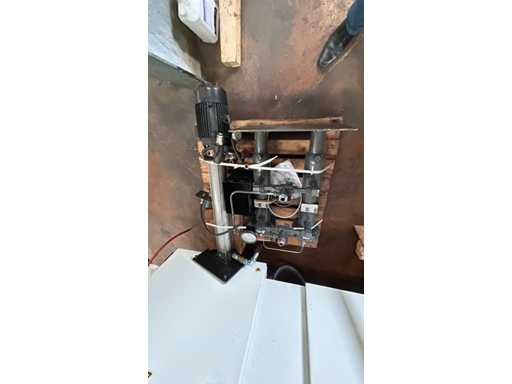

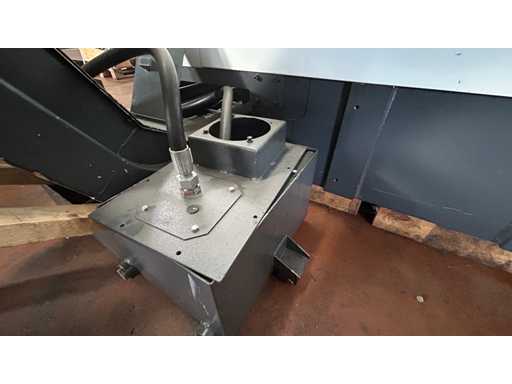

- Coolant pump
- Yes

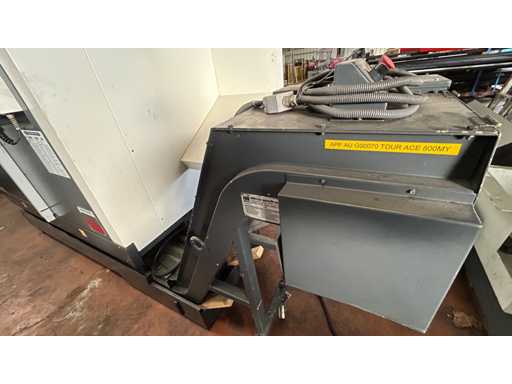

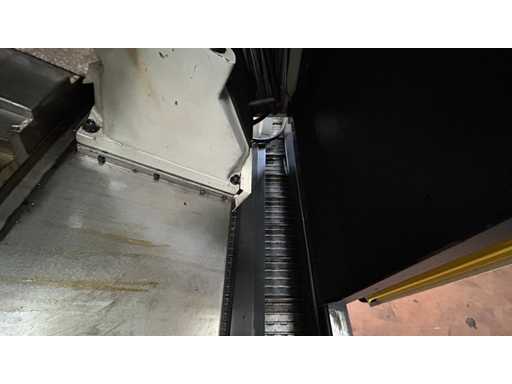

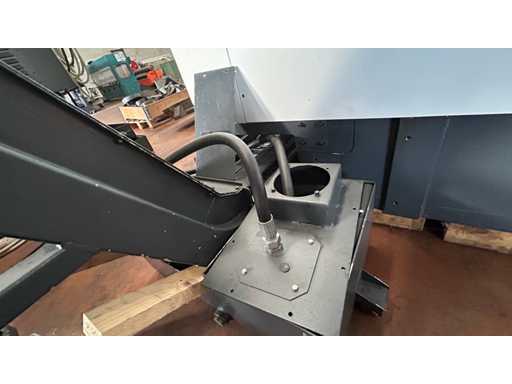

- Chip conveyor
- Yes
- CNC control, brand, type
- FANUC Series Oi-TD
- Engine power (kW)
- 32kW
- Electric connection
- 400V
- Machine weight
- 6000kg
- Dimension l
- 3700mm
- Dimension w
- 1900mm
- Dimension h
- 2500mm
- Terms of delivery
- Loaded on truck
Description

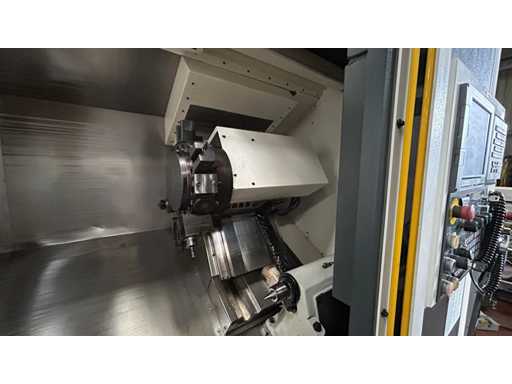

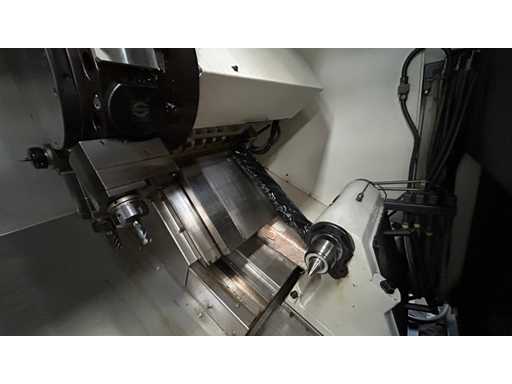

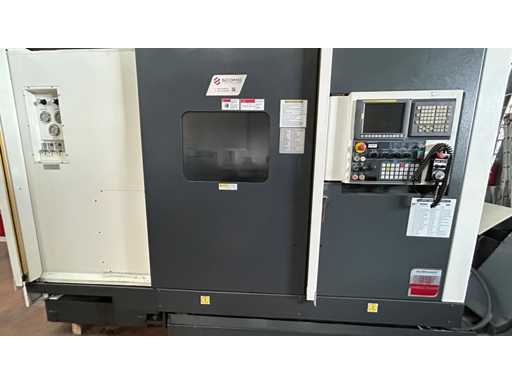

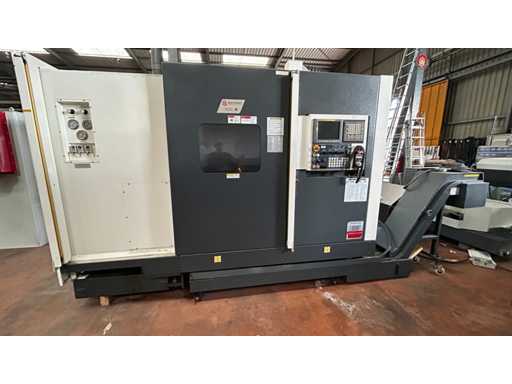

ACE VANTAGE 800MY CNC lathe equipped with FANUC Series Oi-TD CNC with Y- and C-axes. Modern and versatile machine for combined turning and milling operations.
Key features:
• Diameter above the bed: 640 mm
• Machining length: 800 mm
• Strokes: X = 300 mm / Y = +55 / -75 mm / Z = 800 mm
• Spindle speed: 4000 rpm
• Spindle Bore: 63 mm, A2-8
Nose
• Bar pass-through: 51 mm

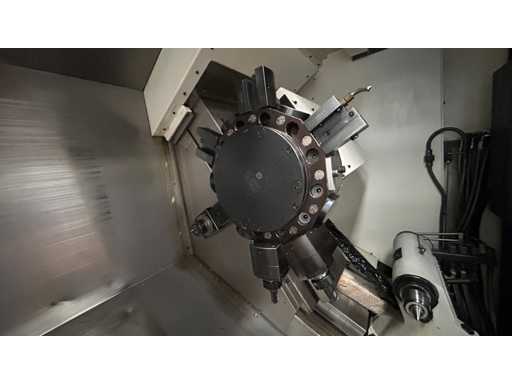

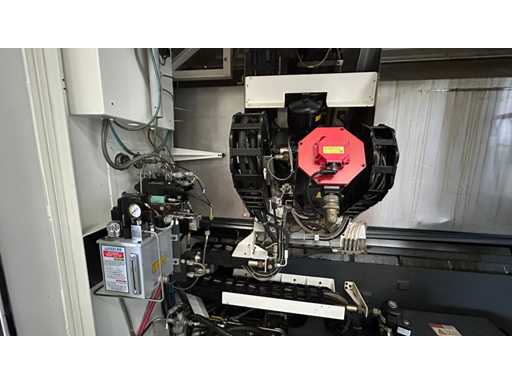

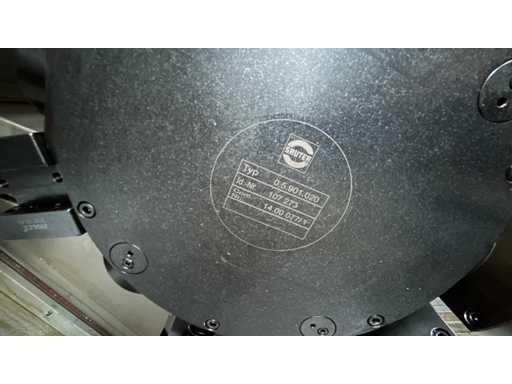

• SAUTER 12-station turret (3 fixed + 3 motorized)
• Fast speed: X = 20 / Y = 10 / Z = 20 m/min
• MT4
tailstock

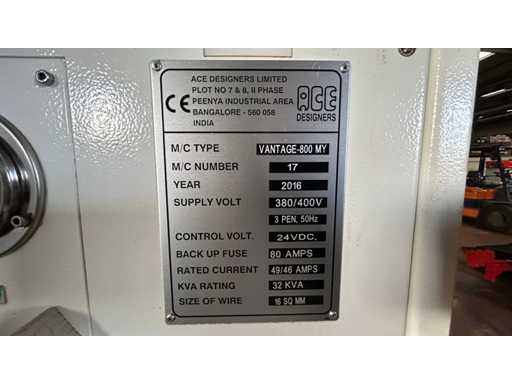

• Power supply: 400 V – 32 kVA
Equipment:

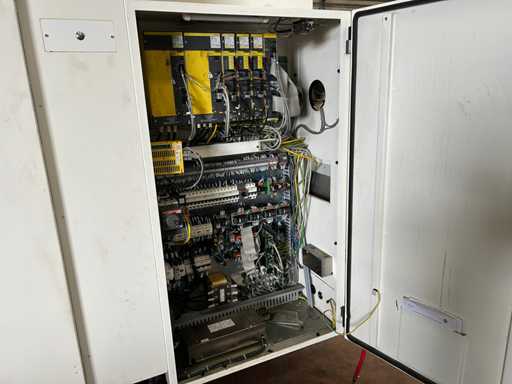

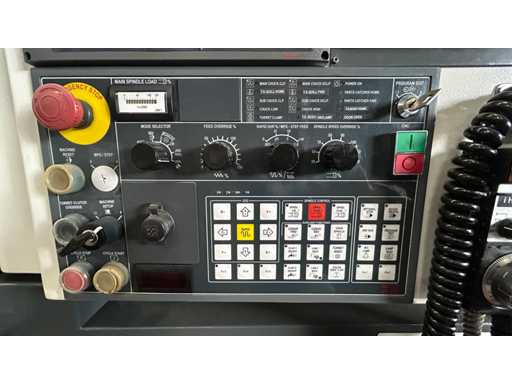

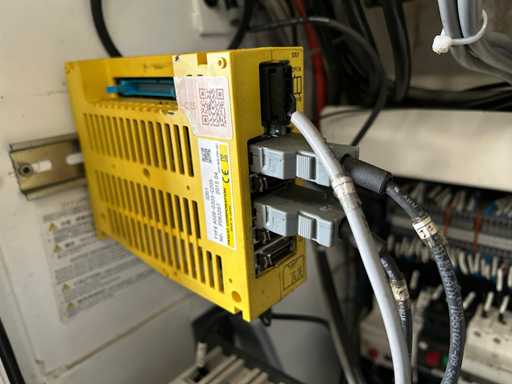

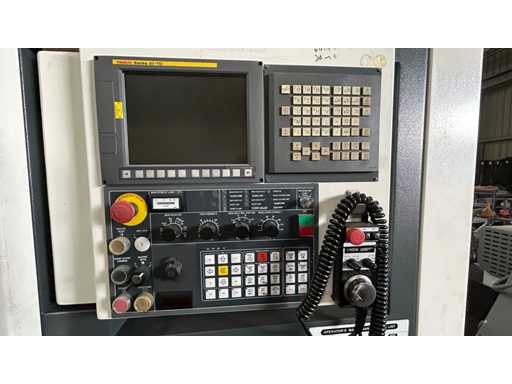

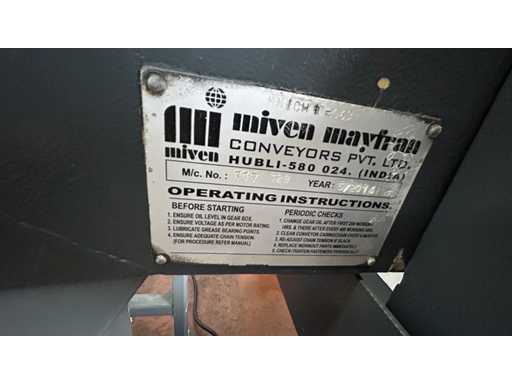

FANUC Oi-TD control – Chip conveyor – Automatic doors – Fixed and motorized tool holders included.
Dimensions (mm): 3690 × 1900 × 2500
Weight (kg) : 6000
Notes: Year 2016 – Machine in excellent general condition, ready for production.
Additional details
At the request of interested parties, online auction of metalworking machinery.
The dimensions and weights shown for each batch are provided as a guide and correspond to the current (assembled) condition of the equipment.
Disassembly, handling or packaging can change these values and impact transport conditions.
Prior to any transport booking, buyers are asked to check the actual specifications of the lots directly with the seller or the dismantling company to ensure proper organisation.
Pick-ups will be made after full payment of the invoice and only by appointment.
