2017 INTEGRA Power WS-1000 M Sieve Sand Sorting Plant
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- INTEGRA Windsichter GmbH
- Type
- Power WS-1000 M
- Year of build
- 2017
- Serial number
- 01060
- Total dimension L
- 6665mm
- Total dimension W
- 2500mm
- Total dimension Height
- 3665mm
Description

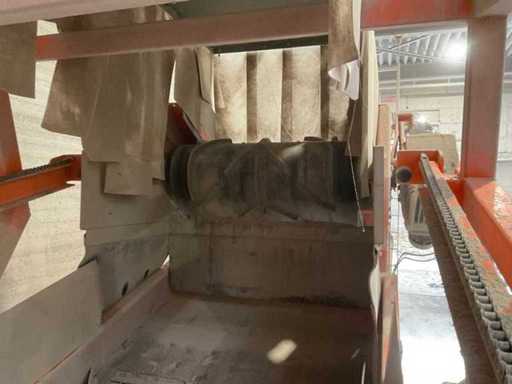

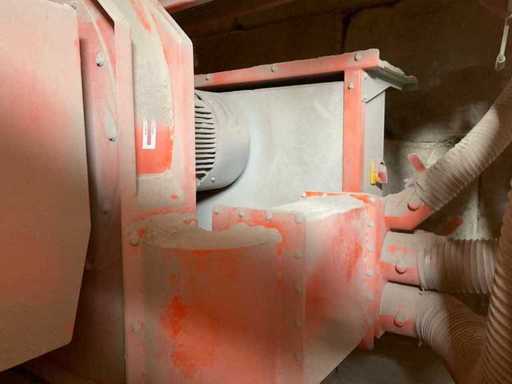

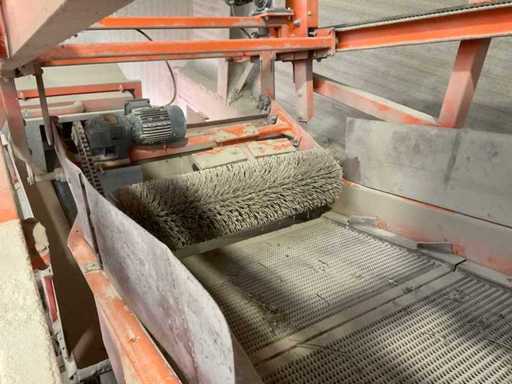

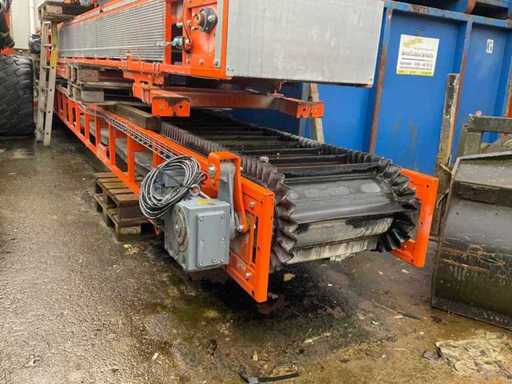

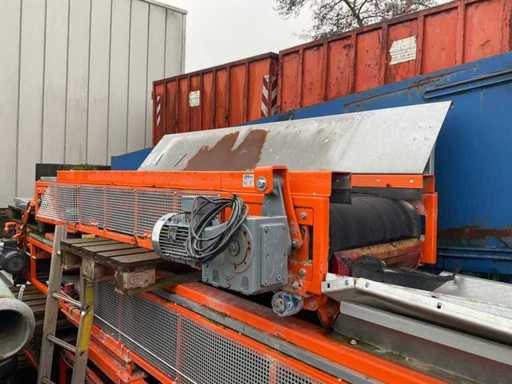

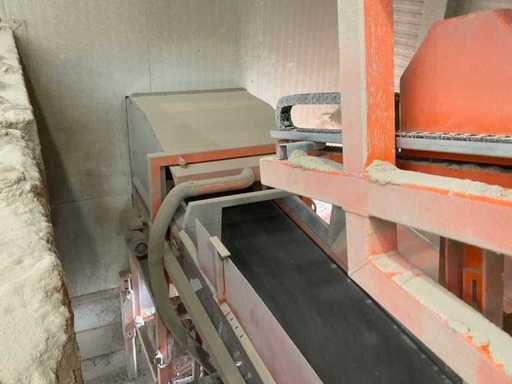

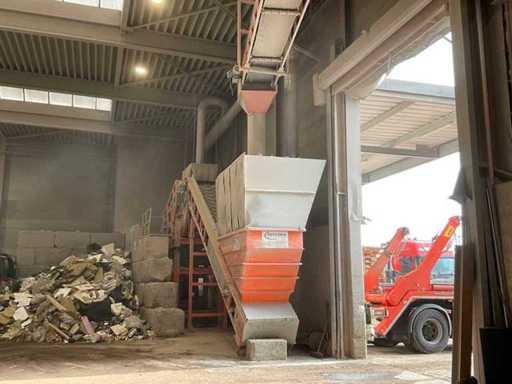

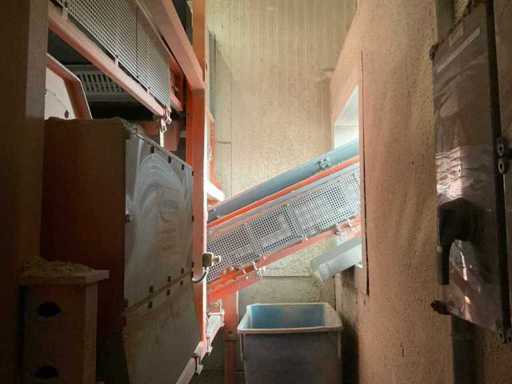

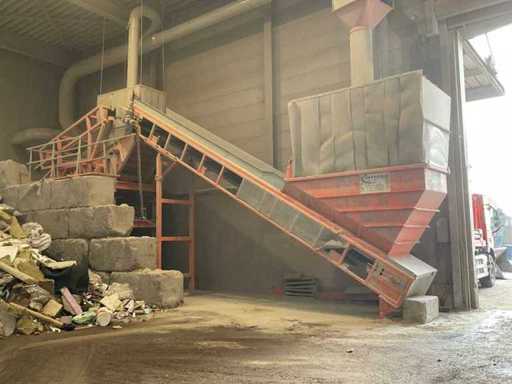

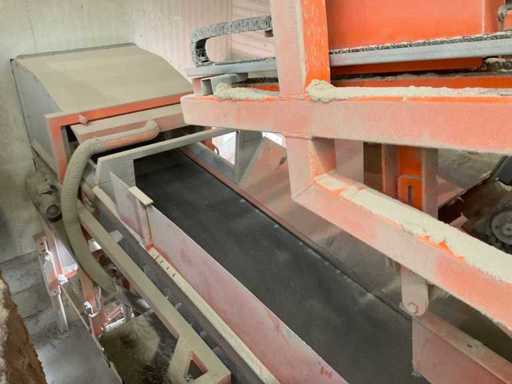

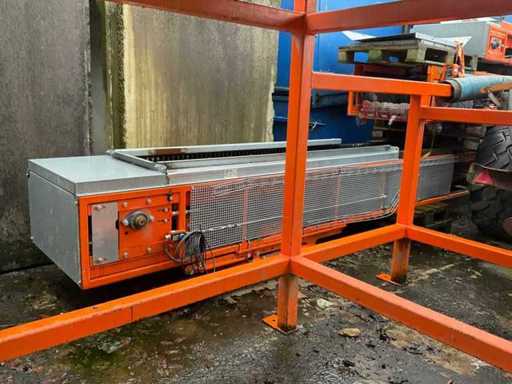

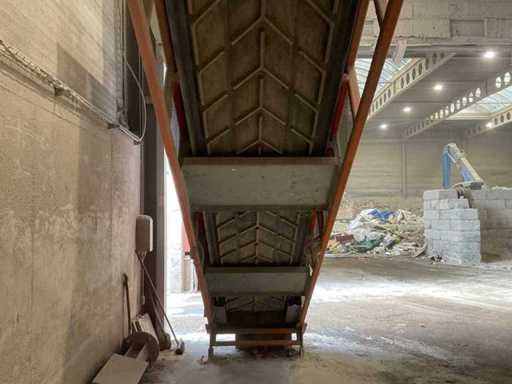

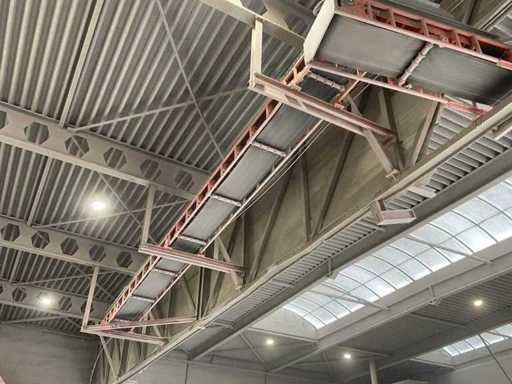

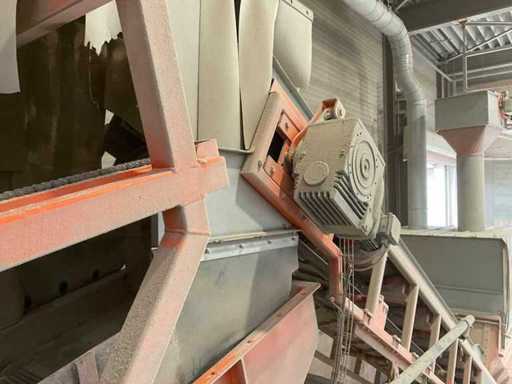

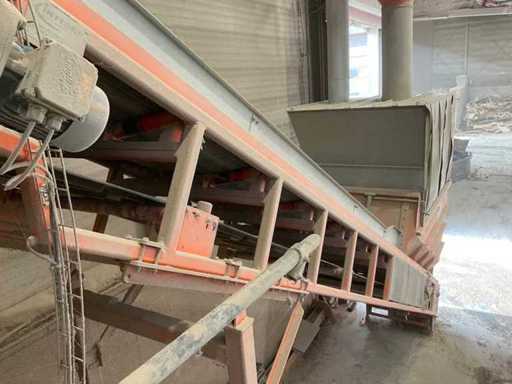

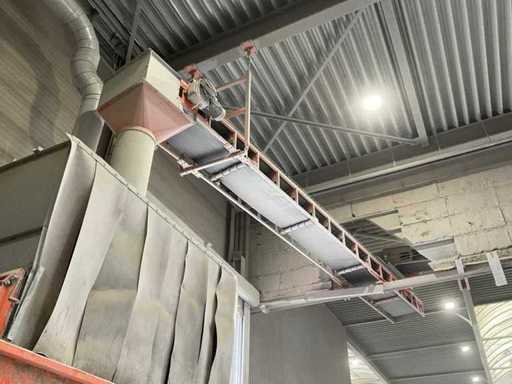

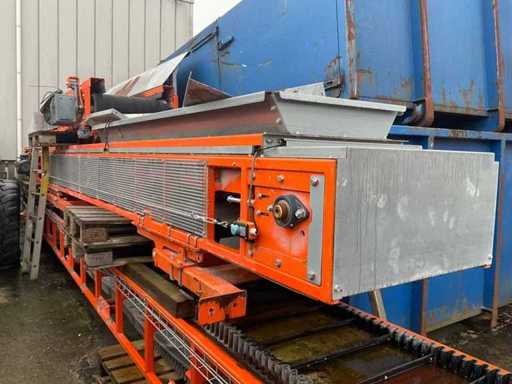

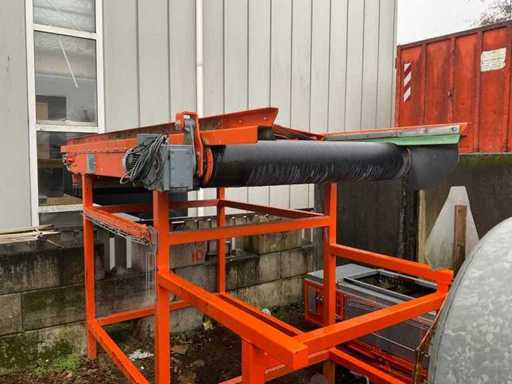

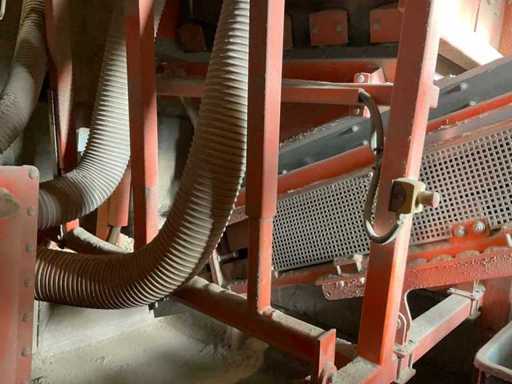

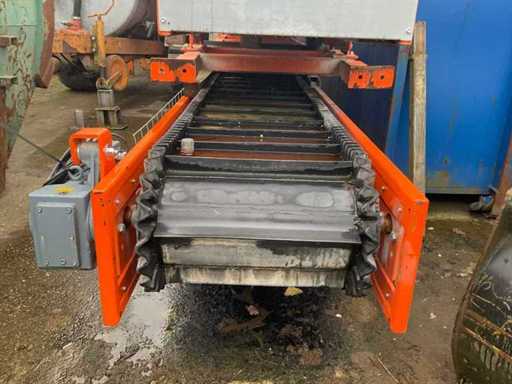

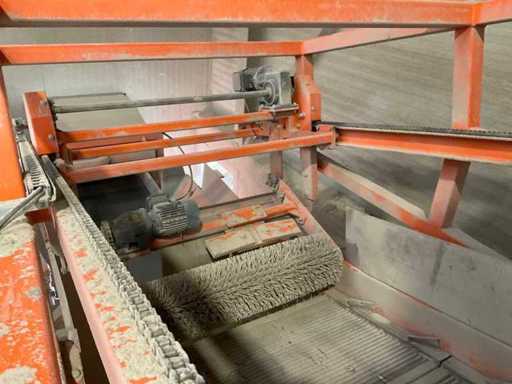

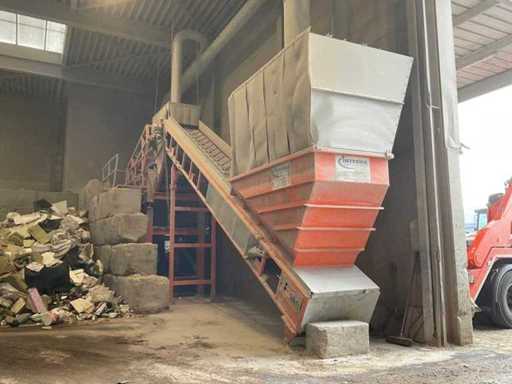

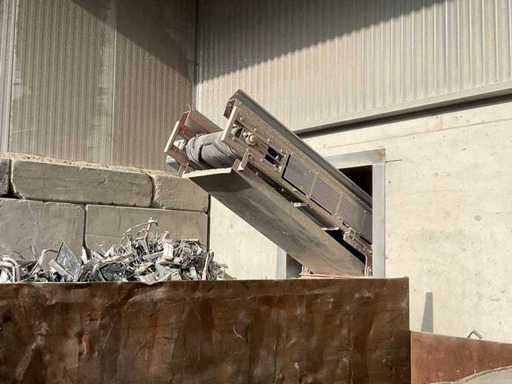

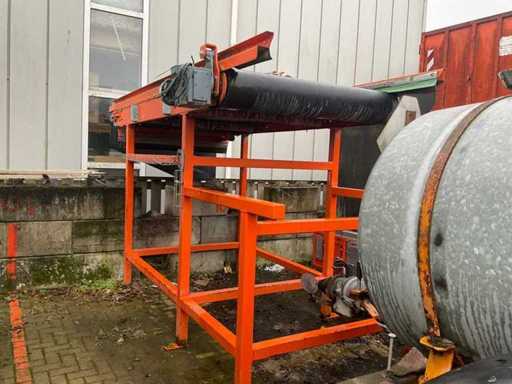

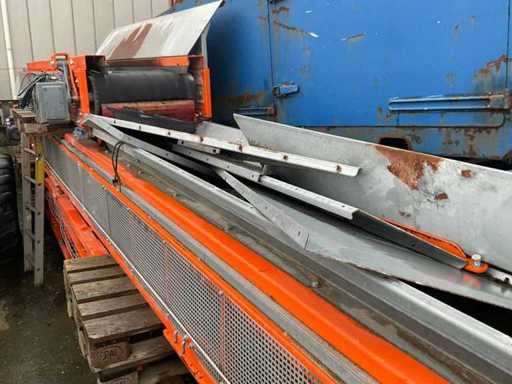

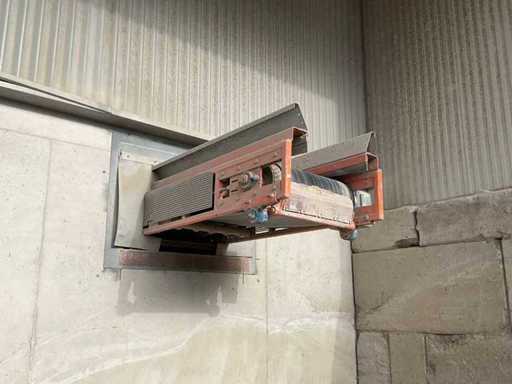

sieve decks 4 to 6 mm; power approx. 80 - 100 tons/hour; equipped with 30 kW fan; working width 1000 mm; incl. (1x) "INTEGRA" screening machine; type VSC 120/105x300; working width 1200 mm; equipped with (2x) vibration motors; mounted on metal base; Total dimensions. approx. 4286x2005x4659 mm; (1x) "INTEGRA" broadband conveyor; type FBR 160-25-0330; working width 1660 mm; Total dimensions. approx. 4400x2275x910 mm; (1x) "INTEGRA" conveyor belt; type FBR 065-32-0260; working width 840 mm; Total dimensions. approx. 2960x1233x760 mm; (1x) "INTEGRA" elevator conveyor; type FBR 065-47-0990; working width 840 mm; Total dimensions. approx. 10,400x1120x7992 mm; (1x) "INTEGRA" conveyor belt; type FBR 065-40-1280; working width 840 mm; Total dimensions. approx. 13,200x1125x635 mm; (1x) "INTEGRA" conveyor belt; type FBR 065-40-0860; working width 840 mm; Total dimensions. approx. 9560x1395x4525 mm; (1x) "INTEGRA" elevator conveyor; type DFB 100-60-0870; working width 1160 mm; cap. approx. 10 m3/hour; Total dimensions. approx. 9080x1660x5700 mm; (1x) "INTEGRA" transversely mounted conveyor belt; type FBR 065-32-0410; working width 840 mm; cap. approx. 10 m3/hour; Total dimensions. approx. 4600x1120x655 mm; (1x) "INTEGRA" transversely mounted conveyor belt; type FBR 065-32-0410; working width 840 mm; cap. approx. 10 m3/hour; Total dimensions. approx. 4600x1120x655 mm
Remarks
This lot to be dismantled by the buyer! CAUTION! Conveyor belt setup partially disassembled!
Additional details
Er is geen herroepingsrecht. Zie de Specifieke Veilingvoorwaarden voor meer informatie. .
De minimumleeftijd voor het bezoeken van de ophaaldag is 18 jaar. Bezoekers moeten zich kunnen identificeren. .
Tijdens de ophaaldag is er geen, door Troostwijk georganiseerde, vorkheftruck beschikbaar. .
De minimumleeftijd voor het bezoeken van de ophaaldag is 18 jaar. Bezoekers moeten zich kunnen identificeren. .
Tijdens de ophaaldag is er geen, door Troostwijk georganiseerde, vorkheftruck beschikbaar. .
Videos

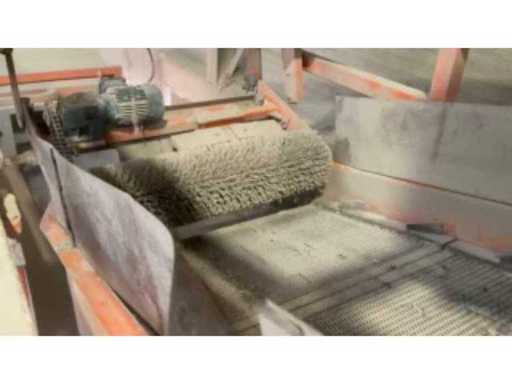

See the details and take a closer look at the item in this video.
