2000 Künkel Wagner APM 1 Forming Machines
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Künkel Wagner
- Type
- APM 1
- Year of build
- 2000
- Serial number
- 26.015
- Electric connection
- 380V
- Own weight
- 1500kg
- Dimension l
- 1800mm
- Dimension w
- 1500mm
- Dimension h
- 1750mm
- Terms of delivery
- Ex foundation-unpackaged
Description

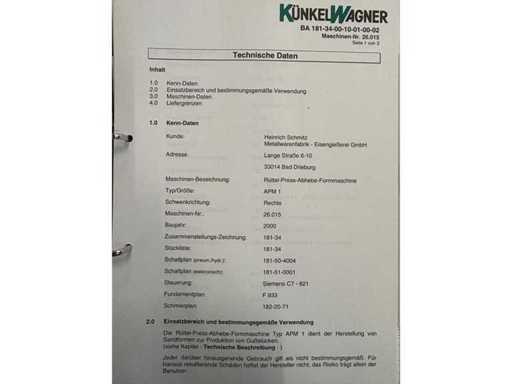

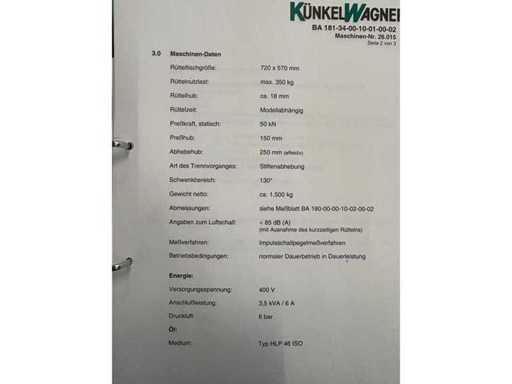

Technical data

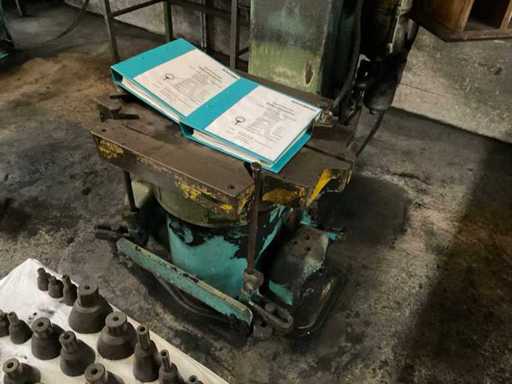

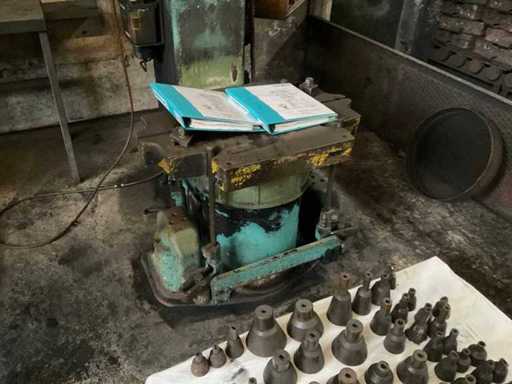

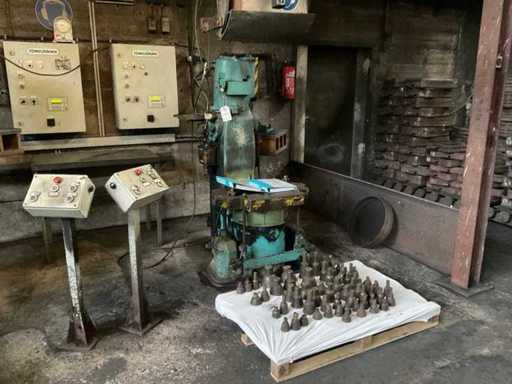

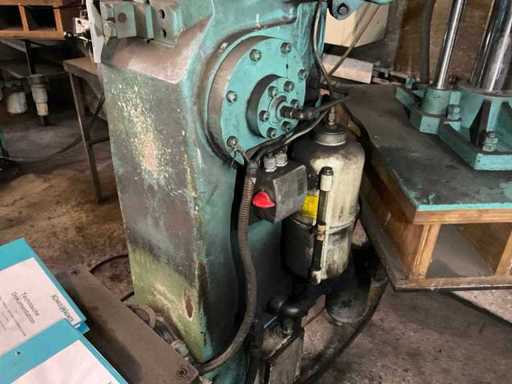

Machine Type: Vibrating Press Lifting Forming MachineManufacturer: KÜNKEL-WAGNER Prozesstechnologie GmbH
Model / Type: APM 1
Machine No.: 26.015
Year of Make: 2000

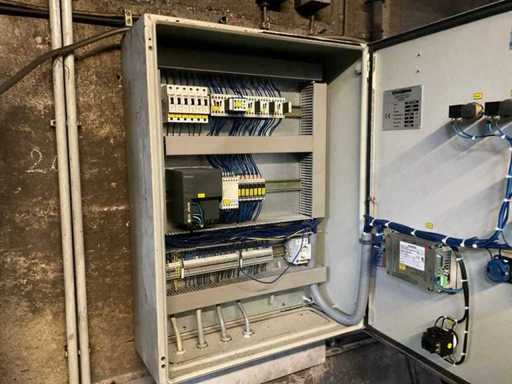

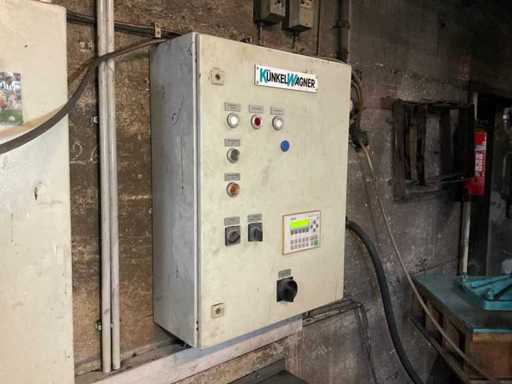

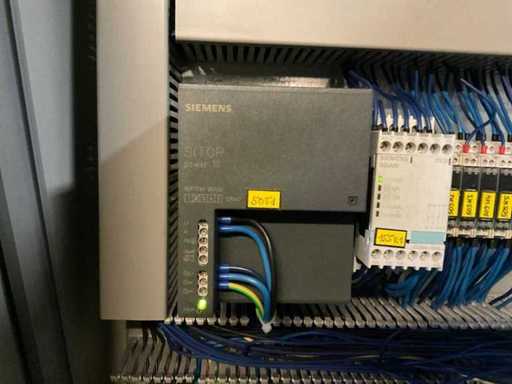

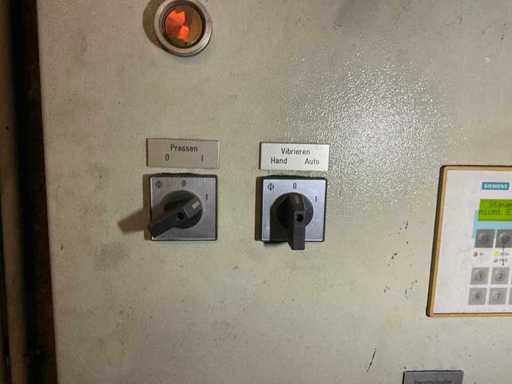

Control: Siemens C7 - 621

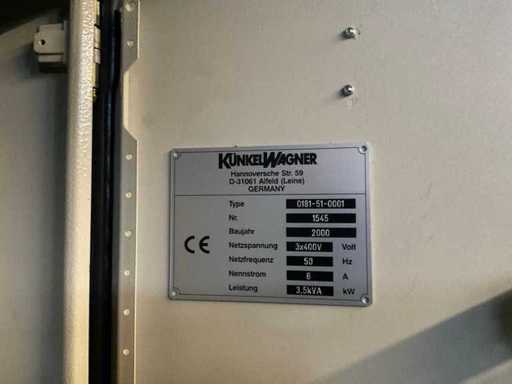

Supply voltage: 400 V
Connected load: 3.5 kVA / 6 A
Compressed air: 6 bar
Oil Type: HLP 46 ISO
Noise level: < 85 dB(A)
Configuration

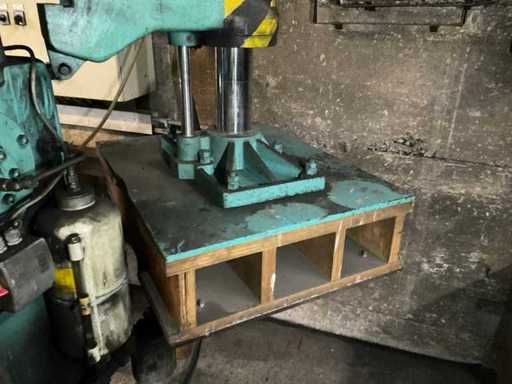

Shaking table size: 720 x 570 mmVibratory payload: max. 350 kg
Vibration stroke: approx. 18 mm

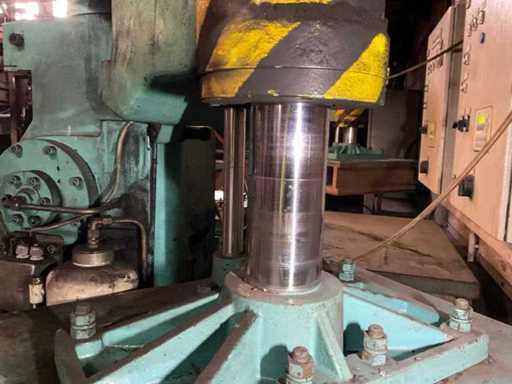

Press force: 50 kN
Press stroke: 150 mm
Lifting stroke: 250 mm
Separation: Pen withdrawal
Swivel range: 130° (right)
Weight: approx. 1,500 kg
There is a loading service up to 3000 kg. For all other lots over 3000 kg, the buyer must provide a forklift himself. Please note: Disassembly of any kind is the responsibility of the buyer!
Remarks
Condition: Used and unchecked.
