Lot specifications
- Quantity
- 1
- Margin
- No
- Own weight
- 116kg
- Total dimension L
- 550mm
- Total dimension W
- 200mm
- Total dimension Height
- 1050mm
- Terms of delivery
- Free on truck
Description

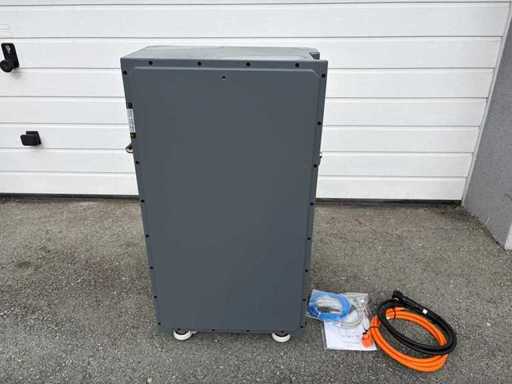

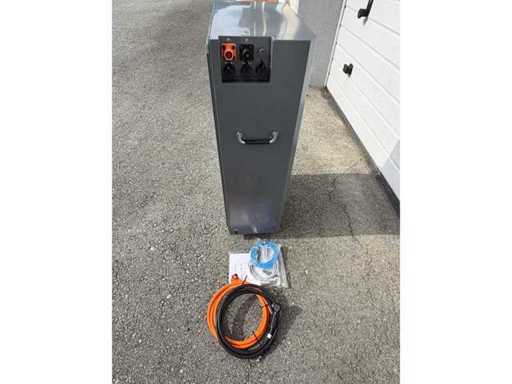

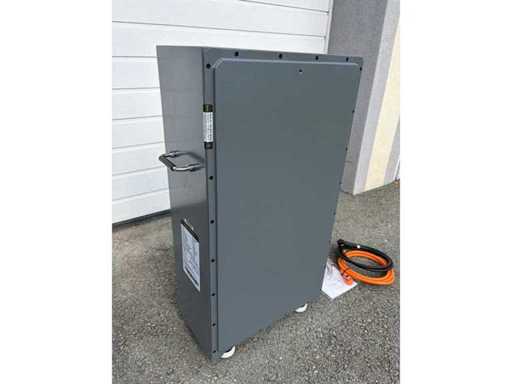

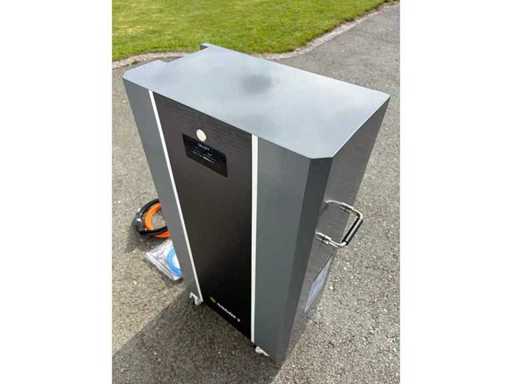

Battery storage 14.33 kWh
Incl. accessories!
Short Description:
ASH-51280 Lithium Energy Storage 14.33 kWh
The ASH-51280 high-performance lithium storage system
Built-in smart BMS, LCD real-time display and wider
inverter compatibility, the system is ideal for modern
Photovoltaic systems, emergency power solutions and self-consumption optimization.
Your benefits:
✓ 14.33 kWh storage capacity
✓ CAN / RS485 communication
✓ 150 A charging/discharging power
✓ High level of safety thanks to integrated BMS
✓ Compatible with many hybrid inverters
✓ Mobile due to wheels / space-saving design
Product Features
• Integrated independent battery management system (BMS)

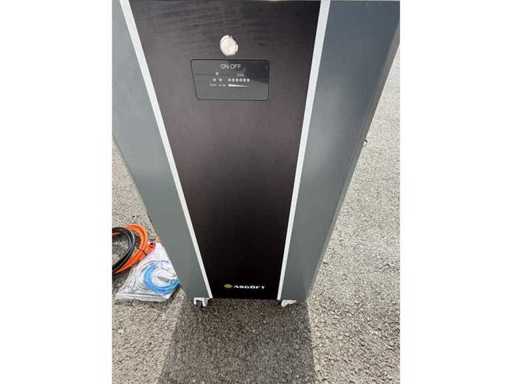

• LCD display to display real-time data
• Long cycle life and high operational reliability
• Compatible with communication protocols of various
Inverter brands
Technical data
Technical Parameter Specification
Model No.: ASH-51280
Nominal voltage 51.2 V
Nominal capacity 280 Ah
Nominal energy 14.33 kWh
Technical Parameter Specification
Battery Configuration 16S1P
Display LCD
Communication CAN / RS485
BMS Integrated Battery Management System
Battery charging operating temperature: 0 °C to +55 °C
Discharge: -20 °C to +60 °C
Storage temperature up to 12 months: -10 °C to +35 °C
up to 3 months: -10 °C to +45 °C
Delivery voltage 50 V – 53 V
Humidity ≤ 60 ± 25 % RH
Max. charging current 150 A
End-of-charge voltage 58.4 V
Max. discharge current 150 A
Discharge-cut-off voltage 44.85 V
Dimensions (L × W × H) approx. 1050 × 550 × 200 mm
Weight approx. 116 kg
All information without guarantee!
Additional details
VIEWING takes place only with advance registration by e-mail: office-domha@gmx.at
PAYMENT is due immediately upon receipt of the surcharges. Payment instruction is stored in www.troostwijkauctions.com / My Purchases / Payment (Checkout). Online payment possible. Bank transfer takes at least 2 full business days!!
NO PACKAGING: Lots are sold without pallet and/or box, unless otherwise stated. In addition, lots are not packed or prepared for transport.
NO LOADING: Any loading must be carried out by the buyer himself and is at his own risk from the time of takeover.
DELIVERY CONDITION: Ex Works (Incoterms)
