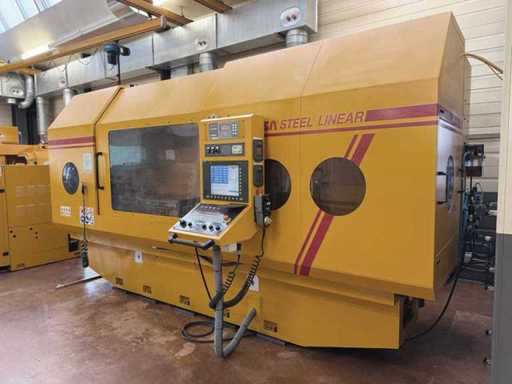

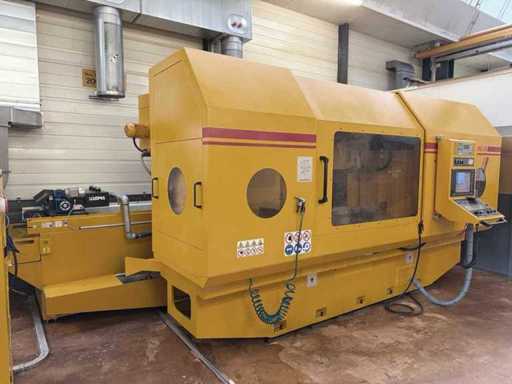

(C-1004) 2012 Rosa Ermando SL 11.7 CNC surface grinding machine
- Current bid
- Status
€
Total bid amount
See total breakdown
Total bid amount
See total breakdown
€
Max bid amount
See total breakdown
Max bid amount
See total breakdown
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Rosa Ermando
- Serial number
- 12052246
Description

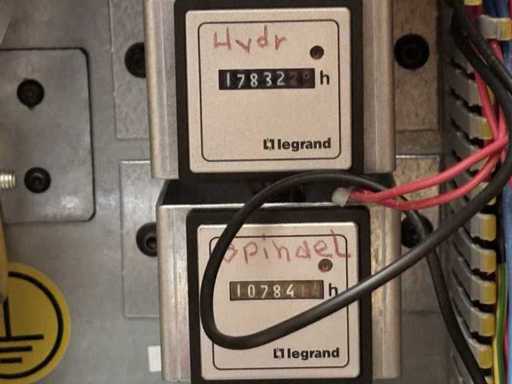

Operating hours: 10.784

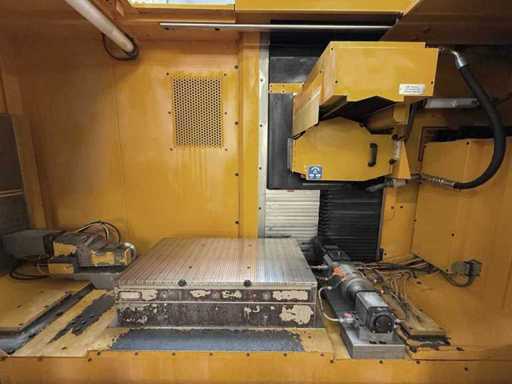

Table Surface Area: 900 mm x 500 mm;
Maximum Table Load: 1,400 kg;
Grinding Wheel Dimensions (Diameter x thickness x Bore): 450x203.2x76 mm;
Spindle Motor Power: 15 kW;
Spindle Speed: 2200 rpm;
X-axis Travel: 1350 mm;
X-axis Feed Rate 0-60 m/min;
Z-axis above the table: 800 mm;
Z-axis Feed Rate: 0 - 8 m/min;
Y-axis Travel: 650 mm;
Y-axis Feed Rate: 0 - 8 m/min;
Machine Weight: Approximately 9,600 kg;
Machine dimensions LxWxH : 4,650x3105x2595 mm;

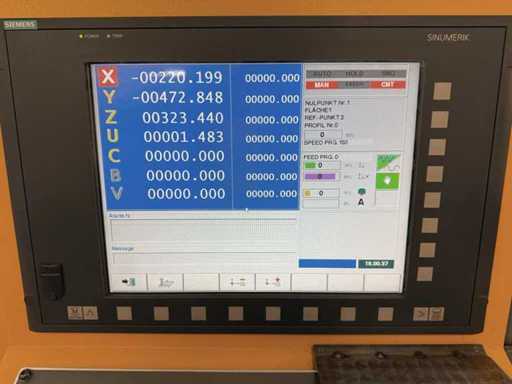

Control system: Siemens Sinumerik 840Di;

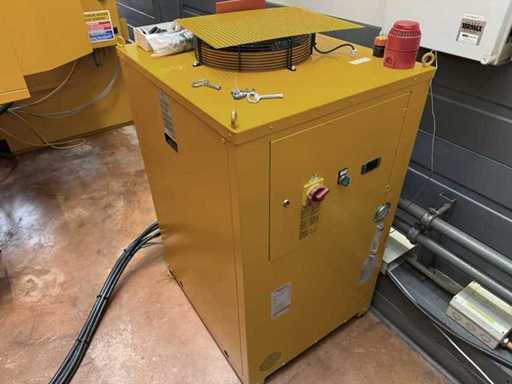

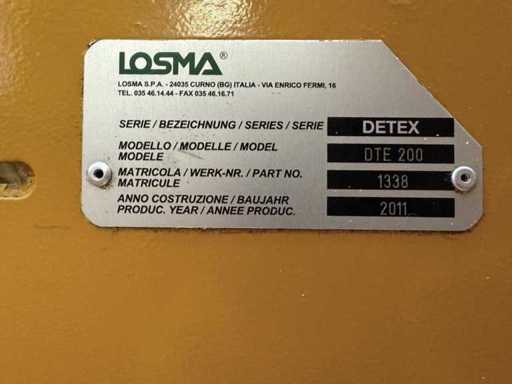

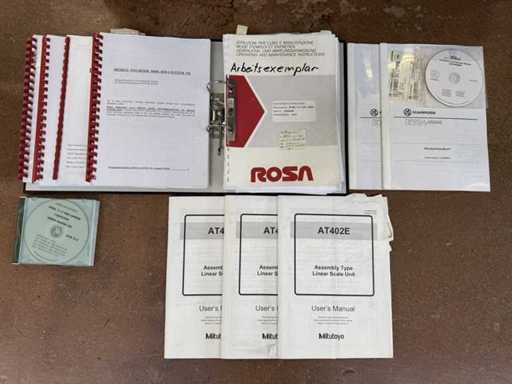

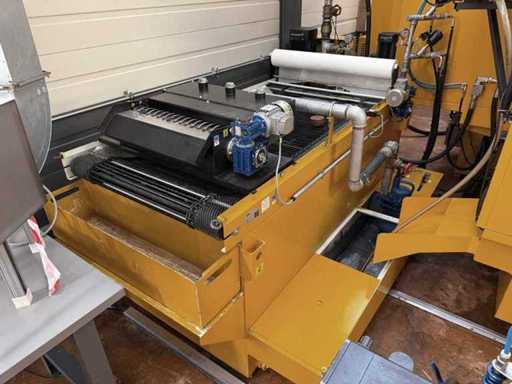

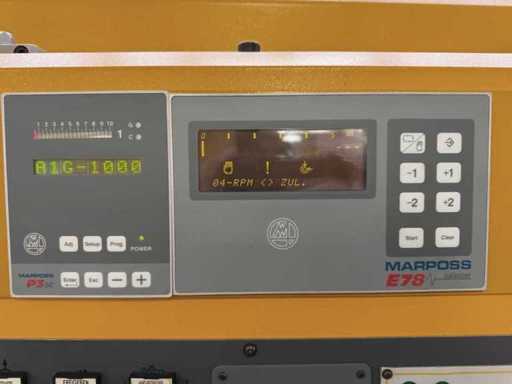

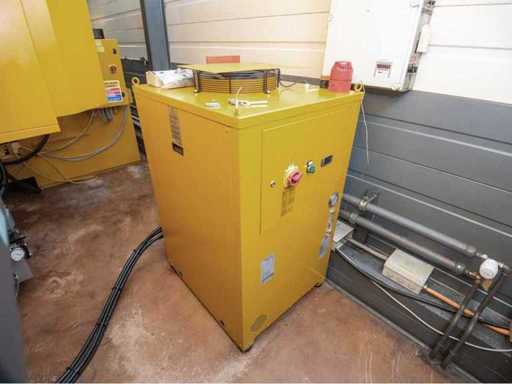

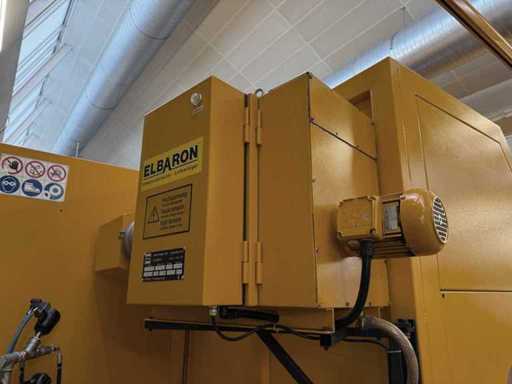

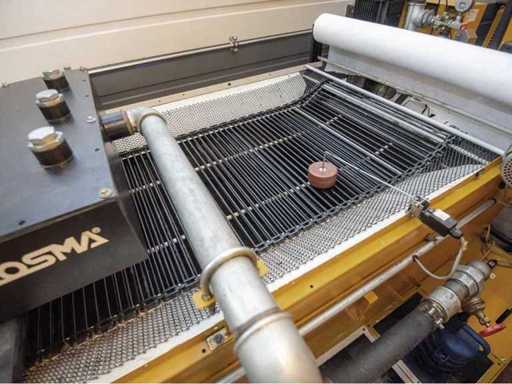

Equipped with: Texa cooler, Losma paper filter, Martin Wetter oil mist filter, Marposs E78 Balancer, documentation;
Additional details
Due to complex logistics on site a professional service partner has been selected. The Swiss company Bollhalder Industrielogistik AG will be responsible for the proper dismantling and loading of lots onto the transport of the buyer. The costs for this mandatory service are shown per lot as 'dismantling and loading costs' and will be added to your bid automatically. Extra services e.g. full service transport to destination and/or re-installation can be requested after the auction.
