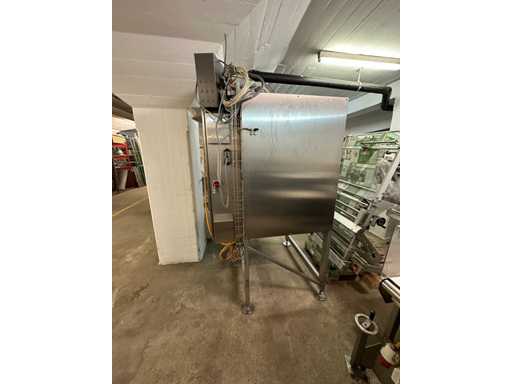

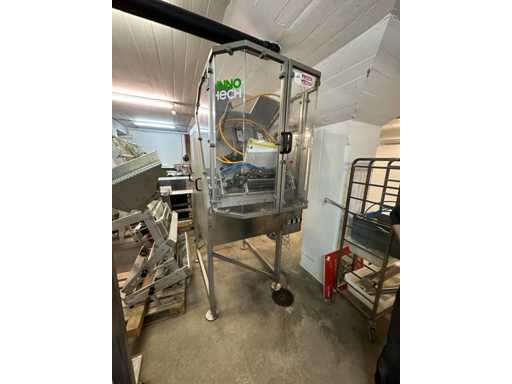

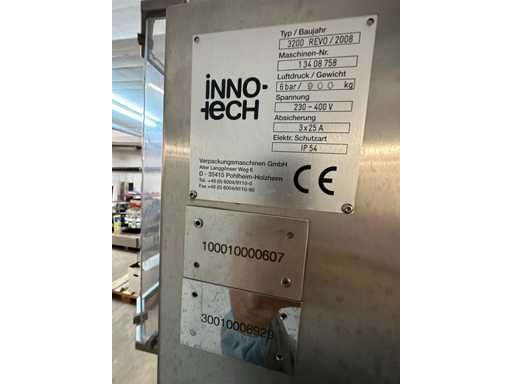

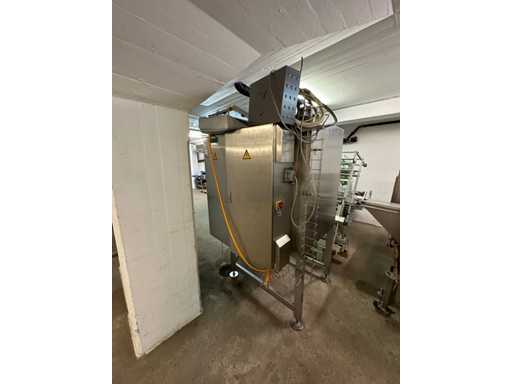

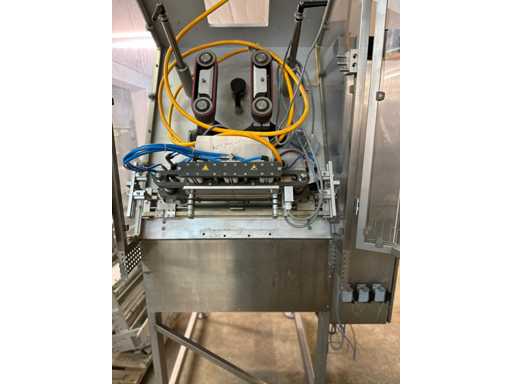

Innotech - 3200 REVO - Vertical Flow Wrapper - 2008 c-1

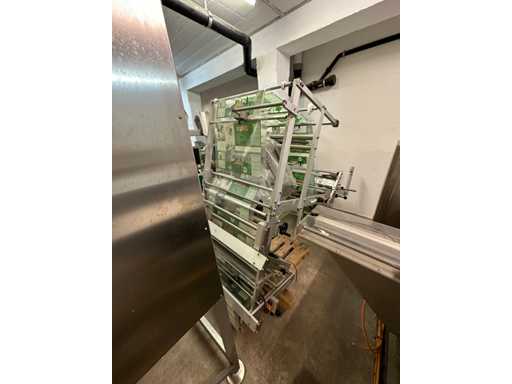

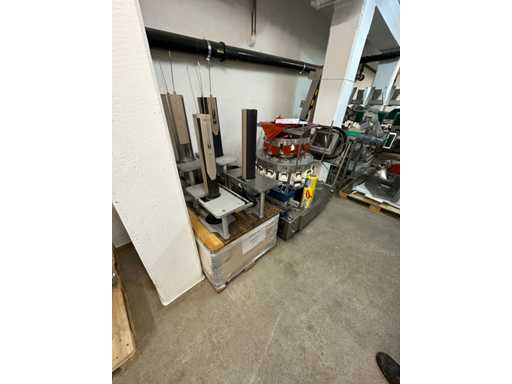

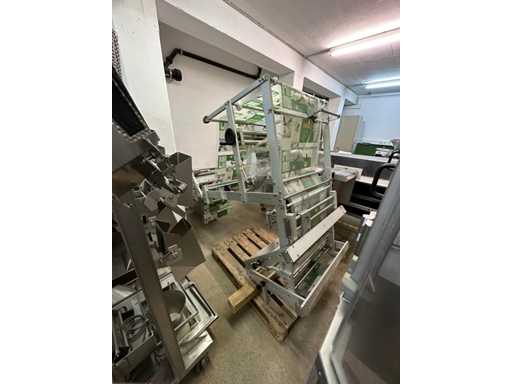

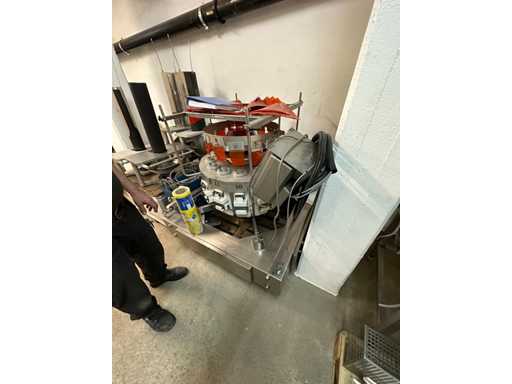

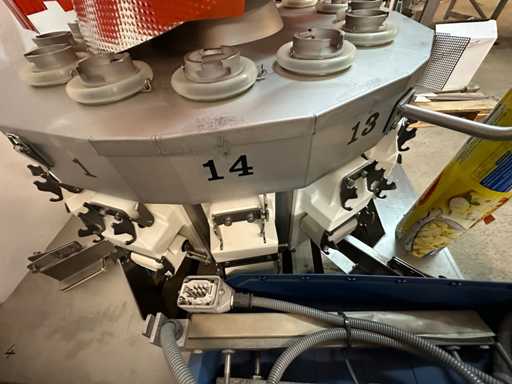

this lot belongs to the combination lot number 1 with 14-head weigher and Yamato packaging system In the packaging machine, tubular bags are produced as flat bags as standard. Machine data Stuffing: frozen pasta (pasta in different varieties) Filling volume: max. 10 litres Packaging Material: Thermoplastic Film Machine power: 120 cycles: The machine output depends on the feeder, the film, the product and the production conditions. Consumption values for welding strips Working pressure: 2.5 to 5 bar Angle value: 140 to 170 degrees Effective time (depending on film thickness): 0.1 to 0.25 sec. Film thickness: approx. 20-120um Film roll diameter: max. 600mm Foil inner diameter 76mm Film roll width: approx. 610mm Follion weight: approx. 100kg Bag Dimensions Bag width min/max: 50 to 320 mm Bag length standard: 500mm
