2020 B3RT Submersible Motor Agitator on Guide Scope with Jet System

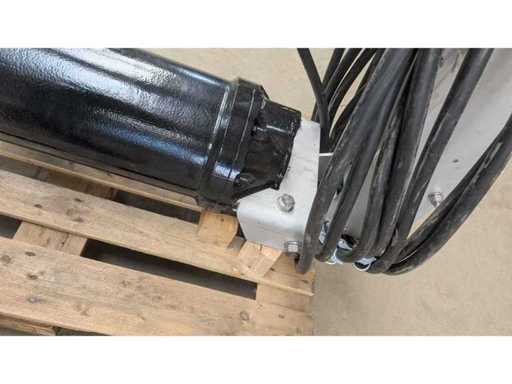

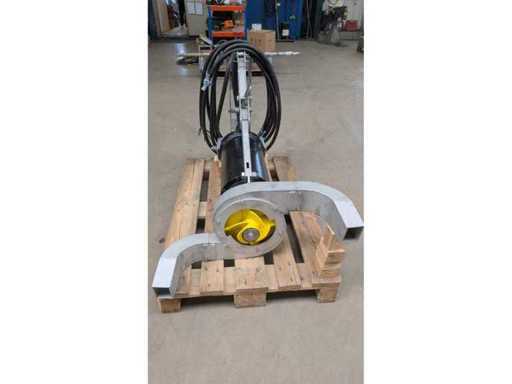

Manufacturer: B3TR Submersible motor agitator on the guide scope with jet system Year of Make: 2020 Power: 18.5 kW Rated current: 37.5 A Speed: approx. 1,450 rpm Wing diameter: 250 mm Conveying/circulation capacity: approx. 4.0 m³/min Robust submersible motor agitator for slurry, biogas and industrial applications Streamlined, gearless submersible motor Acid-resistant epoxy coating Stainless steel jet housing with two nozzles for high stirring jet Pressure plate with cutting edges for crushing fibre and straw residues Effective destruction of sinking and floating layers Can also be used at low levels Suitable for medium temperatures up to 60 °C Stainless steel guide scope bracket with tilt adjustment up to 30° Includes transport bracket and sliding plates with castors Adjustment via winch 15 m connection cable with large cable cross-section Additional cable protection in the agitator area 3-fold thermal winding protection Integrated gasket leak sensor Additional oil chamber with sealing leak probe Low-maintenance design
