WORKING PROCESS SAPIENS 1001 Carpentry machining centre
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- WORKING PROCESS
- Type
- PROCESS SAPIENS 1001
- Year of build
- 2005
- Machine weight
- 3600kg
- Dimension l
- 5710mm
- Dimension w
- 2600mm
- Dimension h
- 2075mm
- Terms of delivery
- Loaded on truck
Description
General description

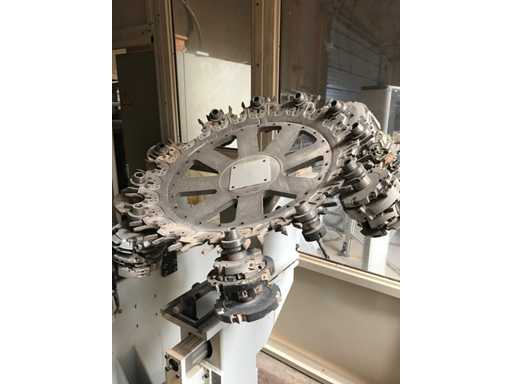

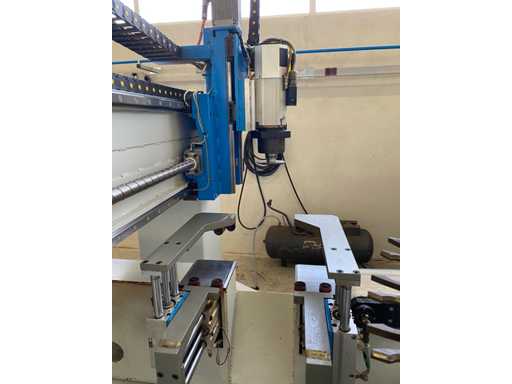

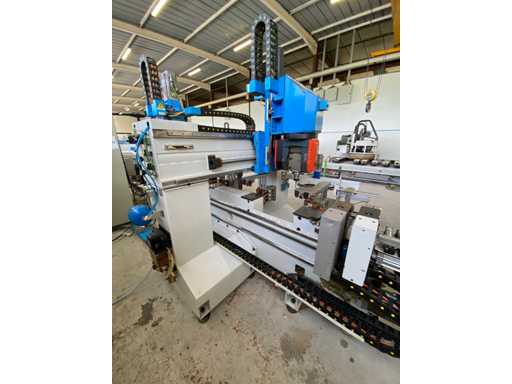

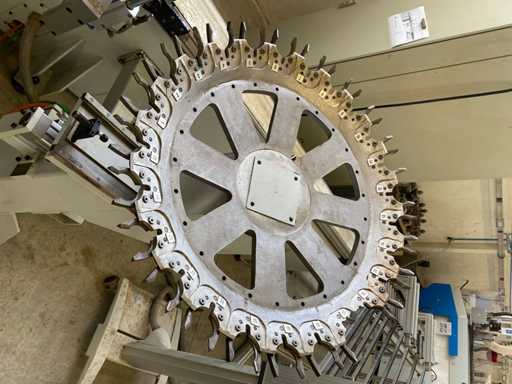

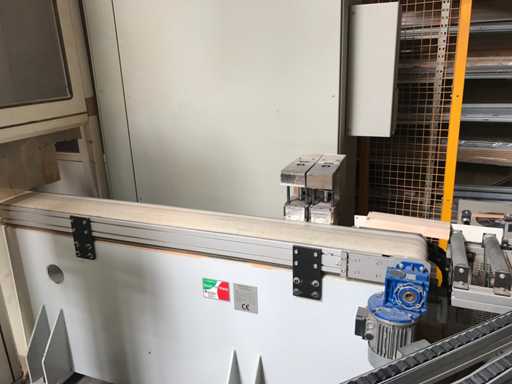

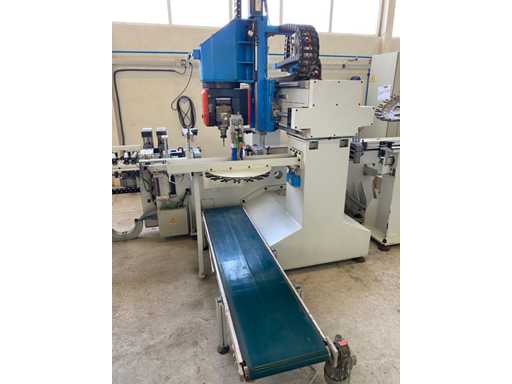

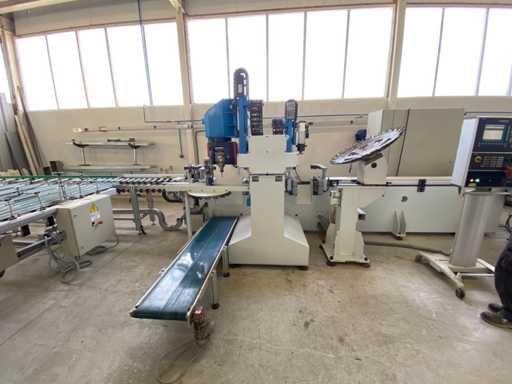

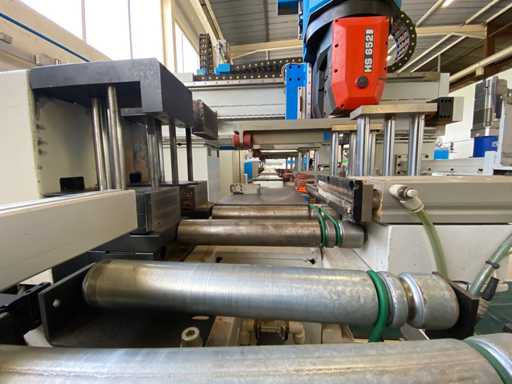

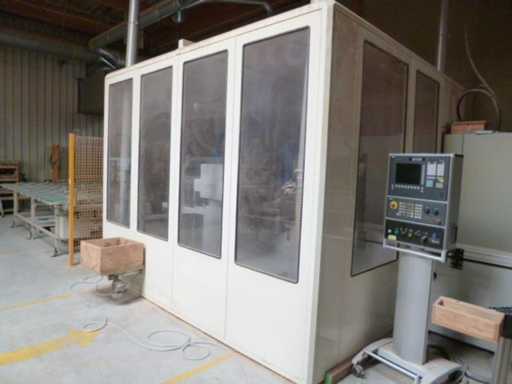

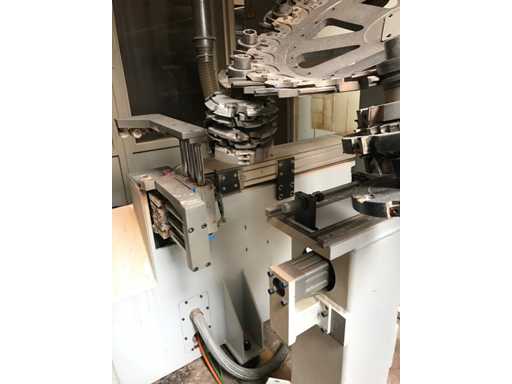

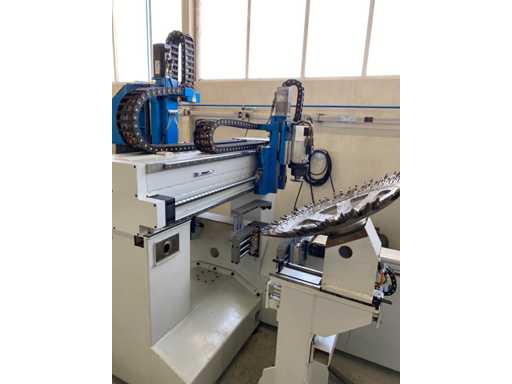

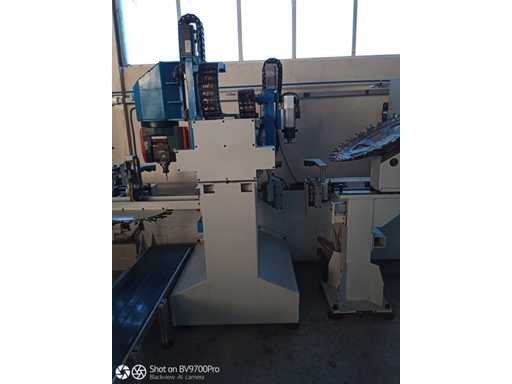

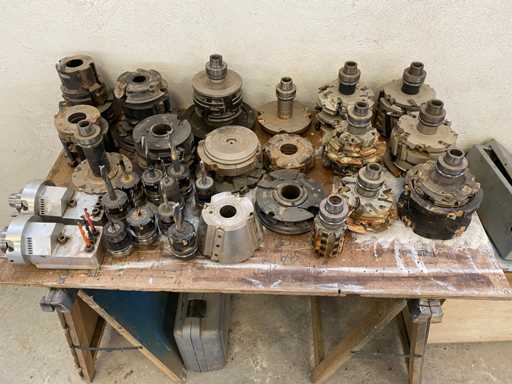

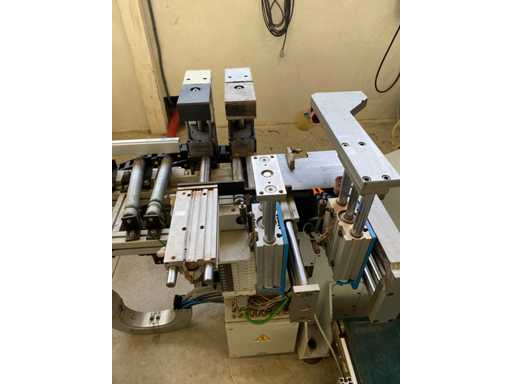

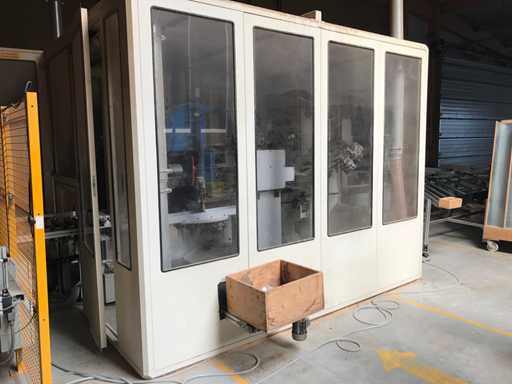

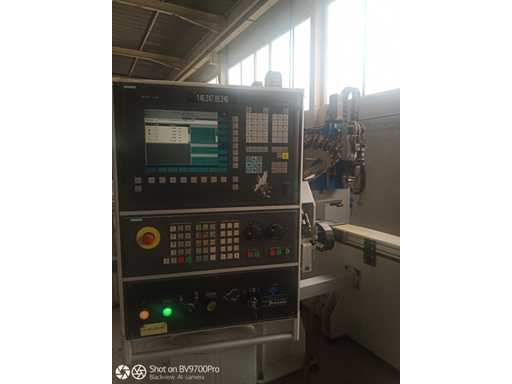

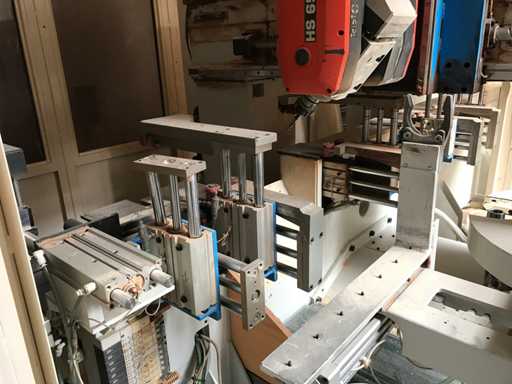

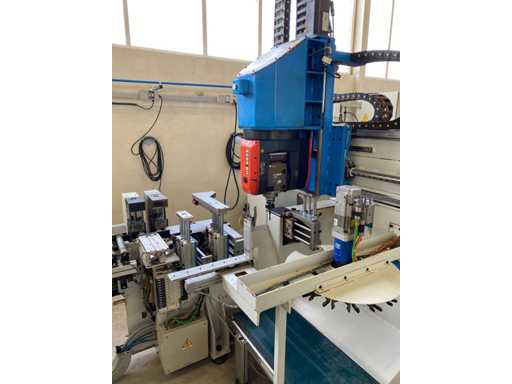

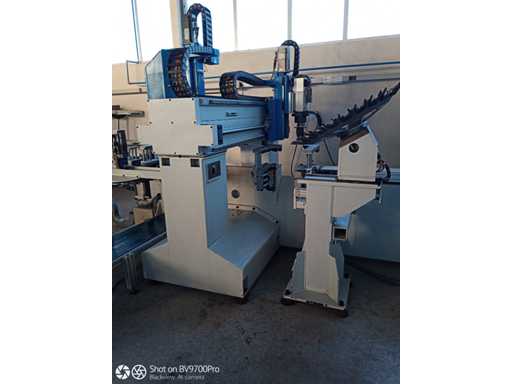

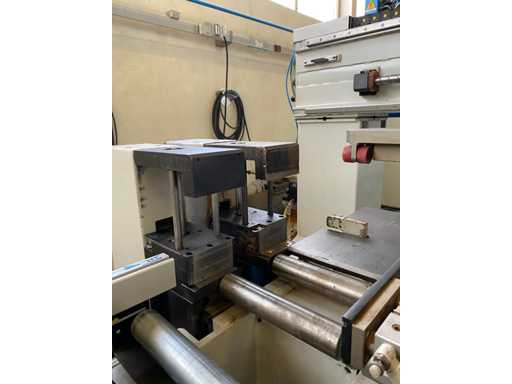

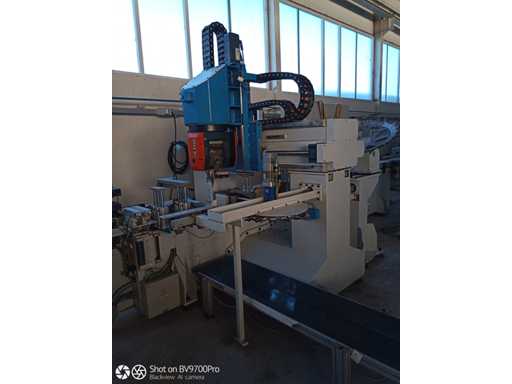

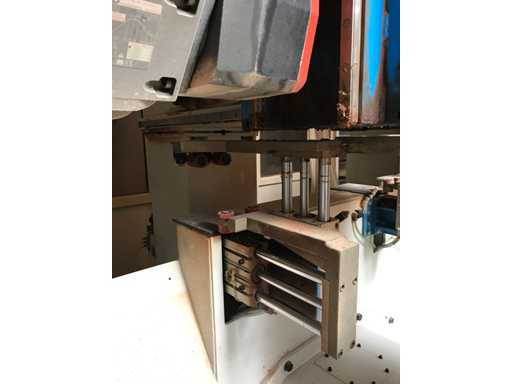

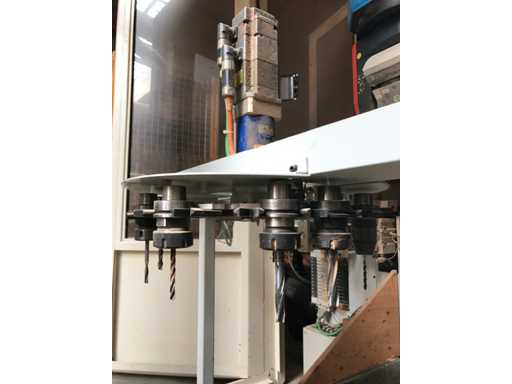

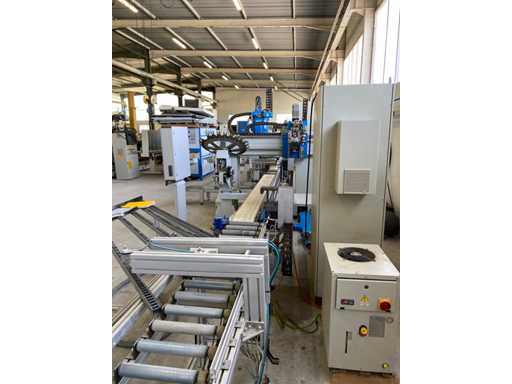

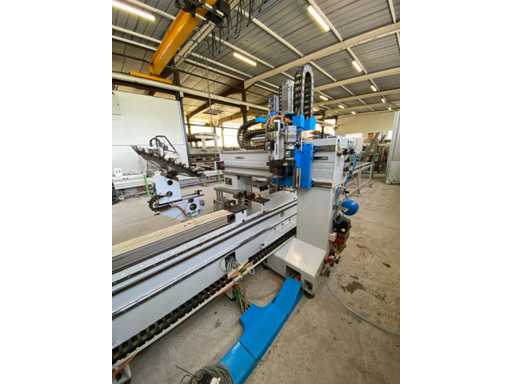

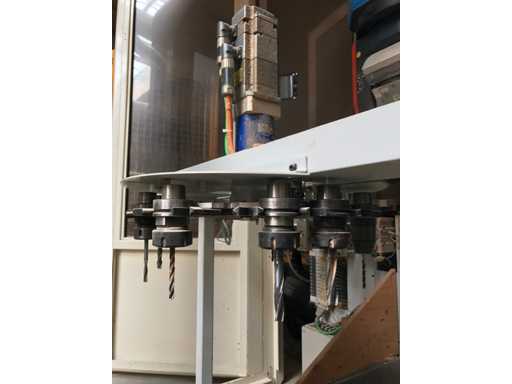

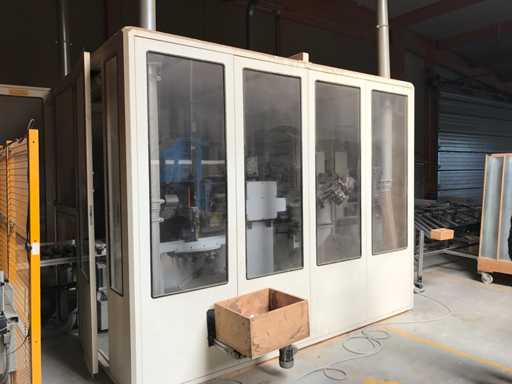

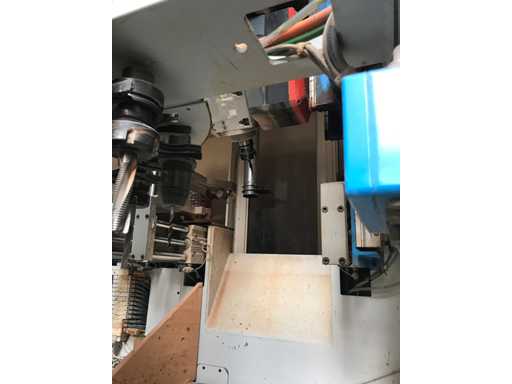

Sapiens 1001 TFF machining center dedicated to sawing, drilling and machining components for windows/doors. Fixed gantry structure with crossbar on rigid columns. Pneumatic devices for automatic positioning of parts. Double work area with electronically controlled clamps (X1/X2). Two spindles with Y/Z axes, slewing heads and tool magazine (16+16+1). Soundproof enclosure. User-friendly interface and optimized security.
Technical details
Workpiece section: min 30x18 mm / max 230x140 mm
Length: 300 to 2800 mm
Strokes: X 4735 mm / Y 1235 mm / Z1,300 mm / Z2,405 mm
Axis speed: X 120 m/min / Y 60 m/min / Z 45 m/min

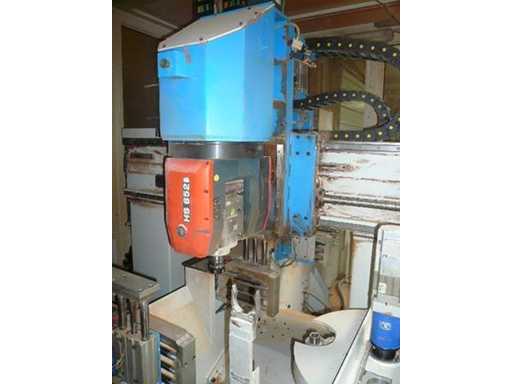

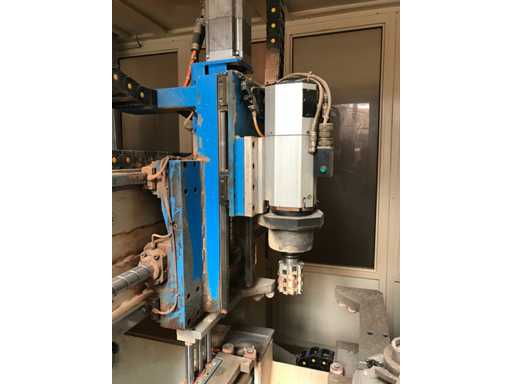

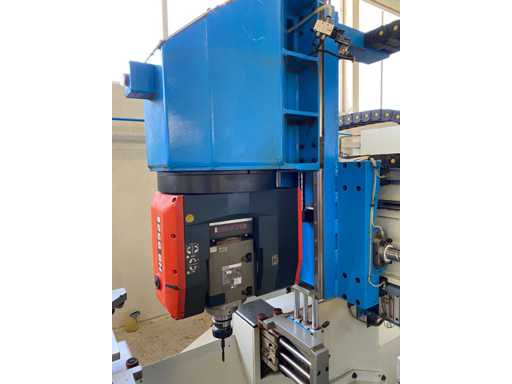

Pins: 10 kW + 12 kW, HSK F63, 12,000-18,000 rpm

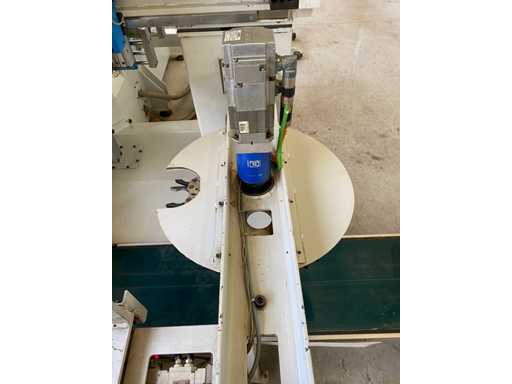

Saw blade: Ø max 450 mm, flange 140 mm
Working height: 960 mm
Pressure: 5 bar / Thrust: 720 N
Weight: approx. 3600 kg
Colours: RAL 7035 / RAL 5015
Dimensions: 5710 x 2600 x 2075 mm
Included accessories

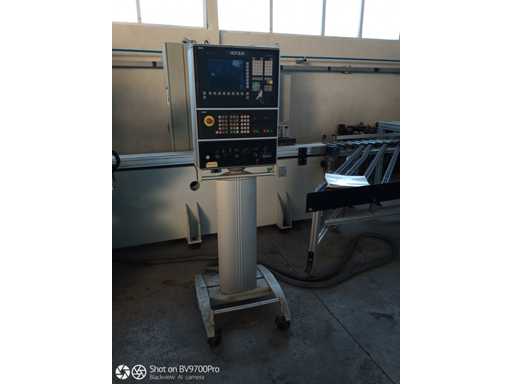

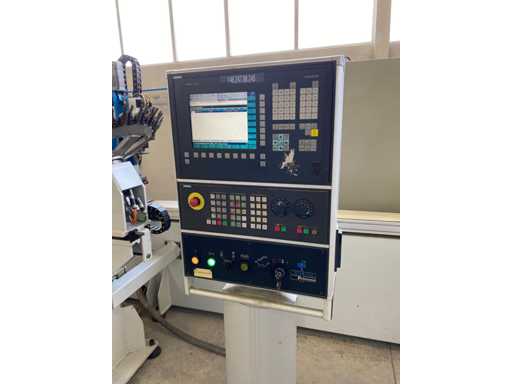

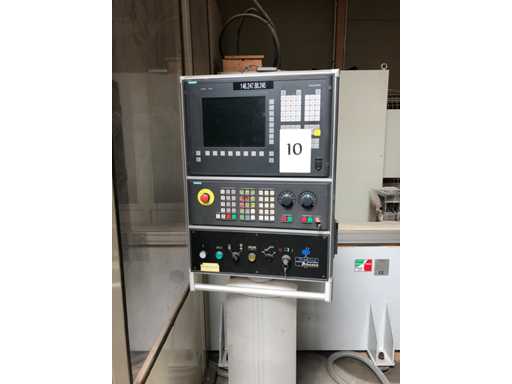

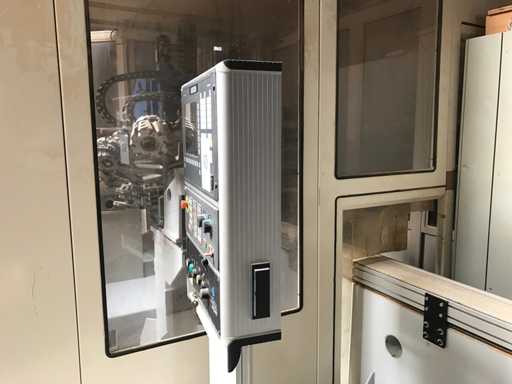

Central lubrication, double tool clamping, electromagnetic safety cover, automatic changer, hanging console, suction Ø120/100 mm
Condition and location
Very good overall condition, complete with documentation. Available immediately on site.
Additional details
The dimensions and weights indicated for each batch are provided as a guide and correspond to the current configuration (assembled) of the equipment. Disassembly, handling or packaging can change these values and affect the conditions of transport. Before booking any transport, buyers are invited to check the real specificities of their lots directly with the seller or the company in charge of dismantling in order to guarantee a suitable delivery.
