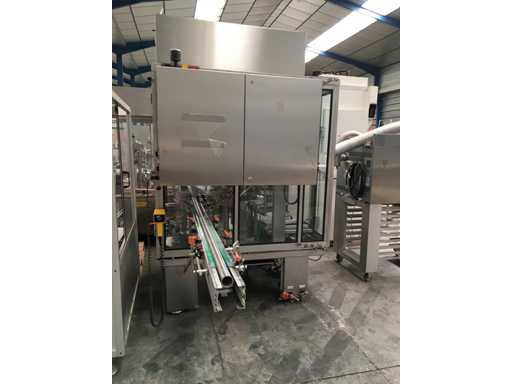

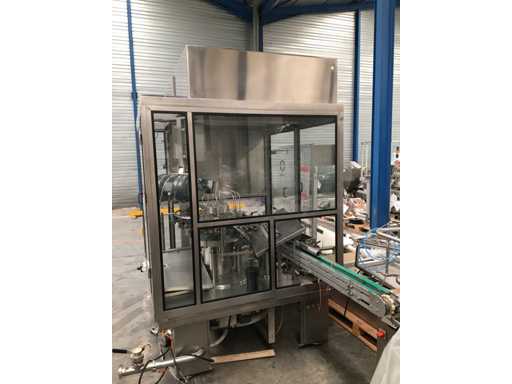

Perrier - 2004 - MFG 9 - Washer-Blow Moulder

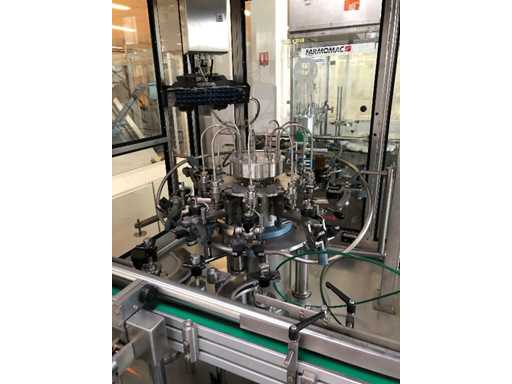

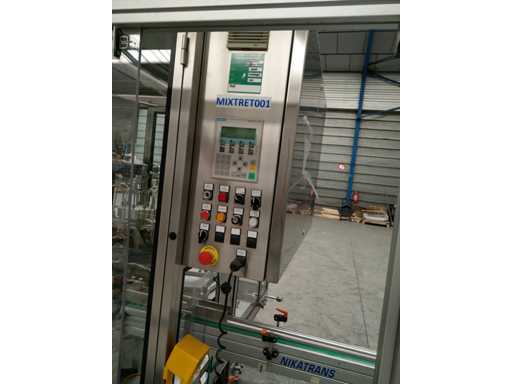

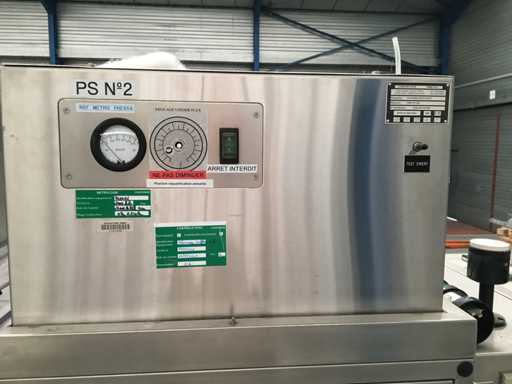

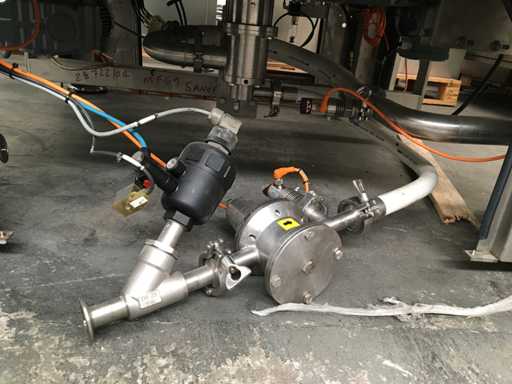

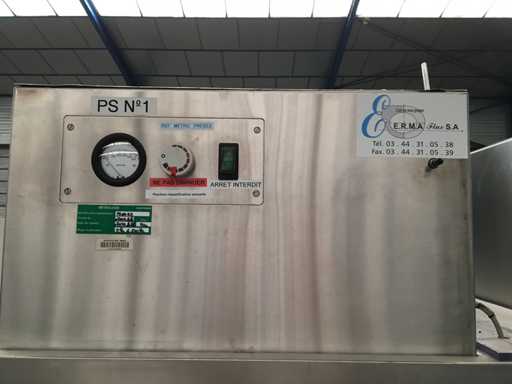

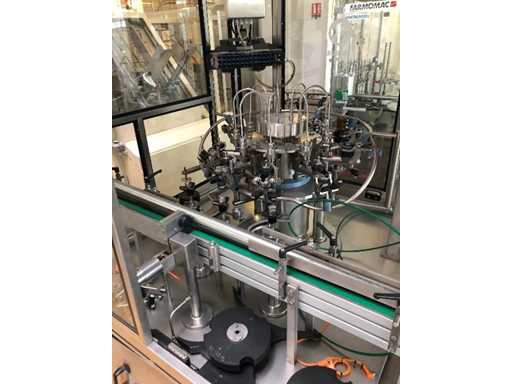

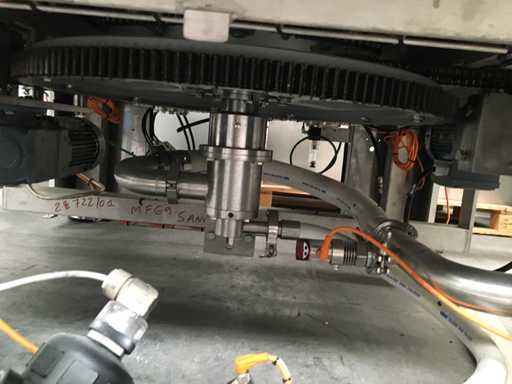

Serial Number: 2898 Operation: Insufflation + resuction Direction: Left to right Bottle grip height: 30 to 230mm Throughput: 50 FPM Rinsing fluid: Water, steam, sterile air, sterilizing solutions Sanitization function for bottle sterilization Rotating carousel with 9 stations equipped with a clamp for picking up the bottle DN25 fluid supply circuit equipped with an electro-pneumatic valve, a pressure sensor, a detector to adapt the insufflation pressure and a rotary joint at the bottom of the carousel DN51 stainless steel fluid recovery circuit 180° mechanical bottle turning system by forks and circular ramp 1 size for 100ml glass bottle Ø Cannula Jet: 2mm Two ERMAFLUX laminar flows, type PSM FFU12/6 1 SIEMENS SIMATIC OP7 HMI SIEMENS S7-300 PLC 2 SEW-USCOME engines type S37 DR63L4 SIMCO AS-20 Fan Ionizer Belt width: 180mm Conveyor height: 1000±50mm Compressed air: 2 bar – 8.1Nm3 Insufflation volume: 2.7L Overall Dimensions (LxWxH): 3850x1850X2470mm Power supply: 400V, 50Hz, 25A, 4.4kW Incoterm: EXW Ref. 4729
