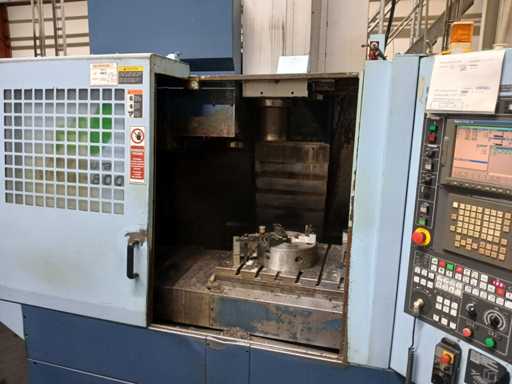

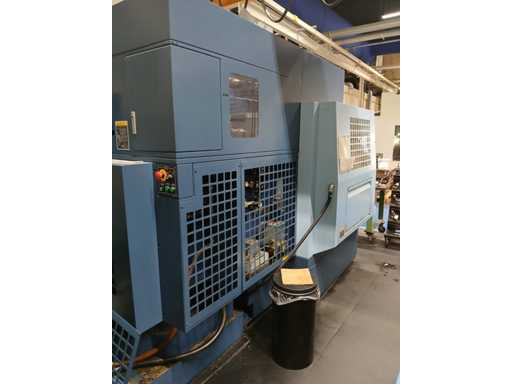

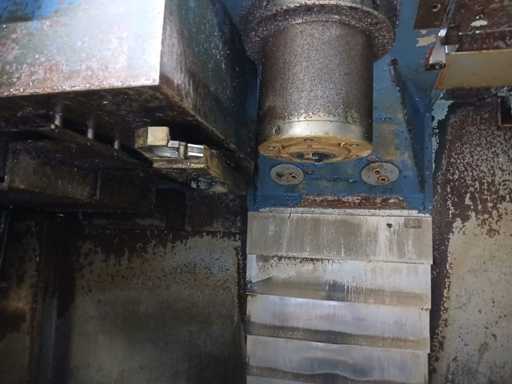

Matsuura - 2003 - V Plus 800 - CNC milling machine
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- Matsuura
- Type
- V Plus 800
- Year of build
- 2003

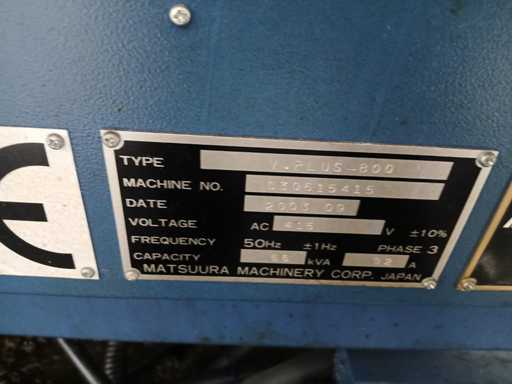

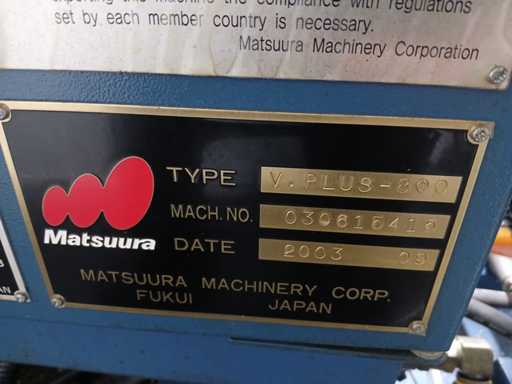

- Serial number
- 030615415
- Travel x-axis
- 800mm
- Travel y-axis
- 550mm
- Travel z-axis
- 500mm
- Taper
- 7/24 taper JIS BT40
- Workpiece weight max.
- 10kg
- Coolant pump
- Yes
- Chip conveyor
- Yes
- Engine power (kW)
- 66kW
- Electric connection
- 400V
- Machine weight
- 6000kg

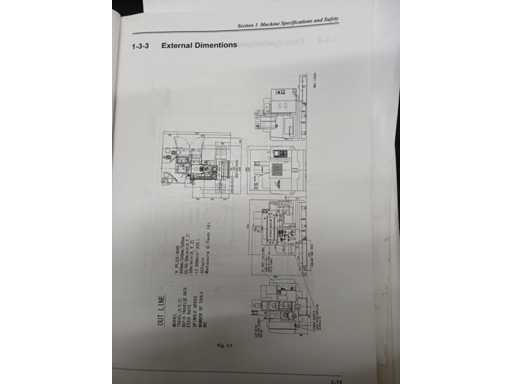

- Dimension l
- 2600mm
- Dimension w
- 3778mm
- Dimension h
- 2820mm
Description

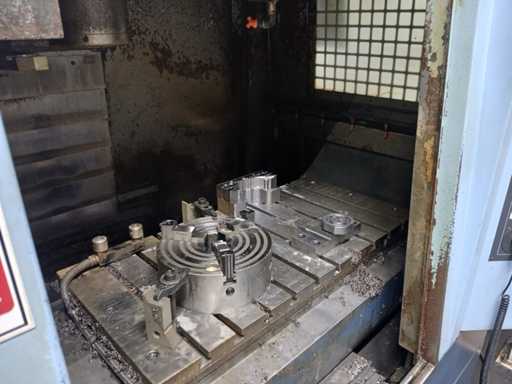

Includes: Full Housing & Top Cover, ATC Magazine Cover, ATC Auto Door, Synchronized Tap Function, AD-TAP Function, IPC Function, Spindle Oil Cooler, Refrigerant Unit (Rear Chip Discharge), Lubrication Unit, Spindle Overload Protection, 9 Types of M Code Counters, Work Light, Chip Discharge (Y-Axis Cover and Side Trough), Coolant Nozzle Unit, Working Surface mm 1,150 x 550, Max Tool Length mm 350, 10.4" Color LCD, Vertically Mounted Soft Keys, Compact Flash port, PC file management structure.
Remarks
Machine is still set up at the seller's, machine must be professionally dismantled after purchase. Costs of dismantling, and relocation from setup for buyer. An industrial moving company is located along the seller's location, which can be contacted if necessary. Costs for buyer. Machine can be transported outside for further loading without obstacles.
Additional details
The collection of the purchased goods is done as follows:
After receiving your payment, the seller will contact you to make a pick-up appointment. You will then receive the exact address.
The city and province where the plots are located is indicated with the plot.
The minimum age for visiting the collection days is 18 years. Visitors must be able to identify themselves.
There is no right of withdrawal. See the Auction Terms and Conditions for more information.
No viewing day will be organized for this auction.
For each lot, an administration fee of € 100 will be charged.
Videos

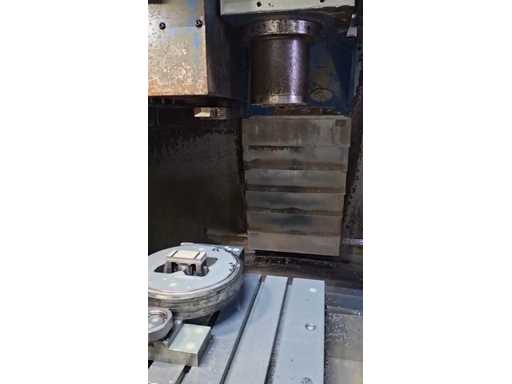

See the details and take a closer look at the item in this video.
