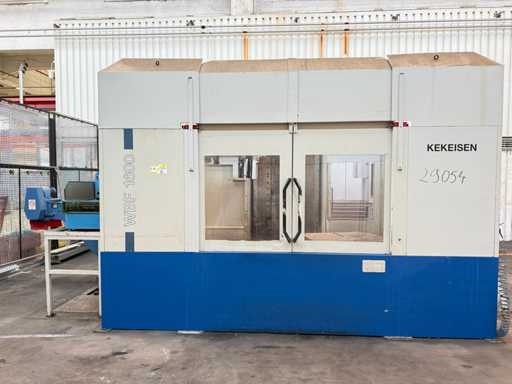

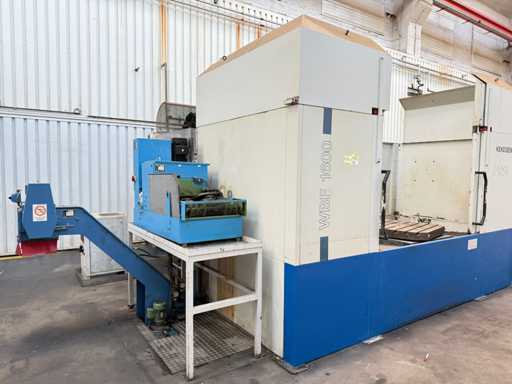

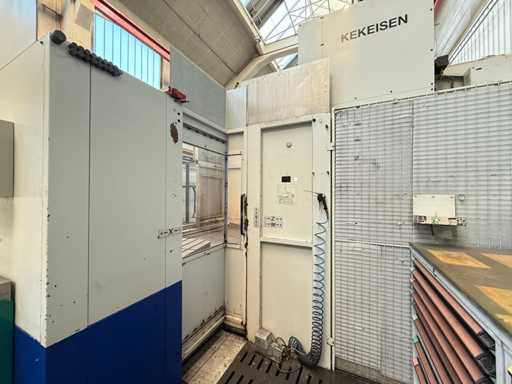

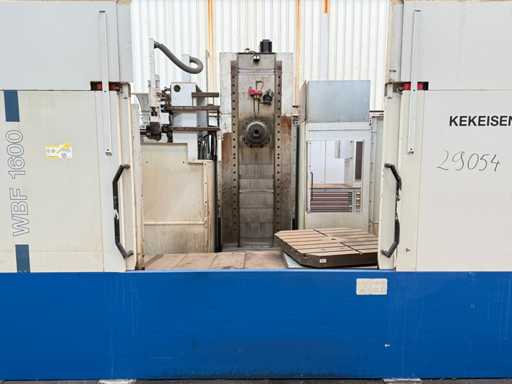

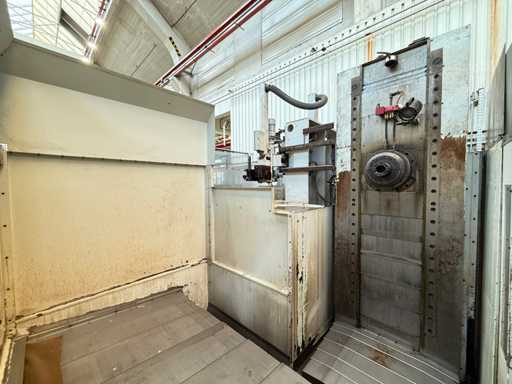

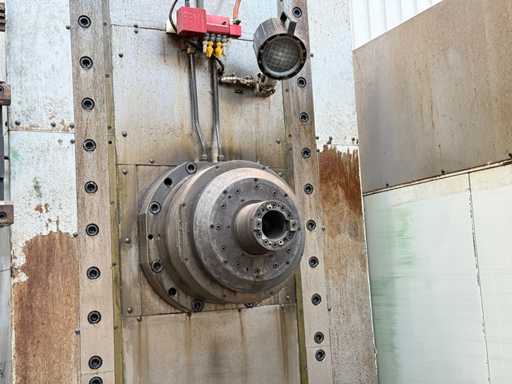

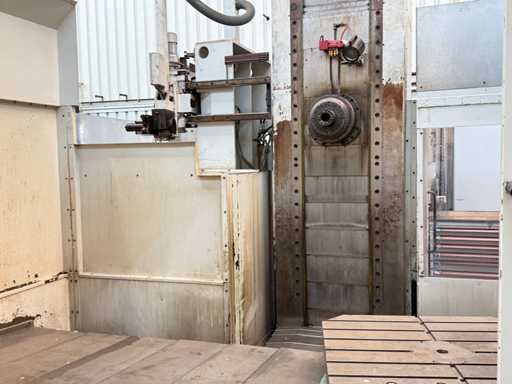

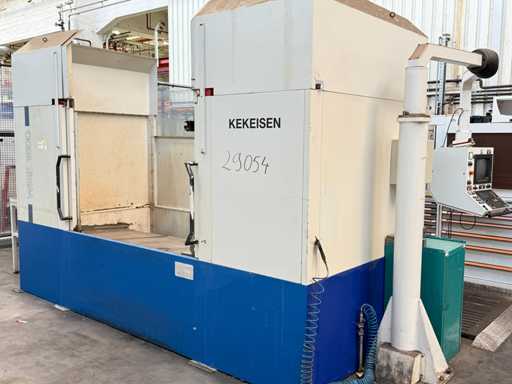

KEKEISEN - WBF 1600 - CNC horizontal boring and milling machine
- Current bid
- Status
Lot specifications
- Quantity
- 1
- Margin
- No
- Brand
- KEKEISEN
- Type
- WBF 1600
- Year of build
- 1997

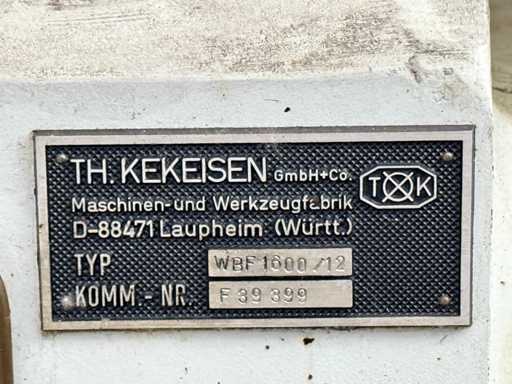

- Serial number
- F39 399
- Travel x-axis
- 1600mm
- Travel y-axis
- 900mm
- Travel z-axis
- 1200mm
- Machine weight
- 20000,00kg
- Dimension l
- 5600mm
- Dimension w
- 4200mm
- Dimension h
- 3800mm
- HS Code
- 84593100
- Terms of delivery
- Loaded on truck
Description

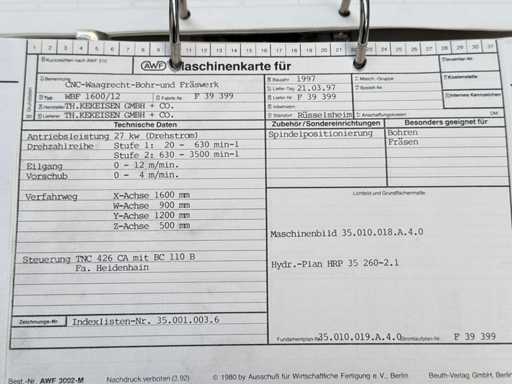

Inv.Number: 29054
Drive power: 27kW (three-phase current)
Speed series stage 1: 20-630 min-1
Speed series stage 2: 630-3500 min-1
Rapid traverse: 0-12 m/min
Feed Rate:0-4m/min

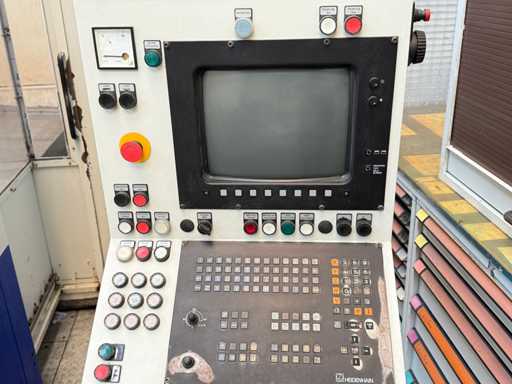

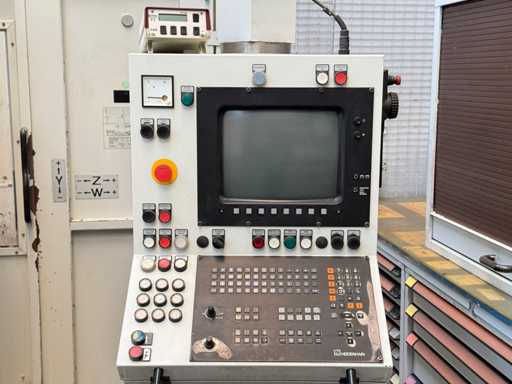

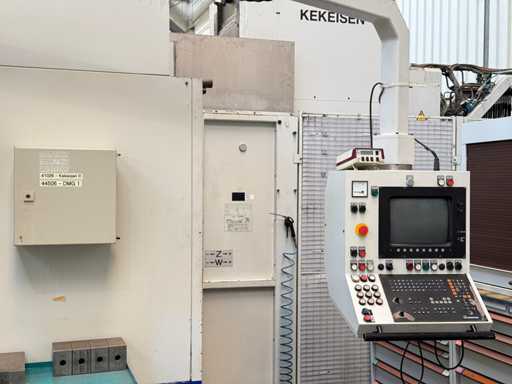

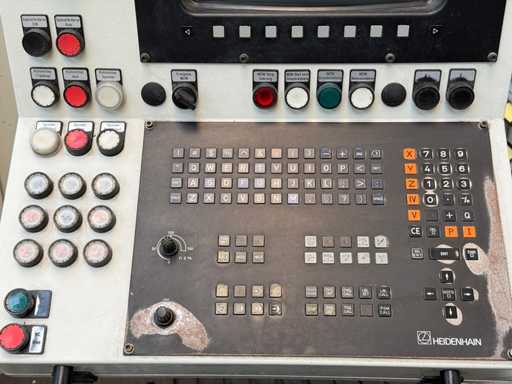

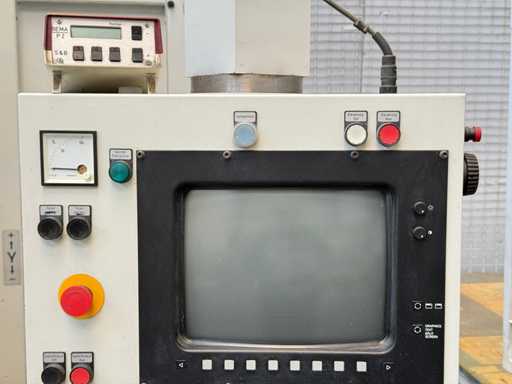

Control: TNC 426 CA with BC 110 B, Heidenhain

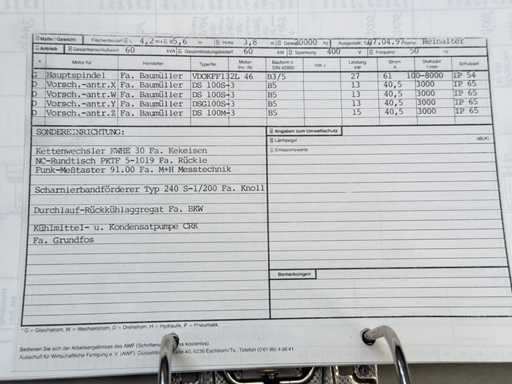

Special equipment:
- Chain changer KWHE 30 Fa. Kekeisen

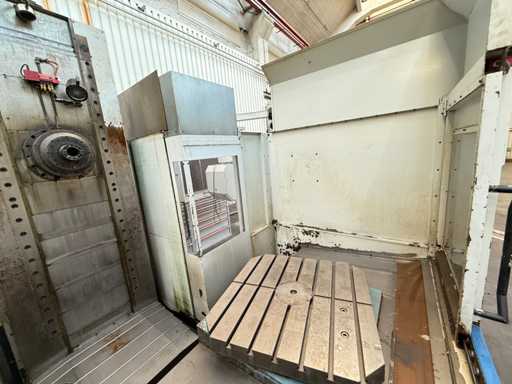

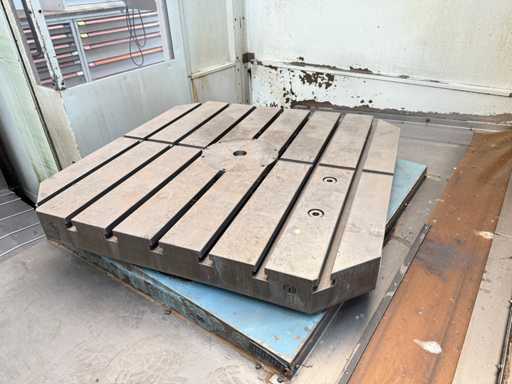

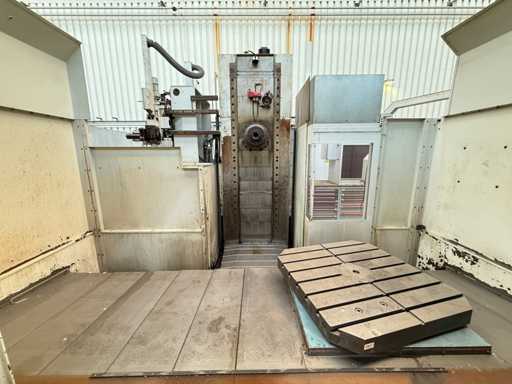

- NC rotary table PKTF 5-1019 Fa Rückle

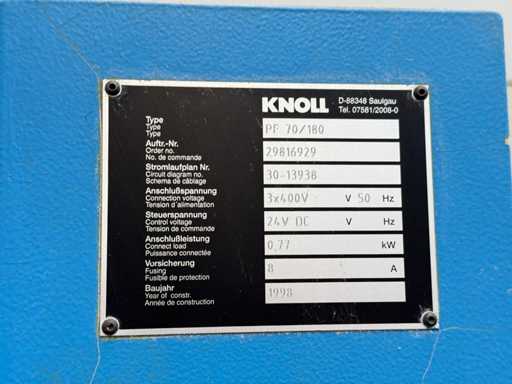

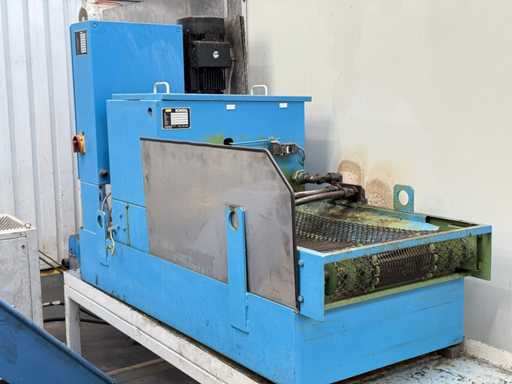

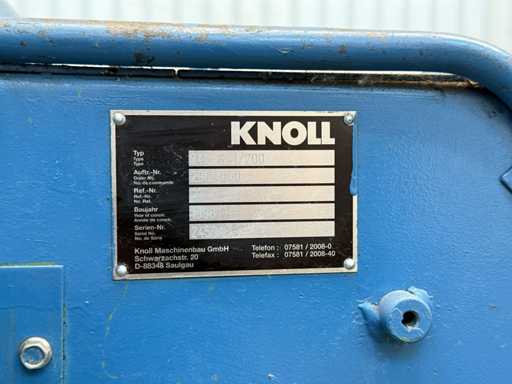

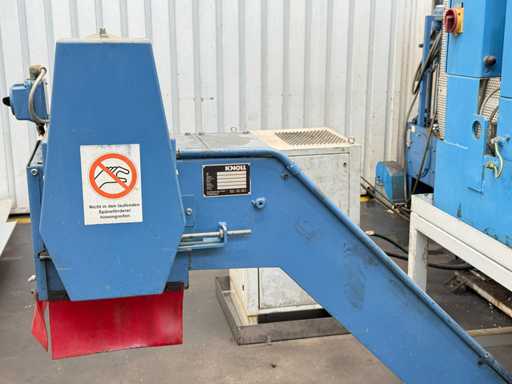

- Hinged belt conveyor type 240 S-1/200 by Knoll

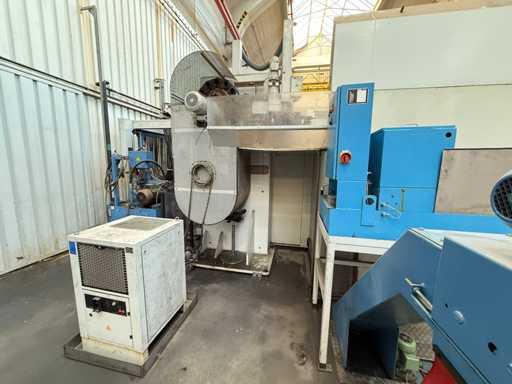

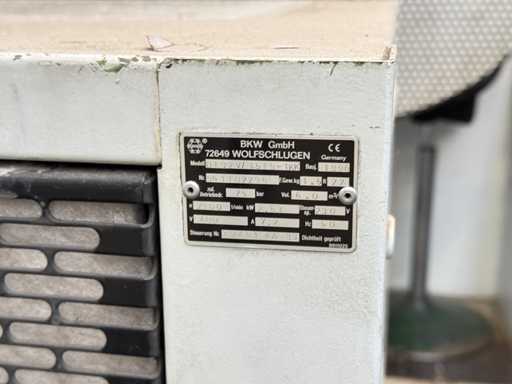

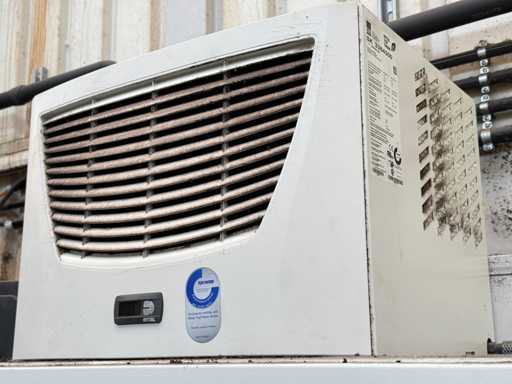

- Continuous recooling unit BKW
- Coolant & Condensate Pump CRK, Grundfos

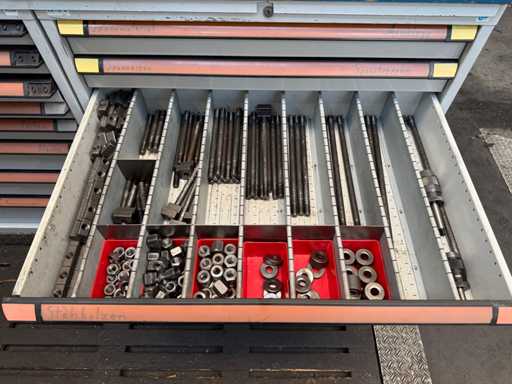

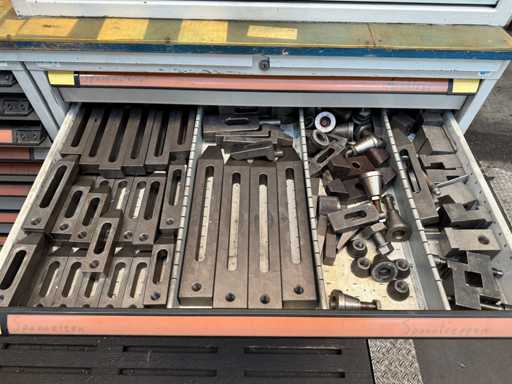

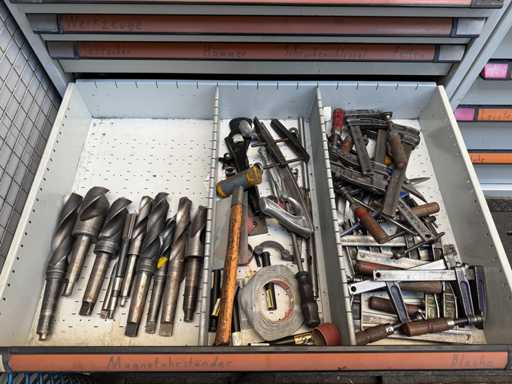

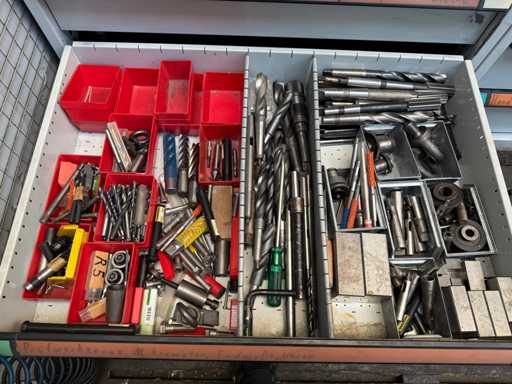

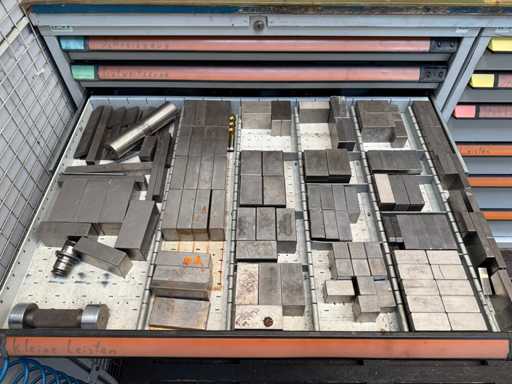

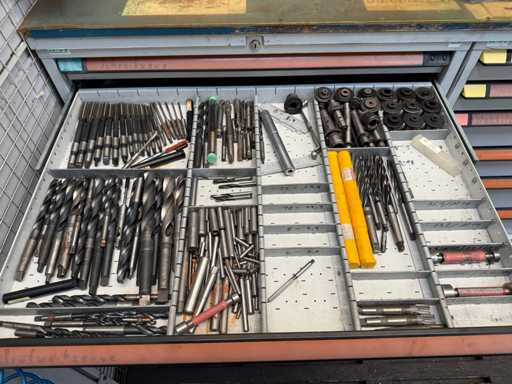

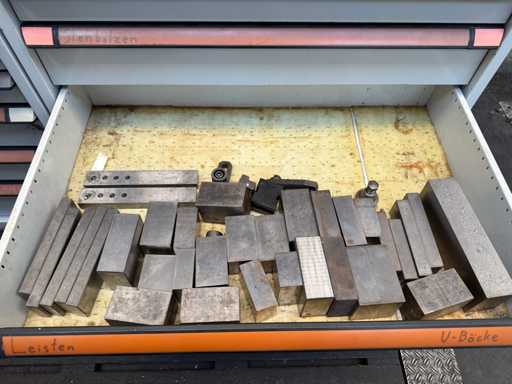

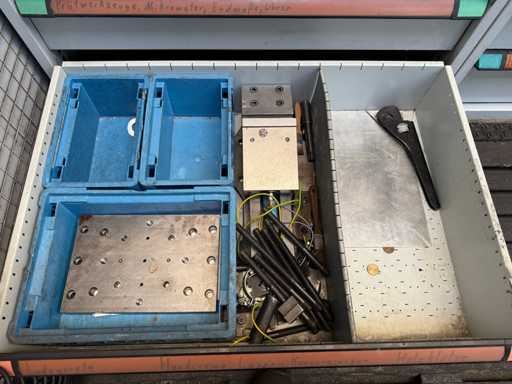

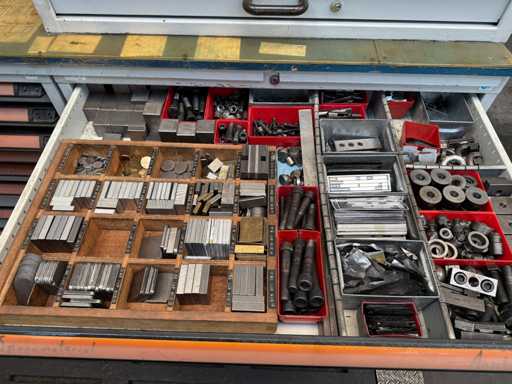

Incl. 2 drawer cabinets with accessories (see photos)
Additional details
All items are sold as used and uninspected unless otherwise noted.
Viewing appointment is possible on 04.12.2025. Please note that a viewing is only possible by appointment at a.decastro@tbauctions.com.
Pick-up possible in the following period:
12.1-15.1./ 19.1-22.1./26.1.-29.1.2026
Please note: Pick-up is not possible on public holidays and weekends.
Please refer to the item description.
For more detailed information on guarantee and warranty, please refer to the auction conditions.
